Pinarello Dogma F road bike with SRAM Red AXS 12-speed Princeton, Peak 4550 DB H103, Luxter Blue Shiny

The Dogma F Disc Pinarello is the ultimate high-end bike. Constructed from TorayCa M40X carbon and a revolutionary new fibre, the frame is designed to be lightweight and responsive, whilst offering exceptional lateral stiffness. The entire frame has been redesigned. This includes the down tube, which has been reduced in size to improve aerodynamic performance, and the head tube, which has been tapered for a sleeker design. The seatpost is integrated into the frame to reduce the overall weight, whilst the Onda fork – which is slimmer and raked – improves handling. The Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.

This Pinarello Dogma F Disc H103 Luxter Blue Shiny is fitted with the SRAM Red AXS 12-speed electronic groupset. Finally, the Princeton Peak 4550 wheels guarantee exceptional efficiency and responsiveness, enabling you to achieve the best possible performance on all terrains, whether in the mountains or on the flat.

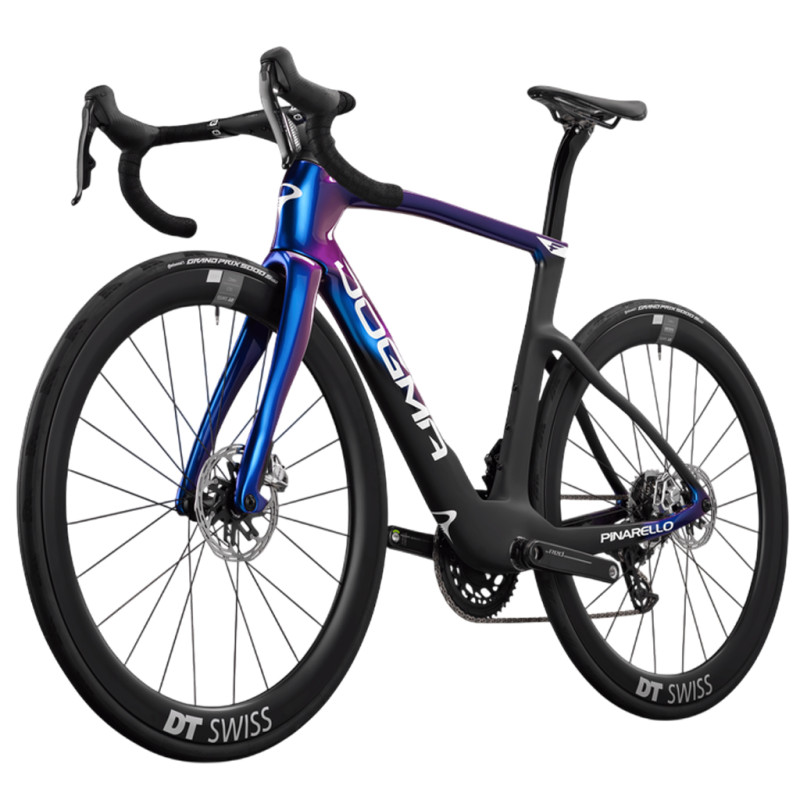

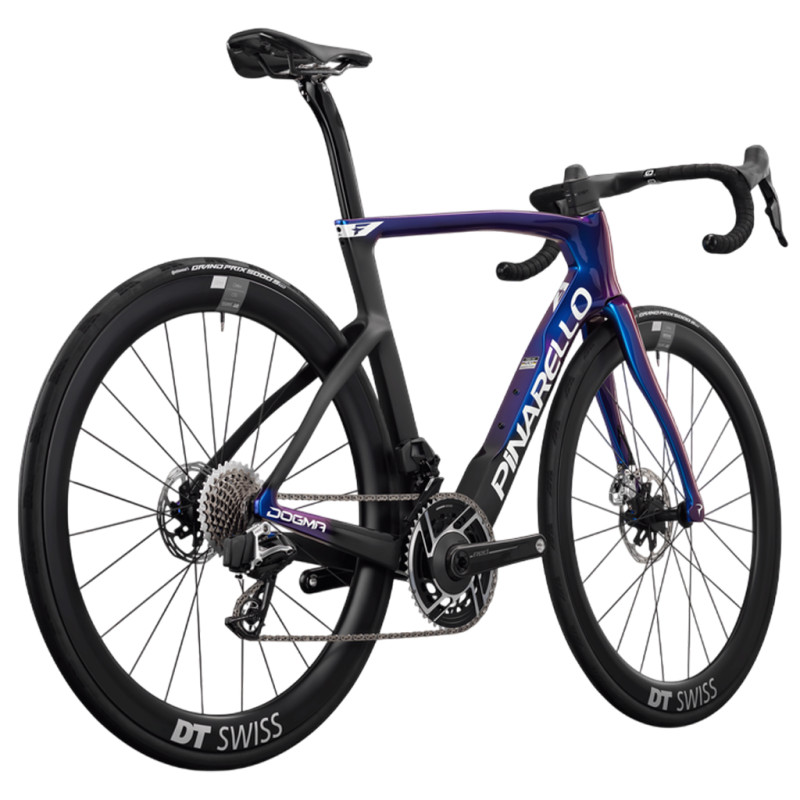

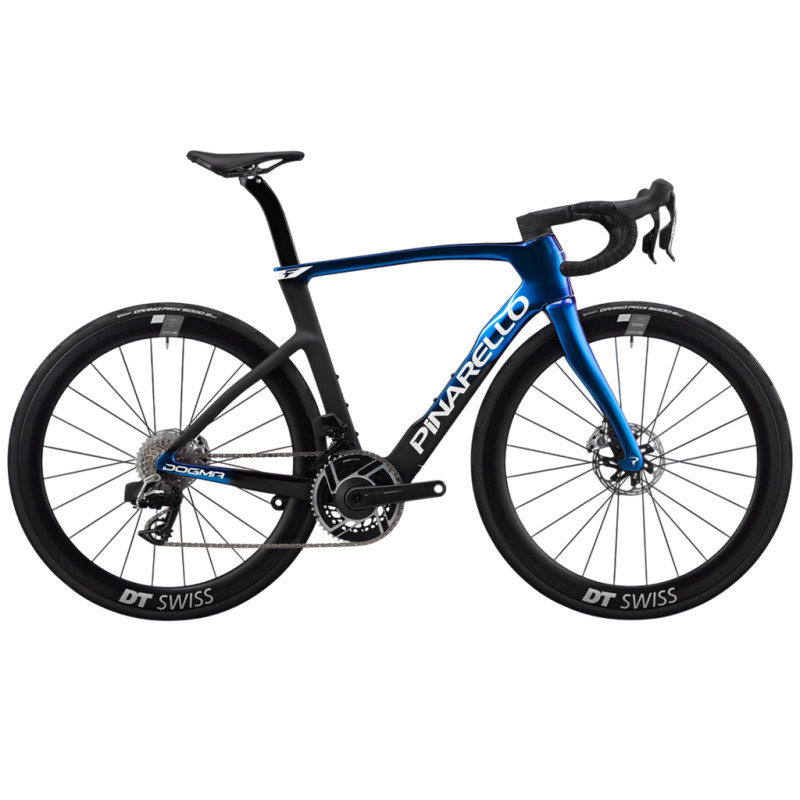

Please note that the photo is for illustrative purposes only; this bike is fitted with Princeton Peak 4550 wheels.

Technical Specifications:

Frame:
- Frame: TorayCa M40X, TiCR cable routing
- Fork: New eTICR Onda with Forkflap, 1.5’ upper and lower pivots

Drivetrain:
- Crankset: Sram Red ETAP AXS 12v
- Cassette: Sram Red XG-1290
- Chain: SRAM Red
- Grips: SRAM Red ETAP AXS 12-speed
- Front derailleur: SRAM Red ETAP AXS 12-speed
- Rear derailleur: SRAM Red ETAP AXS 12-speed

Braking:
- Brakes: SRAM Red AXS 12-speed
- Rotors: 160mm front and rear

Components:
- Integrated handlebar-stem: Most Talon UltraFast
- Saddle: Most Lynx UltraFast Superflox L Carbon Large 145mm
- Seatpost: Pinarello Aero with 3D-printed titanium seat clamp Bottle cages: Most Trap PACF, and Elite Fly 550ml black bottle

Wheels:
- Wheels: Princeton Peak 4550
- Tyres: Continental GP5000 S TR 28mm

General information:
- Colour: H103 Luxter Blue Shiny
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)
- Brand: Pinarello

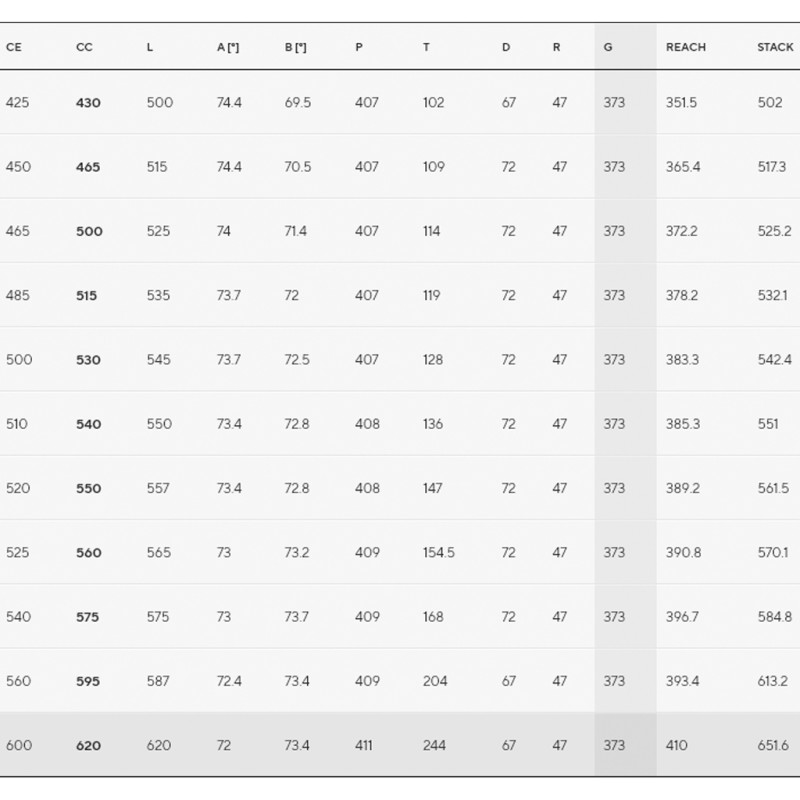

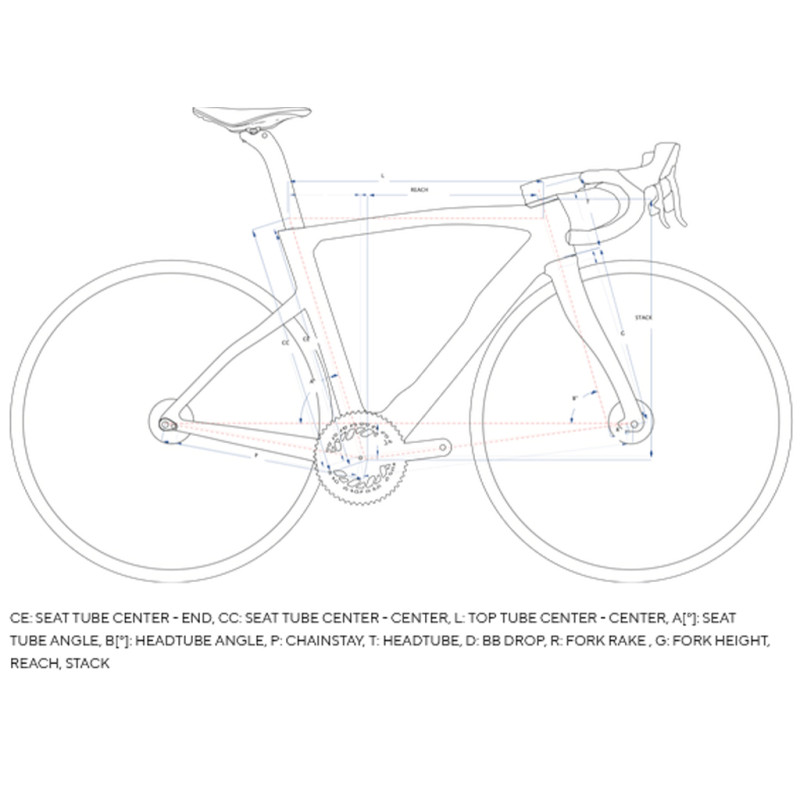

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
