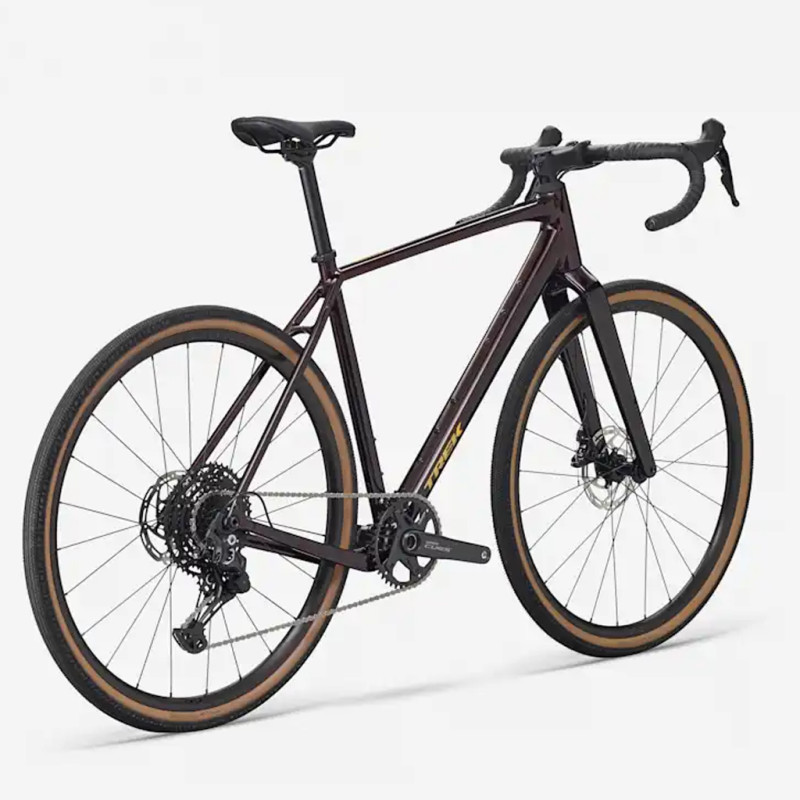

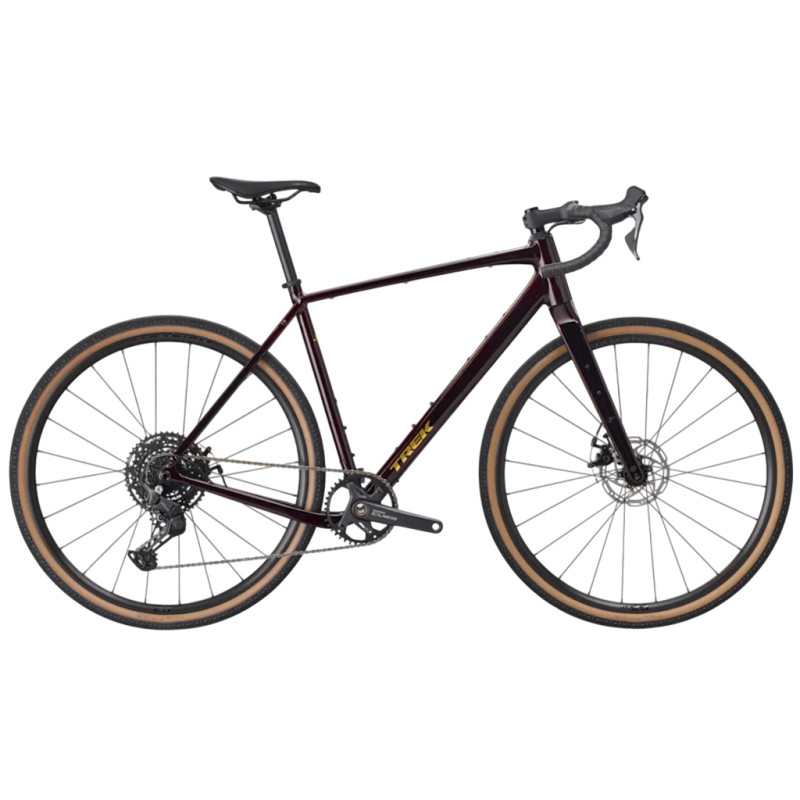

Trek Checkpoint ALR 3 3rd Gen Dark Carmine 2027 gravel bike

The Checkpoint ALR 3 3rd Gen Trek is an aluminium gravel bike designed for adventure, bikepacking and long rides on roads and trails.

Its Alpha Series 300 aluminium frame and modern endurance geometry offer an excellent balance between comfort, stability and performance. The full-carbon fork helps to filter out vibrations and bumps on rough terrain.

Its Shimano CUES 10-speed drivetrain with an 11-48 cassette provides a wide range of gear ratios to tackle both fast-paced sections and climbs. The Tektro C550 dual-piston mechanical disc brakes provide reliable and easy-to-use braking on a variety of gravel terrains.

The Bontrager Paradigm 23 Tubeless Ready wheels are fitted with Bontrager Girona Comp tyres in 700x42 mm. The frame accommodates tyres up to 50 mm without mudguards and features numerous mounting points for luggage racks, mudguards and panniers.

With its internal cable routing, thru-axles and versatile design, the Trek Checkpoint ALR 3 is ideal for exploring beyond the tarmac.

Technical specifications:

Frame & fork:
- Model: Trek Checkpoint ALR 3 3rd Gen
- Colour: Dark Carmine
- Frame: Alpha Series 300 aluminium - Cable routing: internal - Technology: 3S chain retention - Bottom bracket: T47 - Derailleur hanger: UDH - Mounts: luggage rack, - mudguards and panniers - Frame brake mounts: Flat-Mount - Rear axle: chamfered thru-axle 142 x 12 mm

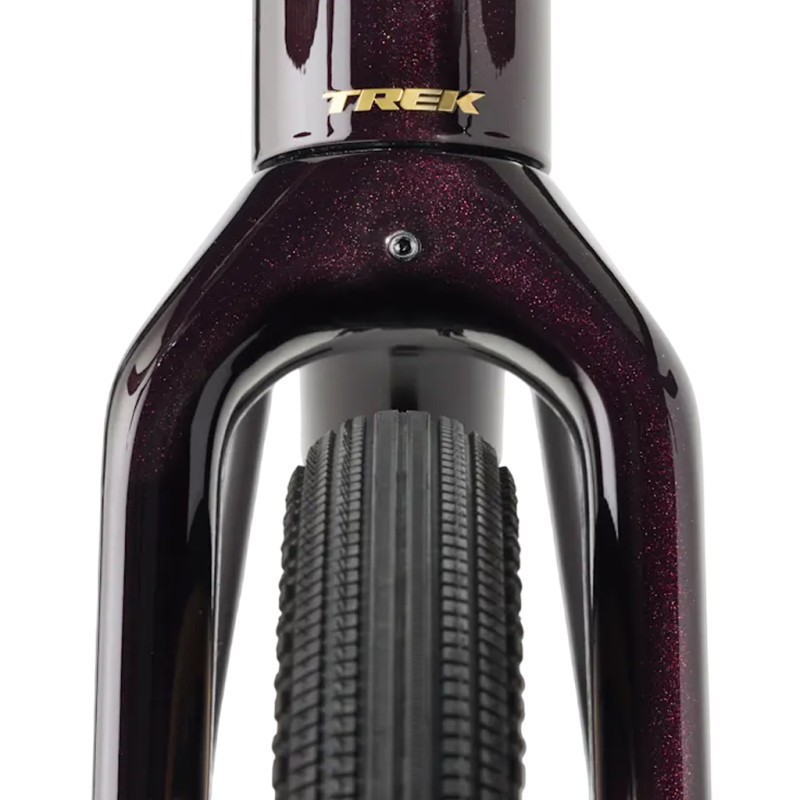

- Fork: Trek Checkpoint, full carbon - Pivot: tapered - Fork mounts: luggage rack and mudguards - Fork brakes: Flat-Mount - Front axle: thru-axle 12 x 100 mm

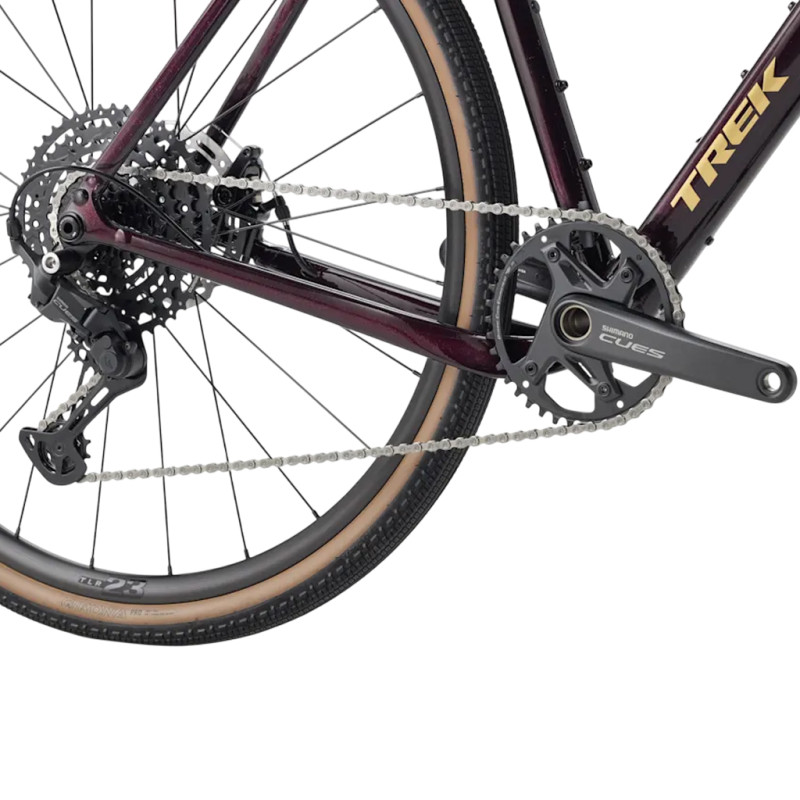

Drivetrain:
- Shifter: Shimano CUES 10 Speed STU303010R
- Rear derailleur: Shimano CUES U6000 GS - 10-speed
- Configuration: single chainring
- XS/S crankset: Shimano CUES FCU60301, 40 teeth, 165 mm cranks
- M/ML crankset: Shimano CUES FCU60301, 40 teeth, 170 mm cranks
- L/XL crankset: Shimano CUES FCU60301, 40 teeth, 172.5 mm cranks
- Bottom bracket: Praxis T47 threaded, internal bearing
- Cassette: Shimano CUES LG300 LINKGLIDE, 11-48, 10-speed
- Chain: Shimano LG500 - 10-speed
- Maximum chainring size: 44 teeth in 1x / 46-30 in 2x

Wheels & tyres:
- Rims: Bontrager Paradigm 23, Tubeless Ready, 24 holes - Rim width: 23 mm
- Spokes: 14 g stainless steel, black
- Front hub: Bontrager aluminium, sealed bearings, Centre Lock, 12 x 100 mm thru-axle - Front axle: Bontrager Switch fluted
- Rear hub: Bontrager aluminium, sealed bearings, Centre Lock, 11-speed Shimano body - Rear axle: 12 x 142 mm - Bontrager Switch fluted with removable lever
- Tyres: Bontrager Girona Comp – rigid bead, 60 TPI – 700 x 42 mm
- Maximum clearance: 50 mm without mudguards / 42 mm with mudguards

Components:
- Seatpost: Bontrager aluminium, Ø 27.2 mm, 12 mm setback, length 330 mm

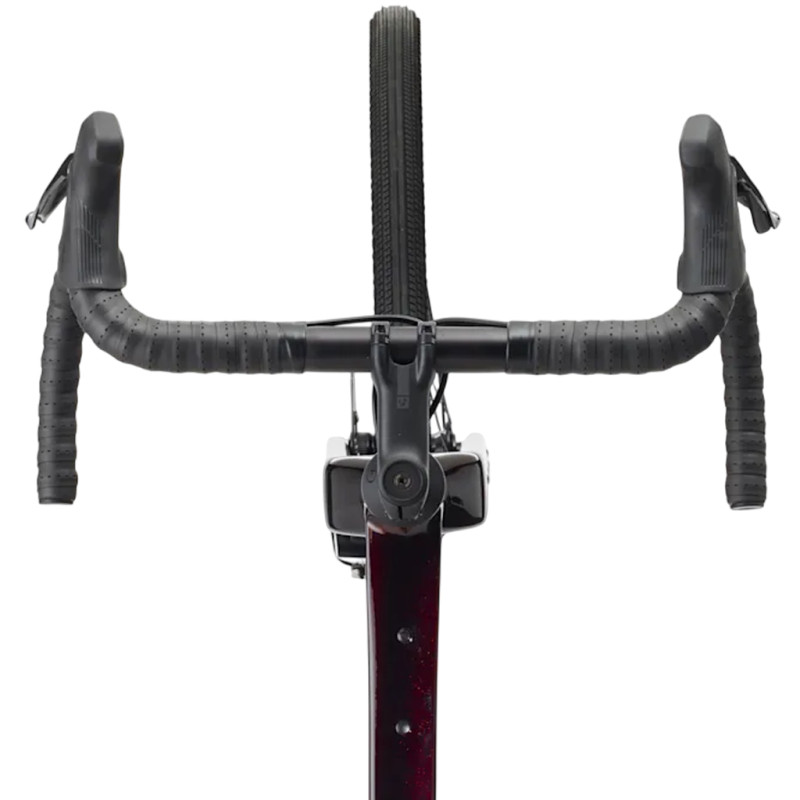

- XS/S handlebars: Bontrager Elite Aluminium Gravel, width 40 cm
- M/ML handlebars: Bontrager Elite Aluminium Gravel, width 42 cm
- L handlebars: Bontrager Elite Aluminium Gravel, width 44 cm
- Handlebar XL: Bontrager Elite Aluminium gravel bike, width 46 cm
- Handlebar tape XS/S/M/ML: Bontrager Gel Cork
- Handlebar tape L/XL: Trek Gel Cork
- Stem XS: Bontrager Elite , 70 mm, 7°, Blendr-compatible
- S/M stem: Bontrager Elite , 80 mm, 7°, Blendr-compatible
- ML/L stem: Bontrager Elite , 90 mm, 7°, Blendr-compatible
- XL stem: Bontrager Elite , 100 mm, 7°, Blendr-compatible

Braking:
- Brakes: Tektro C550 mechanical disc brakes
- Calipers: dual-piston
- Mounting: Flat-Mount
- Rotors: Tektro Centre Lock, 160 mm
- Maximum rotor diameter: 180 mm front and rear

General information:
- Manufacturer’s weight: 10.41 kg in size ML, with TLR sealant and without inner tubes
- Maximum authorised total weight: 125 kg, bike + rider + luggage
- Use: gravel, adventure, bikepacking, long distances
- Brand: Trek
