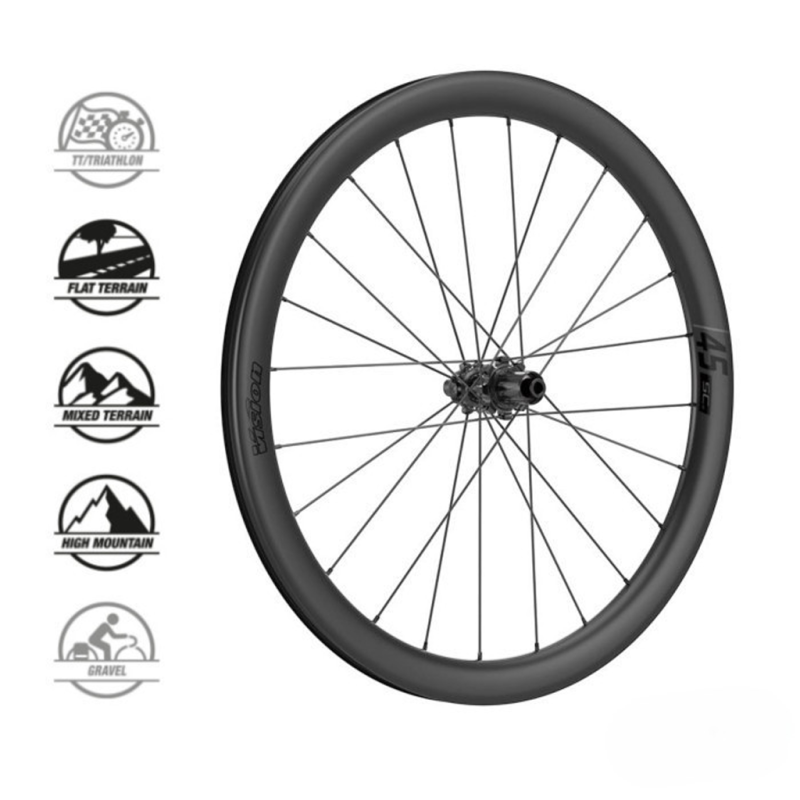

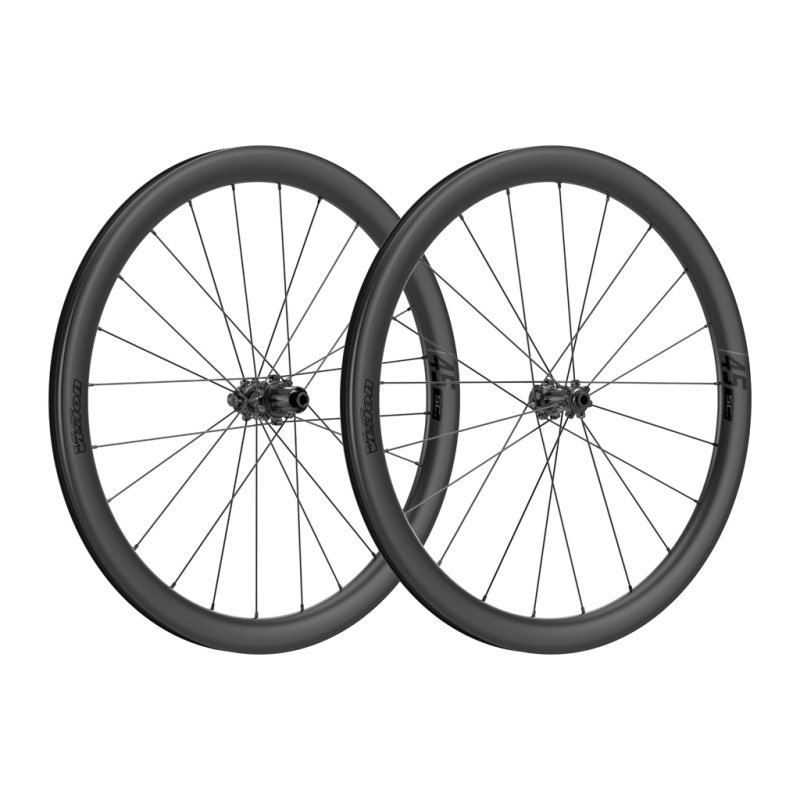

Vision SC45i / i23 Disc carbon bike wheels – Display model

Developed in collaboration with certain teams sponsored by Vision, such as EF Education First, these Vision SC 45i Disc wheels are the ones used by the pros in training. Designed for cyclists looking for a blend of versatility and performance at a competitive price, these wheels are simply perfect. Indeed, the i23 version features a wider rim (23 mm internal width) and a new rear hub, resulting in a pair of wheels that are both more aerodynamic for performance and more comfortable thanks to their ability to accommodate wider tyres.

The rims are handmade from carbon fibre. The 23 mm internal width with a flange ensures maximum efficiency with tubeless tyres ranging from 28 to 45 mm. Weighing in at a fairly light 1,590 grams, these wheels are designed with 24 aerodynamic spokes laced in a 2:1 crosstie pattern and direct-pull hubs. The ratchet-type freehub ensures excellent reliability.

Please note that these wheels are display models; they have been removed from a new bike and have never been ridden.

Technical specifications:

- Discipline: road
- Use: training
- Terrain: road, flat/hilly/mountain
- Material: 100% carbon
- Braking system: disc
- Tyre type: Tubeless Ready
- Rim profile height: 45 mm
- Internal rim width: 23 mm

Weight: 1,590 grams per pair

Hubs:
- Rear axle: 142 mm
- Front axle: 100 mm
- Hubs: Direct-pull with ratchet freehub body / 6 sealed cartridge bearings (2 front + 4 rear)
- Freehub body: XDR 11-12-speed or Shimano HG 10-11-12-speed (subject to availability)

Spokes:
- Spokes: 24 spokes, 2:1 cross-spoke pattern
