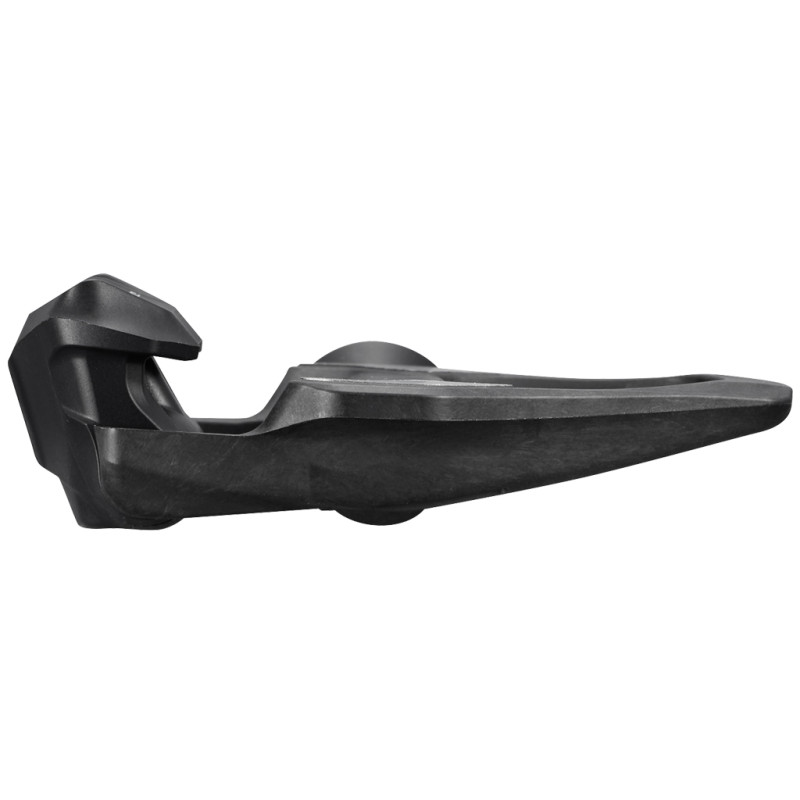

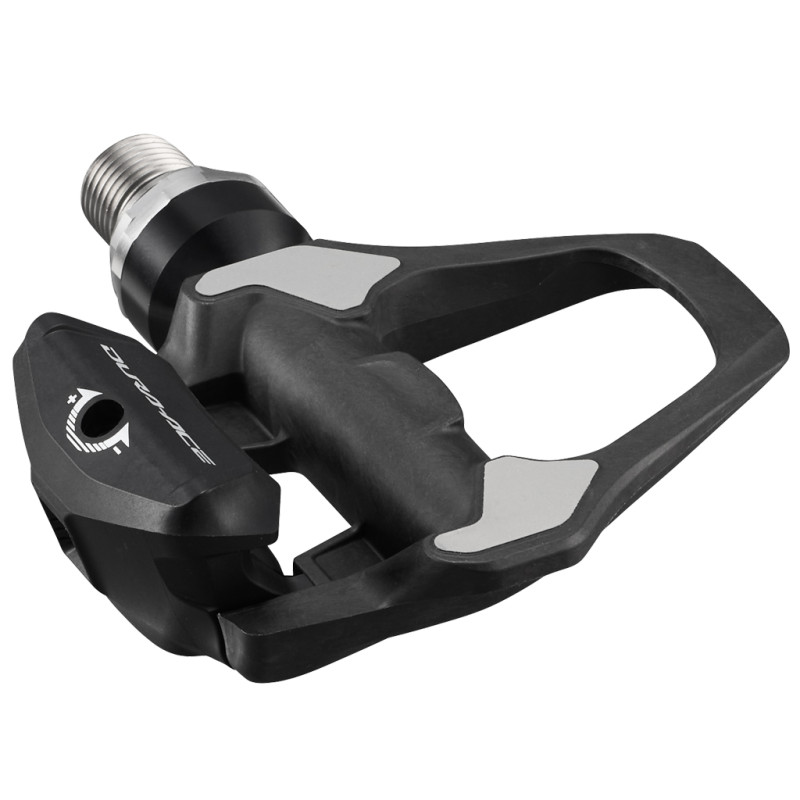

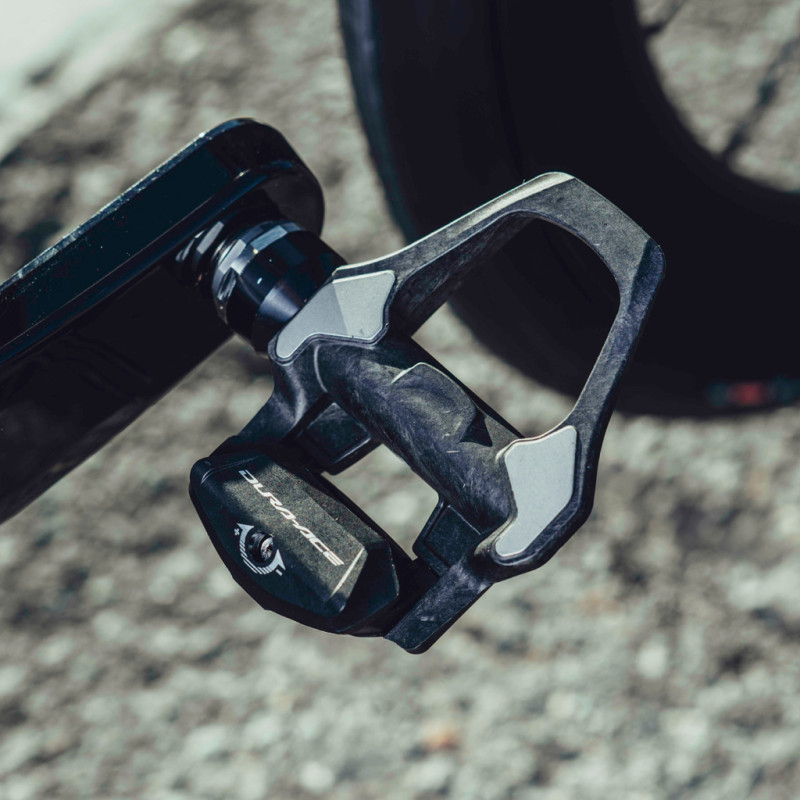

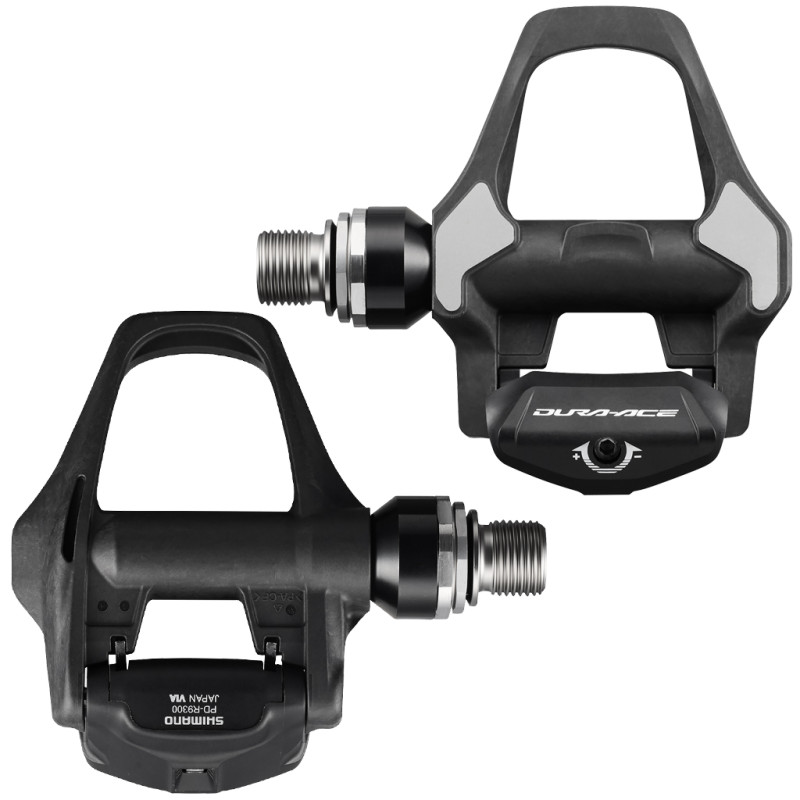

Shimano Dura-Ace PD-R9300 pedals with 4mm long axle, with Shimano CL-SL110 cleats

These are the most advanced road pedals from Shimano. They introduce the SPD-SLR system and are designed for professional riders and discerning cyclists seeking maximum performance.

Key features:

- Ultra-wide platform for exceptional stability.

- Ultra-low ‘stack height’ (2.3 mm lower than the previous generation SPD-SL).

- No gap between the pedal and the cleat → better power transfer and greater control.

- Integrated stainless steel contact plate (better engagement + increased stiffness).

- Injection-moulded carbon composite body.

- Axle stiffness increased by +11 per cent compared to the PD-R8200.

- Rotational resistance reduced by 53 per cent thanks to a heat-treated axle and optimised bearing surfaces.

Injection-moulded carbon composite body.

Extra-wide platform for optimal foot support.

Integrated stainless steel contact plate that improves engagement, interface stiffness and durability.

By moving your foot closer to the pedal spindle, you get:

- A more stable riding position.

- A more direct transfer of power.

- Better control of the bike (sprints, climbs, threshold efforts).

The PD-R9300 pedals are compatible only with the new SPD-SLR cleats.

Supplied with the pedals, the CL-SL110 (yellow) cleats are the most versatile in the range: 3° of angular freedom (or ±3°, totalling 6°). Enhanced comfort and reduced joint strain. Ideal for the widest range of cyclists. Lighter (up to 22 per cent lighter than the previous SPD-SL cleats)

The other SPD-SLR cleat options are:

- CL-SL100 (red): 0° (fixed position) for maximum power transfer.

- CL-SL120 (blue): 1° of freedom.

- CL-SL130 (grey): a transitional version offering more adjustment options, but without the benefits of reduced stack height or weight savings.

Yes. The clip-in angle has been reduced to 10.5° (down from 15.5° previously) and the engagement zone has been widened. Clip-in is more natural and secure, whether you’re setting off, coming out of a bend or sprinting.

No. SPD-SLR cleats are not backwards compatible with older SPD-SL pedals, and vice versa. You must use SPD-SLR cleats with PD-R9300 pedals.

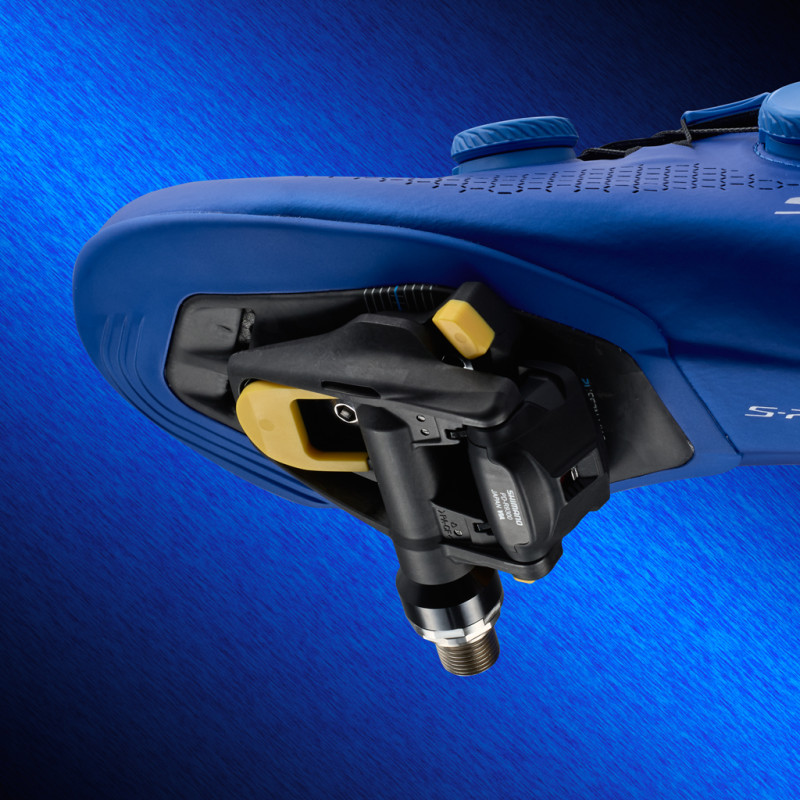

Yes, to get the most out of the system (lowest stack height + greater stiffness + optimal feel), Shimano recommends pairing the PD-R9300 pedals with CL-SL110 cleats (or other SPD-SLR cleats) and the new S-PHYRE shoes designed for SPD-SLR.

SPD-SLR cleats remain compatible with most existing 3-hole road shoes, however (although the full benefits are only realised with the complete ecosystem).

Axle stiffness: +11 per cent.

Rotational resistance: -53 per cent.

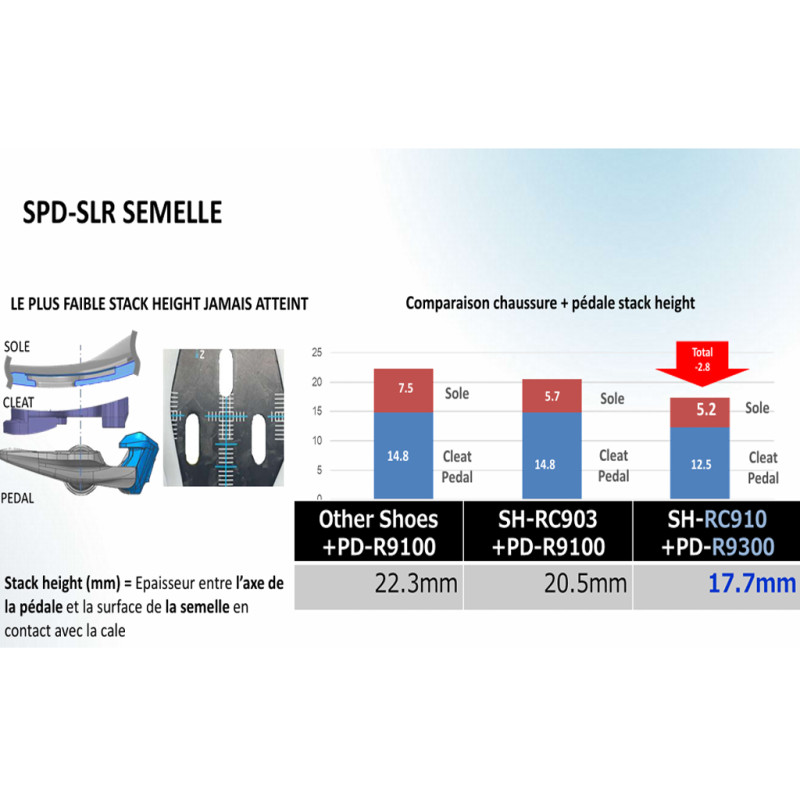

Stack height: -2.3 mm.

Weight of cleats: up to -22 per cent.

Clip-in angle: 10.5° (instead of 15.5°).

Yes. A version with a 4 mm longer axle is available at the same price. These are suitable for cyclists who need a wider Q-factor.

The extra 4 mm offset is particularly useful for cyclists looking for a foot position suited to their body shape and set-up, especially those with a wide pelvis.

These are designed for professional riders and cyclists seeking optimum stability, direct power transfer and maximum efficiency.

Although they are optimised for top-level performance, they are perfectly suited to discerning cyclists seeking the best power transfer and a smooth pedalling feel, whether in competition or during intensive training.
