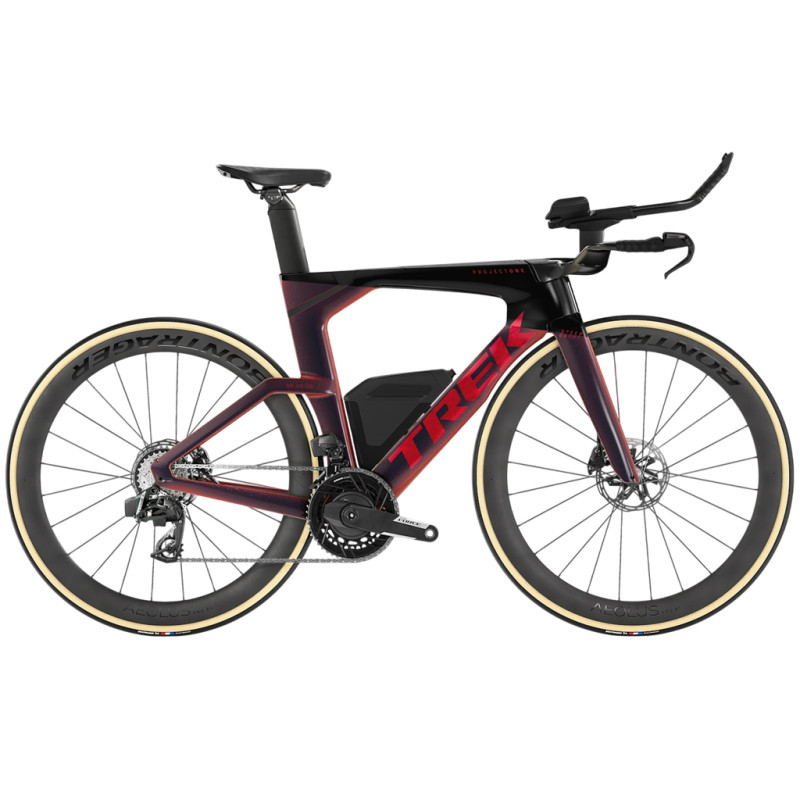

Trek Speed Concept SLR 7 AXS Serpentine 2027 time trial triathlon bike

The Speed Concept SLR 7 AXS Serpentine Trek was designed with one simple idea in mind: to save you time with every pedal stroke. Its 800 Series OCLV carbon frame and KVF aerodynamic profile work in tandem with highly integrated handlebars, fork and storage solutions. Added to this is IsoSpeed technology, which provides greater comfort as the kilometres mount up. On a triathlon bike, every detail counts, and the Speed Concept has been specifically designed to ensure nothing disrupts your effort.

The wireless SRAM Force AXS E1 drivetrain with power metre delivers precision and simplicity, whilst the Aeolus Pro 51 ‘ Bontrager ’ carbon wheels give the whole bike the look and feel of a true time trial machine. Add a highly adjustable riding position, integrated hydration and nutrition management, and high-performance disc brakes: everything comes together to create a machine capable of helping you chase those seconds, whether in a long-distance triathlon or against the clock. The Speed Concept SLR 7 AXS is the sort of bike that makes you want to see just how far your legs can take you.

Technical specifications:

Frame and fork:

- Frame: OCLV 800 Series Carbon
- Frame technology: KVF (Kammtail Virtual Foil)

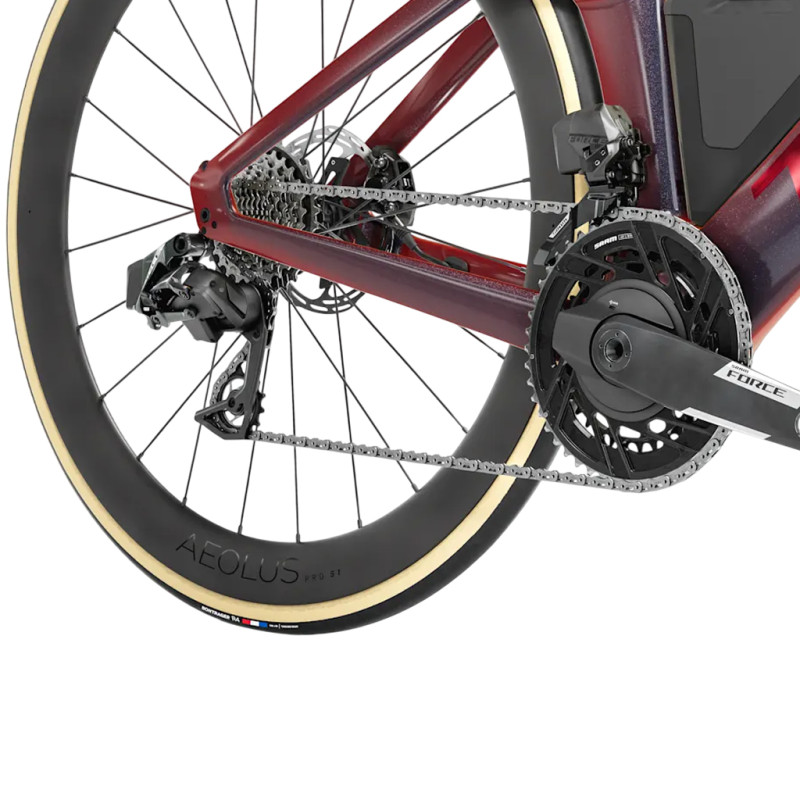

Drivetrain:

- Shift levers: Sram AXS Blips (wireless)
- Front derailleur: Sram Force AXS Braze-on
- Rear derailleur: Sram Force AXS E1, maximum sprocket 36 teeth
- Crankset: SRAM Force AXS with power metre, 48/35
- Crank length: 165 mm (S), 170 mm (M/L), 172.5 mm (XL)
- Bottom bracket: SRAM DUB, T47 threaded, internal bearings
- Cassette: SRAM Force XG-1270, 10-33, 12-speed
- Chain: SRAM Force E1, 12/13-speed
- Maximum chainring: 1x 58 teeth / 2x 55/44

Wheels and tyres:

- Front wheel: Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready
- Rear wheel: Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready
- Freehub body: SRAM XD-R
- Axles: 100 x 12 mm and 142 x 12 mm
- Tyres: Bontrager R4 320, 700 x 25 mm
- Inner tubes: Pirelli P Zero SmarTube, TPU
- Wheel locks: Bontrager Switch

Braking:

- Brakes: SRAM S-900 Force Aero hydraulic
- Rotors: SRAM Paceline X, Centre Lock, 160 mm

Components

- Saddle: Bontrager Hilo Pro Carbon
- Seatpost: Speed Concept SLR, 11.5 or 20 mm offset

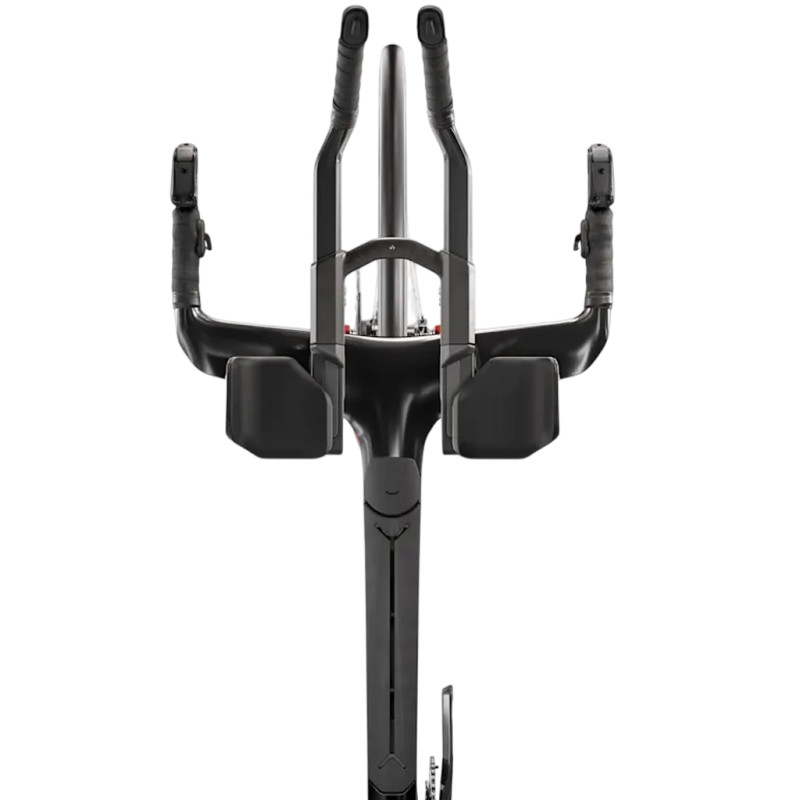

- Handlebar set: Speed Concept integrated
- Handlebars: Speed Concept mid-rise bar/stem
- Handlebar tape: Trek EcoTack / Trek Gel Cork

Accessories:

- Bottle cage: Speed Concept Downtube Bottle Cage
- Water bottle: Speed Concept down tube bottle

Weight and general information:

- Weight: 9.02 kg in size M
- Maximum permitted total weight: 125 kg (bike, rider and luggage)

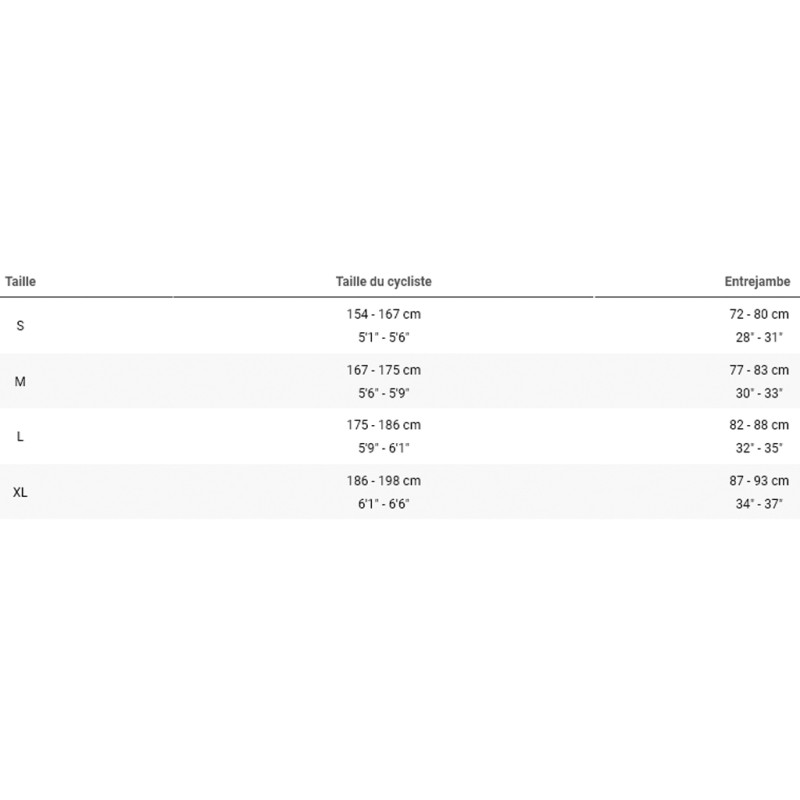

- Size: S / M / L / XL
- Colours: Serpentine / Red
- Year: 2027
- Brand: Trek
