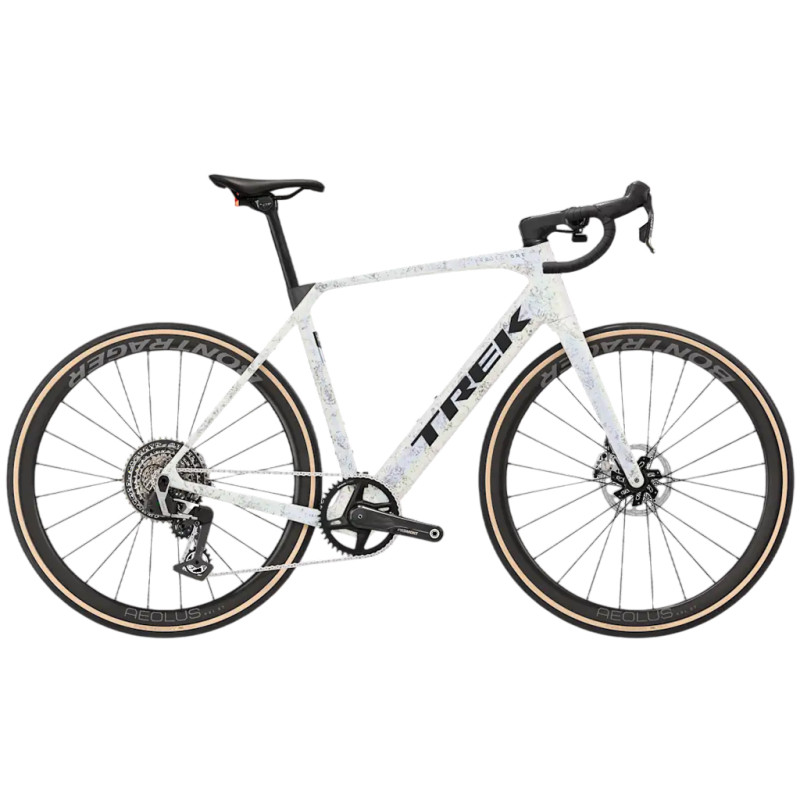

Trek Domane+ SL 9 AXS 5th Gen electric road bike SRAM Red E1 1x13-speed Bontrager Aeolus RSL 37 Mother of Pearl Silver Marble 20

The Domane+ SL 9 AXS takes a particularly sophisticated approach to the e-road bike. Its OCLV 500 Series carbon frame discreetly integrates the TQ HPR40 motor to maintain a natural ride feel, whilst providing valuable assistance on climbs and when long distances start to take their toll.

Its premium build combines the SRAM RED AXS E1 1x13-speed drivetrain with the Aeolus RSL 37 carbon wheelset from Bontrager, complemented by 35 mm Kwaremont RSL tyres. Generous clearance of up to 40 mm, mudguard mounts and pannier mounting points enhance its versatility, whilst the Mother of Pearl Silver Marble colour scheme gives it an elegant and particularly distinctive finish.

Technical specifications:

Frame and fork:

- Frame: OCLV Series 500 carbon with TQ drivetrain, UDH derailleur hanger
- Fork: Domane+ Carbon, tapered carbon steerer, internal brake routing, mudguard mounts and Flat-Mount

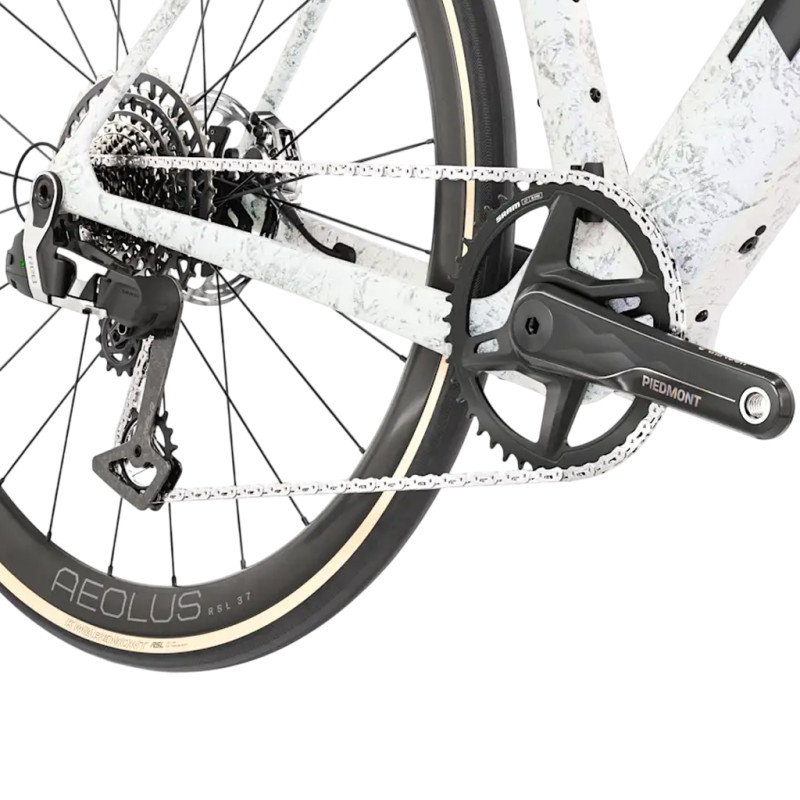

Drivetrain:

- Shift levers: SRAM RED AXS E1
- Rear derailleur: SRAM RED XPLR eTap AXS, maximum cassette cog 46 teeth
- Crankset: EThirteen Piedmont Race Carbon Espec
- Crank length: 165 mm (XS/S/M/ML), 170 mm (L/XL)
- Chainring: SRAM X-SYNC, 44 teeth, alloy
- Cassette: SRAM XG-1391, 10-46, 13-speed
- Chain: SRAM RED E1, 12/13-speed
- Largest chainring: 48 teeth (single chainring)

Wheels and tyres:

- Front wheel: Bontrager Aeolus RSL 37, OCLV carbon, Tubeless Ready, 37 mm rim, 100 x 12 mm axle
- Rear wheel: Bontrager Aeolus RSL 37, OCLV carbon, Tubeless Ready, 37 mm rim, 142 x 12 mm axle
- Axles: Bontrager Switch fluted axles, removable rear lever
- Tyres: Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 TPI, 700 x 35 mm
- Rim tape: Bontrager TLR
- Inner tube: Pirelli P Zero SmarTube, TPU

Braking:

- Brakes: Hydraulic disc brakes SRAM
- Rotors: SRAM Paceline X, Centre Lock, 160 mm
- Maximum rotor diameter: 160 mm front and rear

Electrical system:

- Motor: TQ HPR40, 40 Nm, maximum power 200 W
- Battery: TQ 360 Wh
- Charger: TQ 4A
- Controller: TQ colour LED display with Bluetooth and ANT+ connectivity
- Maximum assisted speed: 25 km/h

Components:

- Saddle: Verse Short Pro, carbon rails, width 145 mm
- Seatpost: Bontrager RSL carbon, 27.2 mm, offset 5 mm

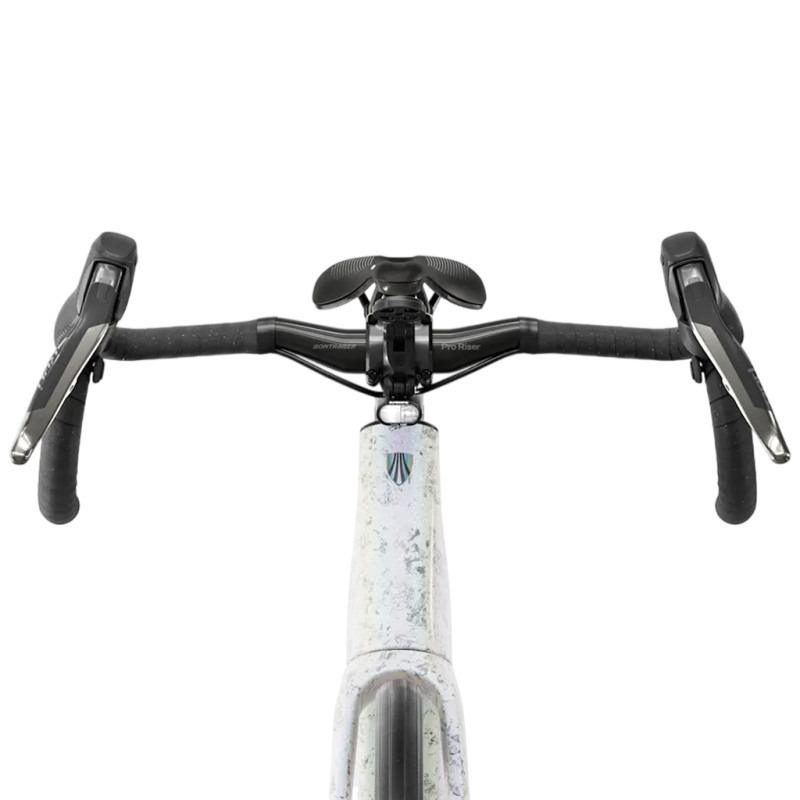

- Handlebars: Bontrager Pro carbon riser, rise 20 mm, reach 70 mm
- Handlebar width: 36 cm (XS), 38 cm (S), 40 cm (M/ML), 42 cm (L/XL)
- Stem: Trek RCS Pro, -7°
- Stem length: 80 mm (XS), 90 mm (S), 100 mm (M), 110 mm (ML/L), 120 mm (XL)
– Handlebar tape: Trek Gel Cork

Accessories:

- Rear light: Trek Flare C
- Front light: Supernova SS Mini Headlight

Weight and general information:

- Weight: 11 kg in size ML, with TLR sealant and without inner tubes
- Maximum permitted total weight: 125 kg (bike, rider and luggage)

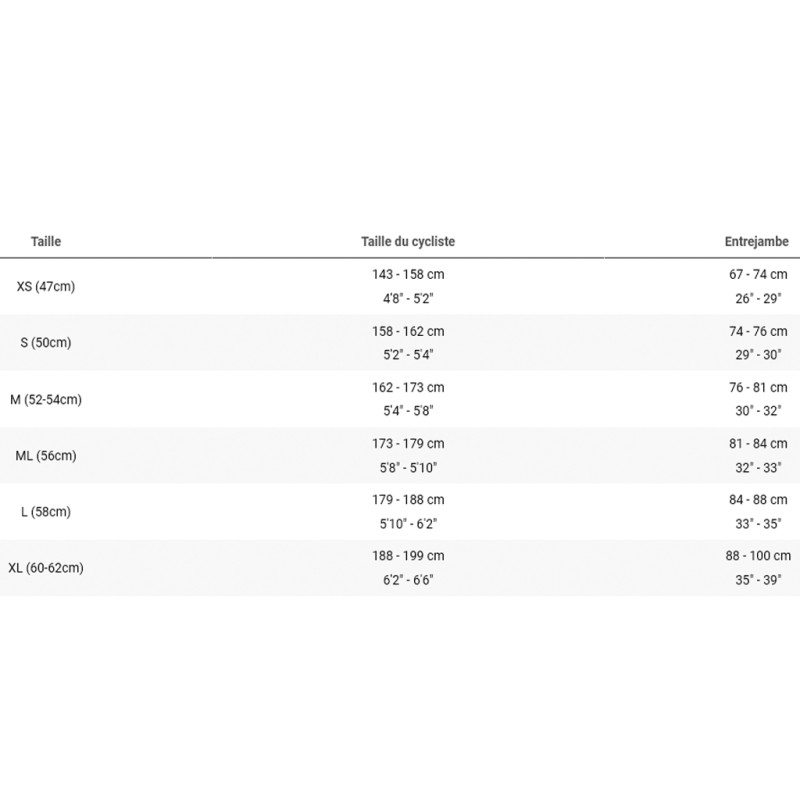

- Sizes: XS / S / M / ML / L / XL
- Colours: Mother of Pearl Silver Marble / Matt White
- Year: 2027
- Brand: Trek
