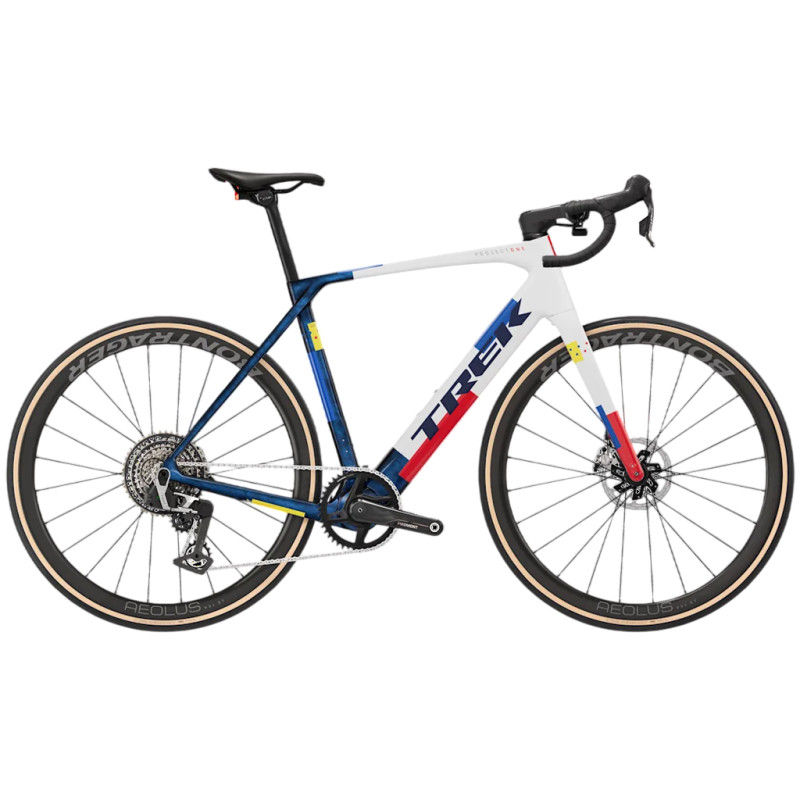

Trek Domane+ SL 9 AXS 5th Gen electric road bike SRAM Red E1 1x13-speed Bontrager Aeolus RSL 37 Navy Smoke White 2027

The Domane+ SL 9 AXS 5th Gen Trek is designed for those who want to go far, for long periods, without letting the kilometres dictate their pace. Its 500 Series OCLV carbon frame integrates the HPR40 TQ motor particularly discreetly, with progressive assistance that naturally complements your pedalling when the road climbs or fatigue sets in. The 360 Wh battery and 40 Nm of torque thus provide valuable support whilst retaining the feel of a true road bike.

With its SRAM RED AXS E1 1x13 drivetrain, a pair of Bontrager Aeolus RSL 37 carbon wheels and 35 mm Kwaremont RSL tyres, the Domane+ SL 9 combines efficiency, comfort and versatility. Its clearance of up to 40 mm allows you to venture onto a wider variety of roads, whilst the integrated storage and mudguard mounts make long rides easier. The Navy Smoke White colour scheme completes the package with an elegant finish that emphasises its premium character.

Technical specifications:

Frame and fork:

- Frame: OCLV Series 500 carbon with TQ drivetrain, UDH derailleur hanger
- Fork: Domane+ Carbon, tapered carbon steerer, internal brake routing, mudguard mounts and Flat-Mount

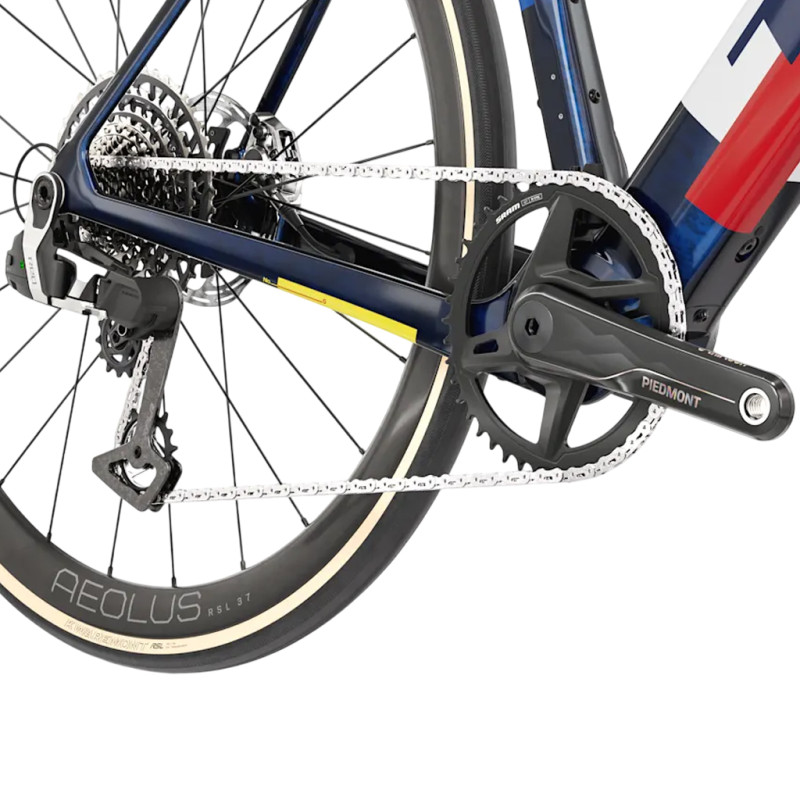

Drivetrain:

- Shift levers: SRAM RED AXS E1
- Rear derailleur: SRAM RED XPLR eTap AXS, maximum cassette tooth count 46
- Crankset: EThirteen Piedmont Race Carbon Espec
- Crank length: 165 mm (XS/S/M/ML), 170 mm (L/XL)
- Chainring: Sram X-SYNC, 44 teeth, alloy
- Cassette: Sram XG-1391, 10-46, 13-speed
- Chain: Sram RED E1, 12/13-speed
- Largest chainring: 48 teeth (single chainring)

Wheels and tyres:

- Front wheel: Bontrager Aeolus RSL 37, OCLV carbon, Tubeless Ready, 37 mm rim, 100 x 12 mm axle
- Rear wheel: Bontrager Aeolus RSL 37, OCLV carbon, Tubeless Ready, 37 mm rim, 142 x 12 mm axle
- Axles: Bontrager Switch fluted axles, removable rear lever
- Tyres: Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 TPI, 700 x 35 mm
- Rim tape: Bontrager TLR
- Inner tube: Pirelli P Zero SmarTube, TPU

Braking:

- Brakes: Hydraulic disc brakes SRAM
- Rotors: SRAM Paceline X, Centre Lock, 160 mm
- Maximum rotor diameter: 160 mm front and rear

Electrical system:

- Motor: TQ HPR40, 40 Nm, maximum power 200 W
- Battery: TQ 360 Wh
- Charger: TQ 4A
- Controller: TQ colour LED display with Bluetooth and ANT+ connectivity
- Maximum assisted speed: 25 km/h

Components:

- Saddle: Verse Short Pro, carbon rails, width 145 mm
- Seatpost: Bontrager RSL carbon, 27.2 mm, 5 mm offset

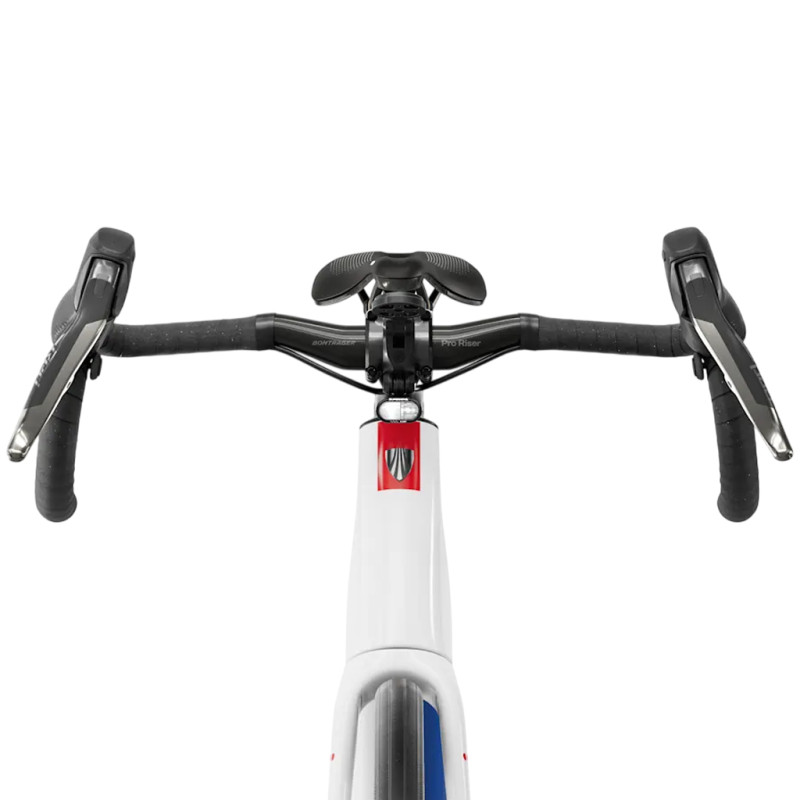

- Handlebar: Bontrager Pro carbon riser, 20 mm rise, 70 mm reach
- Handlebar width: 36 cm (XS), 38 cm (S), 40 cm (M/ML), 42 cm (L/XL)
- Stem: Trek RCS Pro, -7°
- Stem length: 80 mm (XS), 90 mm (S), 100 mm (M), 110 mm (ML/L), 120 mm (XL)
- Handlebar tape: Trek Gel Cork

Accessories:

- Rear light: Trek Flare C
- Front light: Supernova SS Mini Headlight

Weight and general information:

- Weight: 11 kg in size ML, with TLR sealant and without inner tubes
- Maximum authorised total weight: 125 kg (bike, rider and luggage)

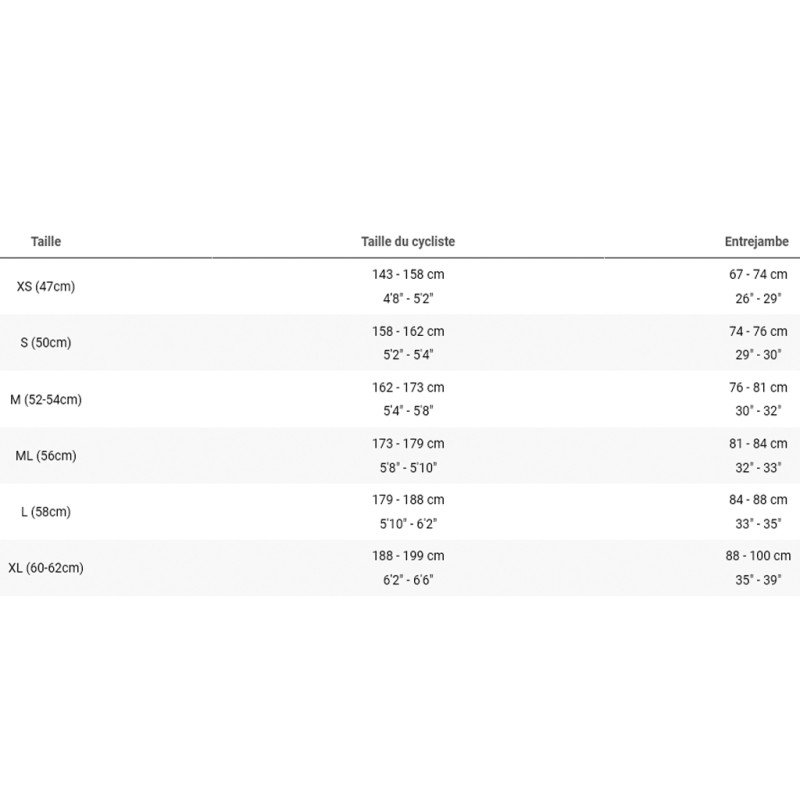

- Sizes: XS / S / M / ML / L / XL
- Colours: Navy Smoke White / White
- Year: 2027
- Brand: Trek
