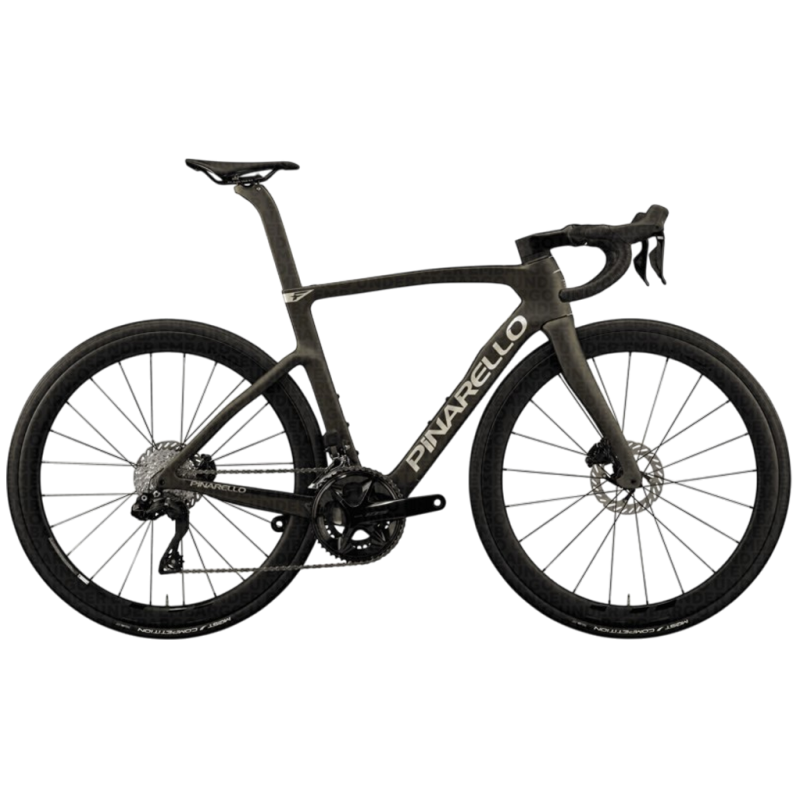

Pinarello F5 MY26 105 Di2 12-speed Fast 45 DB Bronze Mirage road bike

The F5 MY26 Shimano 105 Di2 Pinarello embodies all the Italian brand’s expertise, offering a road bike that performs just as well on climbs as it does on descents. Carrying on the competitive heritage of Pinarello, this model has been developed according to the All-Round Performance concept, offering a perfect balance between lightness, aerodynamics, stiffness and comfort.

Its carbon frame features numerous innovations such as the new aerodynamic down tube, the e-TiCR headset with fully integrated cable routing, and the renowned ONDA fork, optimised to improve steering precision and stability at high speeds. Compatible with tyres up to 32 mm, it delivers greater comfort and performance on all surfaces.

Shimano ’s 105 Di2 12-speed electronic drivetrain ensures fast, silent and highly precise gear changes. The MOST Fast 45 DB carbon wheels offer an excellent balance between aerodynamics, stiffness and versatility, whilst the Jaguar XA / Tiger e-TiCR integrated cockpit optimises the riding position and cable routing.

Whether for cyclosportives, long rides or mountainous routes, the Pinarello F5 MY26 delivers with remarkable efficiency.

Technical specifications

frame & fork- Frame: Pinarello F5 MY26 carbon
- Fork: Pinarello ONDA carbon
- Cable routing: Full e-TiCR
- Headset: New-generation Elliptique e-TiCR
- Bottom bracket: Aero KEEL
- Seatpost clamp: Integrated
- Tyre clearance: Up to 32 mm
- Fork rake: 47 mm

Drivetrain
- Groupset: Shimano 105 Di2 2x12-speed
- Grips: Shimano 105 Di2
- Front derailleur: Shimano 105 Di2 - double
- Rear derailleur: Shimano 105 Di2 - 12-speed
- Crankset: Shimano 105 50/34 teeth
- Cassette: Shimano 105 - 11-34 teeth - 12-speed
- Chain: Shimano 12-speed

Braking
- Brakes: Shimano 105 hydraulic disc brakes

Components
- Handlebars: MOST Jaguar XA Aluminium e-TiCR
- Handlebar width: 40 cm
- Stem: MOST Tiger Aluminium e-TiCR
- Stem length: 80 mm
- Saddle: Prologo Dimension R2 PAS
- Seatpost: Pinarello Offset 18 mm

wheels- Wheels: MOST Fast 45 Carbon DB
- Tyre compatibility: Up to 32 mm

General information
- Colour: Mirage Bronze
- Available sizes: 43 – 46.5 – 50 – 51.5 – 53 – 54.5 – 56 – 57.5 – 59.5
- Brand: Pinarello

FAQ – Frequently Asked Questions

1. What type of cyclist is the F5 MY26 Pinarello designed for?

The F5 MY26 is designed for sporty cyclists looking for a high-performance bike suitable for long rides, cyclosportives, mountain routes and competitions.

2. What are the advantages of the Shimano 105 Di2?

The Shimano 105 Di2 12-speed groupset offers fast, precise and reliable electronic gear changes, with low maintenance and excellent ease of use.

3. Why choose MOST Fast 45 carbon wheels?

The MOST Fast 45 Carbon DB wheels offer an excellent balance between lightness, stiffness and aerodynamics. Their 45 mm profile makes them high-performing on hilly routes as well as on fast-paced sections.

4. Can wider tyres be fitted?

Yes. The frame accommodates tyres up to 32 mm, improving comfort, grip and performance on rough roads.

5. What does Pinarello ’s e-TiCR technology offer?

The e-TiCR system allows all cables to be routed entirely inside the frame and cockpit. It improves aerodynamics, protects the cable housings from the elements and offers a particularly neat finish.

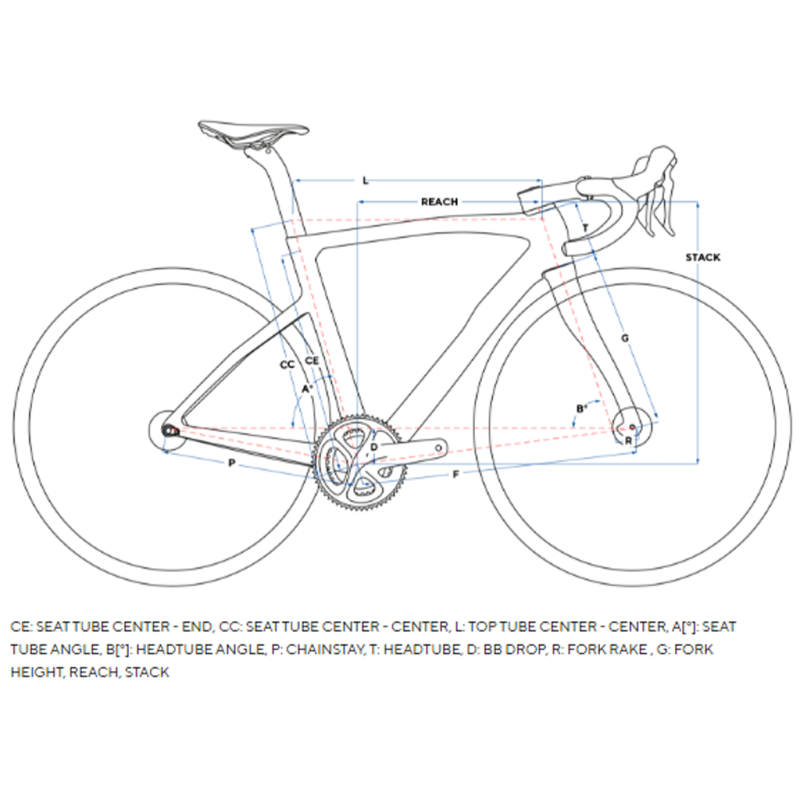

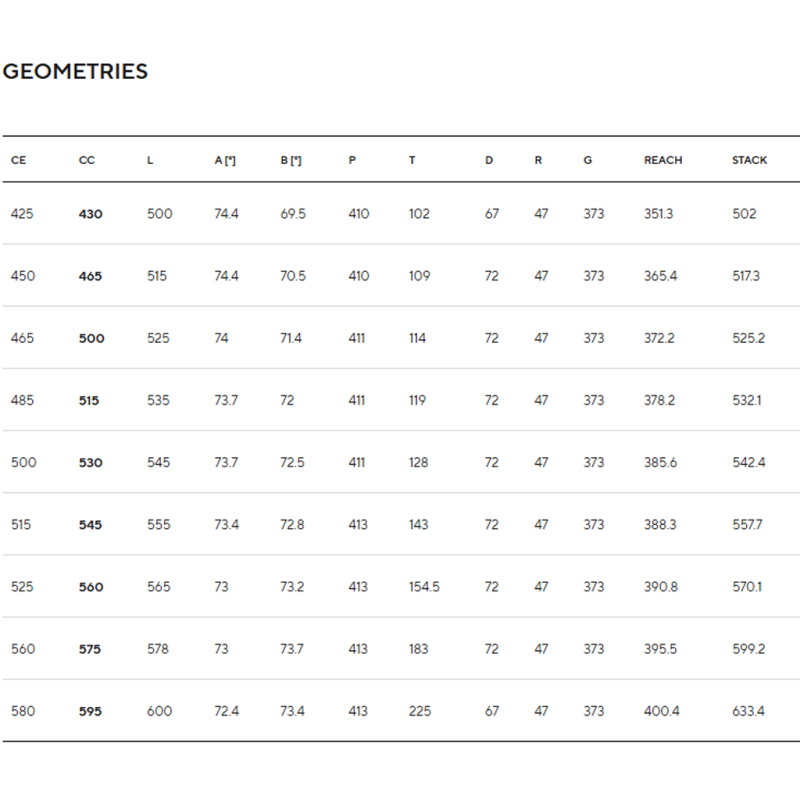

Geometry:
