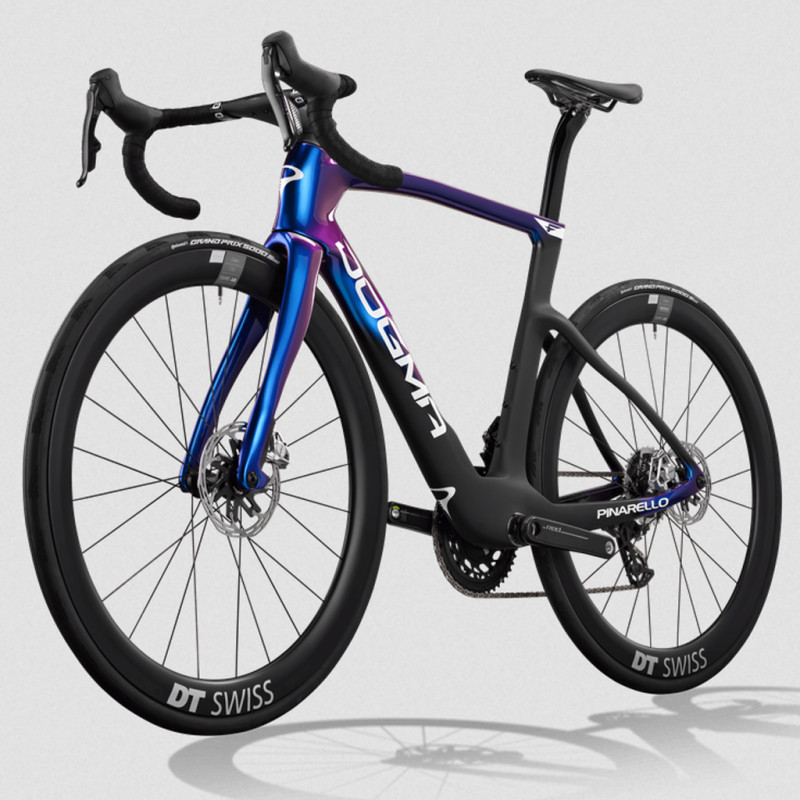

Pinarello New Dogma F Disc Sram Red AXS E1 12-speed DT Swiss ARC1450 H103 Luxter Blue Shiny road bike

The Pinarello New Dogma F Disc H103 Luxter Blue Shiny is designed for couriers or cyclists who want to enjoy riding a truly exceptional bike. Used by the pros of the INEOS team in the world’s biggest races, such as the Tour de France, this bike features a TorayCa M40X carbon frame that utilises a revolutionary fibre to achieve unprecedented stiffness.

The redesigned, slimmer down tube optimises aerodynamic performance, whilst the elliptical head tube, now slimmer, offers a sleek design. The integrated seatpost reduces weight, and the new Onda fork, slimmer and raked, improves handling. The Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.

This Pinarello New Dogma F Disc H103 Luxter Blue Shiny is equipped with the Sram Red AXS E1 12-speed groupset, ensuring fast and precise gear changes, as well as high-performance disc braking in all conditions. The DT Swiss ARC 1450 wheels are of exceptional quality, guaranteeing maximum efficiency, whether in the mountains or on the flat.

Technical specifications:

Frame:
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Drivetrain:
- Crankset: Sram Red AXS E1 12-speed
- Cassette: Sram Red AXS E1 12-speed XG-1290
- Chain: Sram Red AXS E1 12-speed
- Grips: Sram Red AXS E1 12-speed
- Front derailleur: Sram Red AXS E1 12-speed
- Rear derailleur: Sram Red AXS E1 12-speed

Brakes:
- Brakes: SRAM Red AXS E1 12-speed
- Rotors: 160mm front and rear

Components:
- Integrated handlebar and stem: Most Talon Ultra Fast
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D-printed titanium top seatclamp and bolts
- Bottle cages: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

Wheels:
- Wheels: DT Swiss ARC 1450
- Tyres: Continental Grand Prix 5000S TR28-622

General information:
- Colour: H103 Luxter Blue Shiny
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
