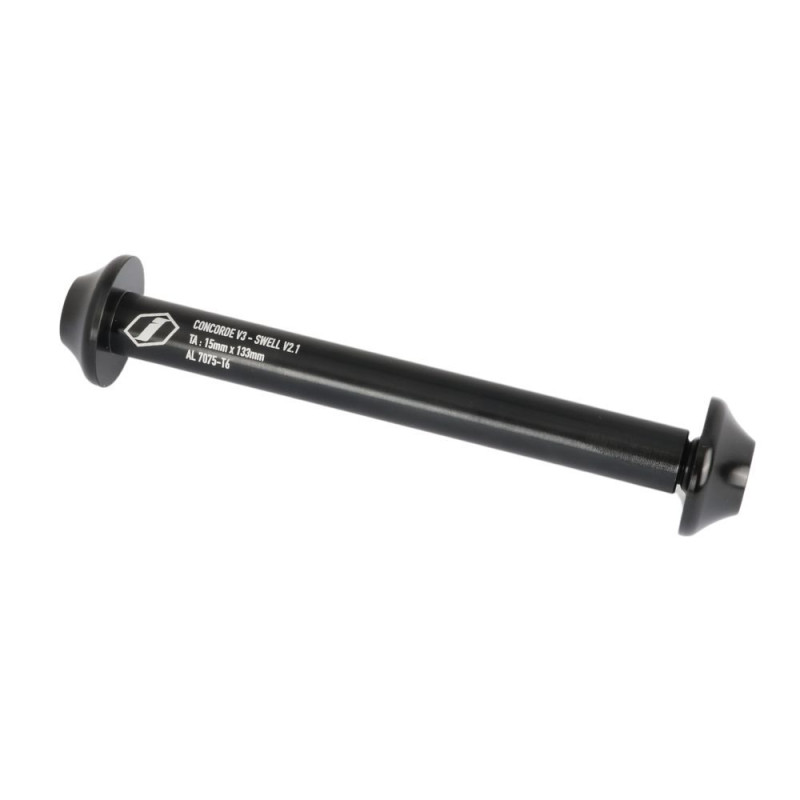

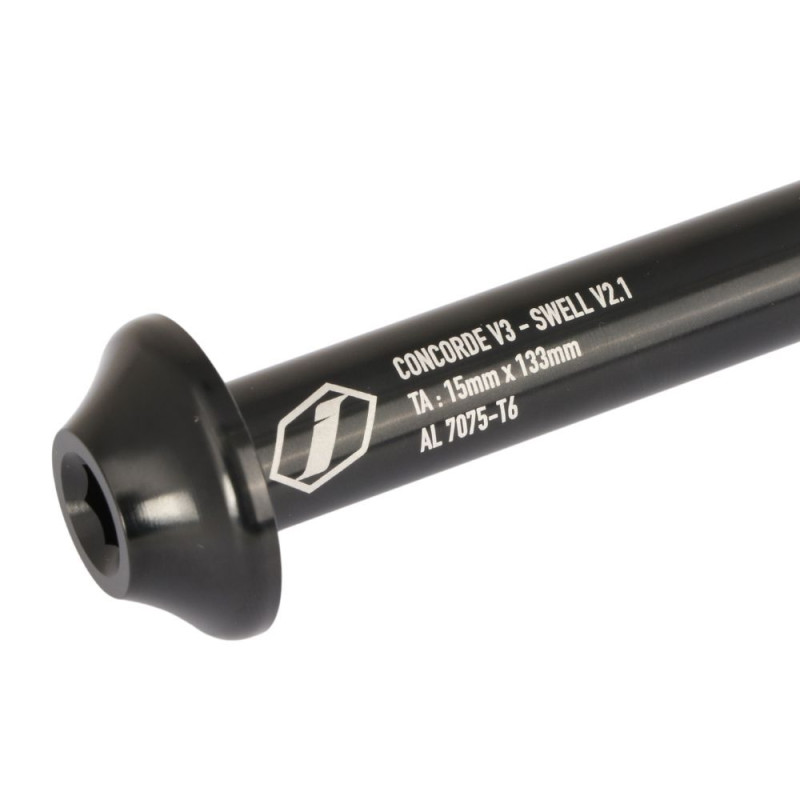

Inspyre 15mm rear thru-axle
A robust, precise and lightweight thru-axle, ideal for getting the most out of the Inspyre Concorde V3 2025 frame. An essential component for riders looking for performance and reliability.
Rider Elite XC for 5 years
Specially developed for the Inspyre Concorde V3 frame, the Inspyre 15mm thru-axle allows for an optimised rear setup with a 15mm hub and Swell dropouts V2.1.
CNC-machined from high-quality 7075-T6 aluminium, it guarantees a flawless finish, increased rear triangle stiffness and simplified installation.
Its 133 mm length has been calculated to provide ideal reach over the frame dropouts, ensuring optimum hub compression without the need for additional washers. The wide cones at each end provide uniform support, improving stability and power transfer.
As well as enhancing the bike’s overall performance, this system makes fitting and removing the rear wheel considerably easier, making maintenance quicker and safer.
- Compatibility: Inspyre Concorde V3 2025 – Swell V2.1 dropouts
- Diameter: 15 mm
- Length: 133 mm
- Material: CNC-machined 7075-T6 aluminium
- Precision CNC machining for a perfect fit
- 7075-T6 aluminium: rigidity, lightness and durability
- Even clamping force on the frame without additional washers
- Wide cones for improved lateral stability
- Quick installation with an 8 mm Allen key
- Weight: 89 g
- Brand: Inspyre Bicycles
| Colours | black |
|---|---|
| EAN | 3663205161005 |
| Supplier reference | CAIN5026 |
