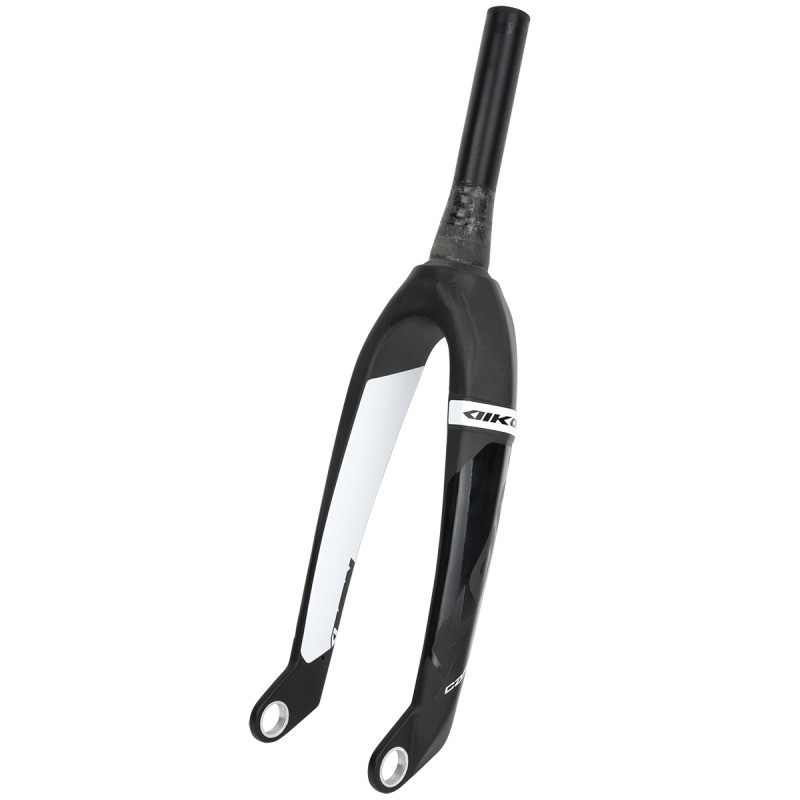

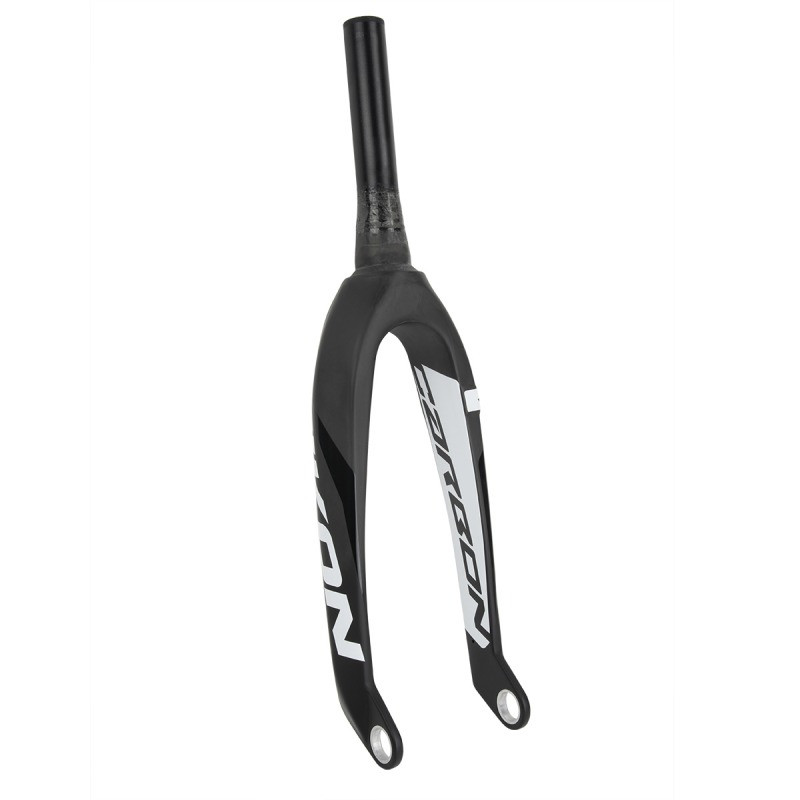

Carbon fork - Tapered pivot - 20mm
Rigid, precise and ultra-aerodynamic, the IKON Tapered Carbon Pro 20mm is a high-end choice for BMX Race riders looking for pure performance.
Rider Elite XC for 5 years
Tested and approved by the CHASE team riders, the IKON Tapered carbon fork Pro is designed to offer optimal aerodynamics, with a small rear spoiler beneath the head tube and streamlined legs. Made from Toray UD carbon fibre, it features a robust 7075 aluminium pivot and CNC-machined 6061 aluminium dropouts. Available in a Tapered version, it is suitable for frames with a tapered head tube measuring 1-1/8" at the top and 1.5" at the bottom. Compatible with Pro 20" frames, it can accommodate a 20 mm front axle, which can be adapted to 10 mm using adaptors sold separately.
- 20" monocoque UD carbon fork
- 7075 aluminium tapered pivot: 1-1/8" top – 1.5" bottom – 6mm thick
- Integrated fork bushing for bearing angle less than 45 degrees – no additional fork bushing required
- CNC-machined 6061 aluminium dropouts
- Axle: 20 mm
- Offset: 31 mm
- Pivot height: 173mm
- Axle-to-base height: 305mm
- Weight: 626g (without top cap)
- Sold with top cap
- Colour: Black/White
- Brand: Ikon / Materiel-velo.com
- For 20" frames with integrated tapered head tubes (top 1-1/8’’ – bottom 1.5’’)
- For 20" wheels with a 20mm axle
| Colours | black |
|---|---|
| Axle fork | 20mm |
| EAN | 0711484270024 |
