Pinarello Dogma X Disc Shimano Dura Ace Di2 12-speed Princeton Grit 4540 G140 Xolar Sea road bike

Packed with features, the Pinarello Dogma X Disc G140 Xolar Sea boasts a sleek design. This bike is based on a T1100 1K frame, made from high-strength carbon fibre using patented Nanoalloy technology. Its endurance-oriented geometry allows for a more comfortable riding position, especially since this frame absorbs vibrations while remaining light and rigid for maximum performance.Around this high-quality frame, the Pinarello Dogma X Disc G141 Xolar White is fitted with the Shimano Dura Ace Di2 12-speed groupset, one of the best on the market in terms of drivetrain and disc brakes. Finally, the Princeton Grit 4540 wheels guarantee maximum performance on all terrains, both in the mountains and on the flat.p>¤

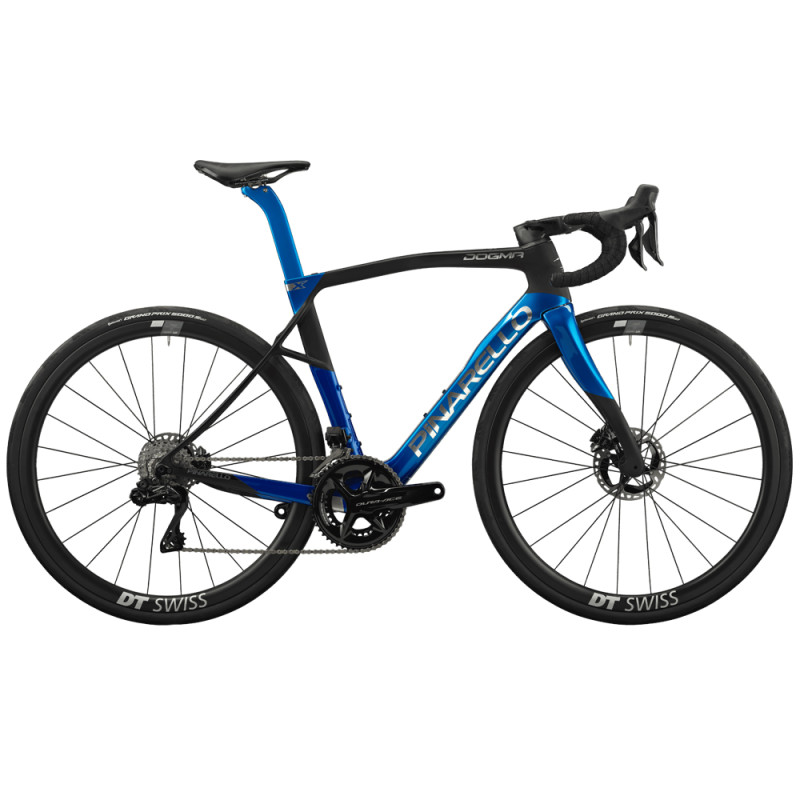

The photo is for illustrative purposes only; this bike is fitted with Princeton Grit 4540 wheels.

Technical specifications: Frame: - Frame: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved- Fork: Carbon

¤

Drivetrain:
- Crankset: Shimano Dura Ace Di2 RD-R9200 12-speed
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12-speed
- Handlebars: Shimano Dura Ace Di2 RD-R9200 12-speed
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12-speed

¤

Braking:
- Brakes: Dura Ace BR-R9200, 2-piston caliper, 160 mm front rotor / 140 mm rear rotor¤

Components:
- Handlebar: MOST Talon Ultra Light
- Stem: MOST- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm - Seatpost: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts ¤

Wheels:
- Wheels: Princeton Grit 4540 - Tyres: Pirelli P ZERO Race TLR 35-622 ¤ General information:- Colour: G140 Xolar Sea
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62

¤

Geometry:

¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	524.2	535.5	542.1	548.6	559	568.4	578.9	588.4	601.7	632	670.3
B	349.3	358.1	365.4	371.7	379.4	381.2	383	384.6	390.8	395.3	403.8
C	107	119	124	129	138	146	157	165	178	214	254
D	425	450	465	485	500	510	520	525	540	560	600
E	505	515	525	535	545	552	557	565	575	595	620

¤
