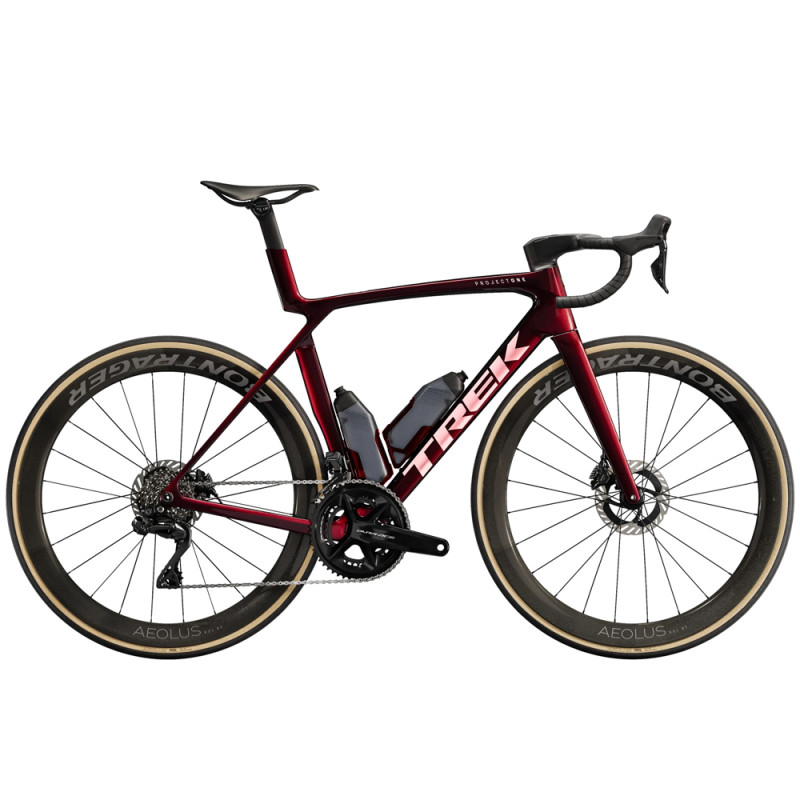

Trek Madone SLR 9 8th Gen. Shimano Dura-Ace Di2 12-speed Carbon Red Smoke 2025 Road Bike

You’re no doubt wondering what the many advantages are of this latest Trek Madone SLR 9 8th Gen with its striking design. Indeed, there are plenty: the front resembles the Emonda, whilst the rear clearly echoes the Madone’s shape. You’re not mistaken – it is, in fact, a fusion of the two models. Lighter, faster, but also more versatile than the Madone or the Emonda. This new Trek has it all and is a treat for both competitors and enthusiasts of fine machines.

The frame is made from OCLV 900 carbon, which is, of course, the finest carbon available from Trek. Stiffness and responsiveness are therefore guaranteed. With IsoFlow technology, this bike ensures optimal comfort, allowing you to enjoy your ride whatever the difficulty of the route. Meanwhile, the Full System Foil tubes feature revolutionary shapes, optimising the overall aerodynamics of this new Trek Madone SLR 9.

In terms of components, everything matches the bike’s overall quality. You’ll benefit from the Shimano Dura-Ace Di2 groupset, offering smooth and rapid gear changes, enhanced lightness and unrivalled reliability. The Bontrager Aeolus RSL 51 wheels feature a high profile that allows you to slice through the air on flat terrain, whilst ensuring lightness and responsiveness to tackle the mountains and their changing gradients.

Technical specifications:

Frame:
- Frame: OCLV Carbon 900 Series, Full System Foil tube shape, IsoFlow seat tube, RCS headset, electronic cable routing only, removable aerodynamic chain guard, T47 bottom bracket, Flat Mount disc brakes, universal derailleur hanger (UDH), 142x12 mm thru-axle
- Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Drivetrain:
- Crankset: Shimano Dura-Ace R9200, 52/36, crank length 165 mm (XS, S), 170 mm (M), 172.5 mm (ML, L), 175 mm (XL)
- Bottom bracket: Praxis, T47 threaded, internal bearing
- Cassette: Shimano Dura-Ace R9200, 11-30, 12-speed
- Chain: Shimano Dura-Ace/XTR M9100, 12-speed
- Shifters: Shimano Dura-Ace R9270 Di2, 12-speed
- Front derailleur: Shimano Dura-Ace R9250 Di2, towed, down swing
- Rear derailleur: Shimano Dura-Ace R9250 Di2, max 34-tooth sprocket

Braking:
- Disc brakes: Shimano CL800, Centerlock, 160 mm

Components:
- Handlebar/Stem combo: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm depth, 124 mm height, 35 cm width at the dropouts, 38 cm width at the bends, 80 mm stem length (XS), 40 cm width - 90 mm stem (S), 42 cm width - 90 mm stem (M), width 42 cm - 100 mm stem (ML, L), width 44 cm - 110 mm stem (XL)
- Saddle: Aeolus RSL, carbon rails, width 155 mm (XS, S), 145 mm (M, ML, L, XL)

Wheels:
- Wheels: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim height
- Tyres: Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm

General information:
- Colour: Carbon Red Smoke

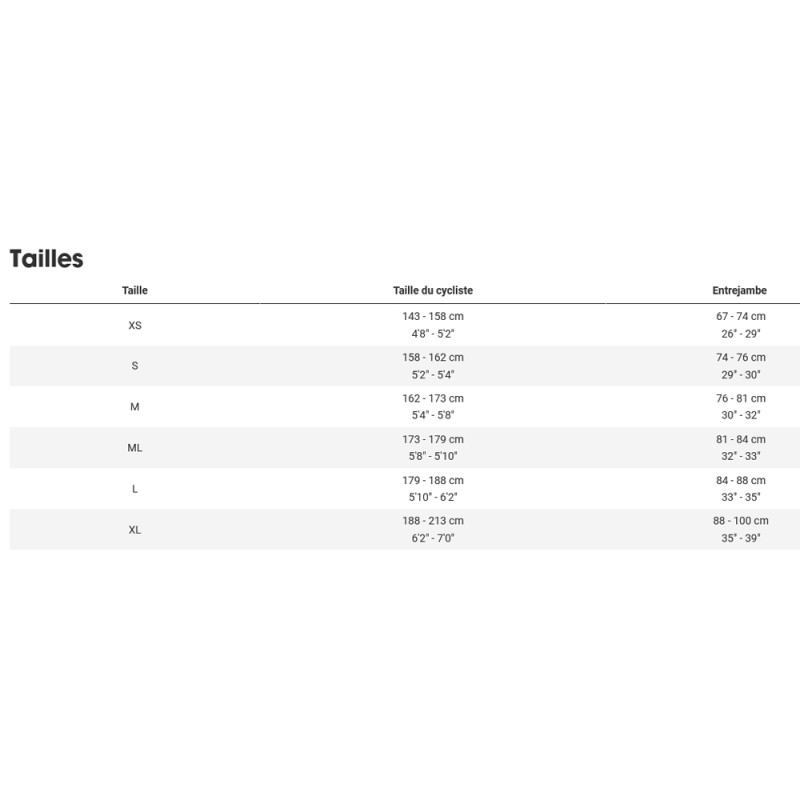

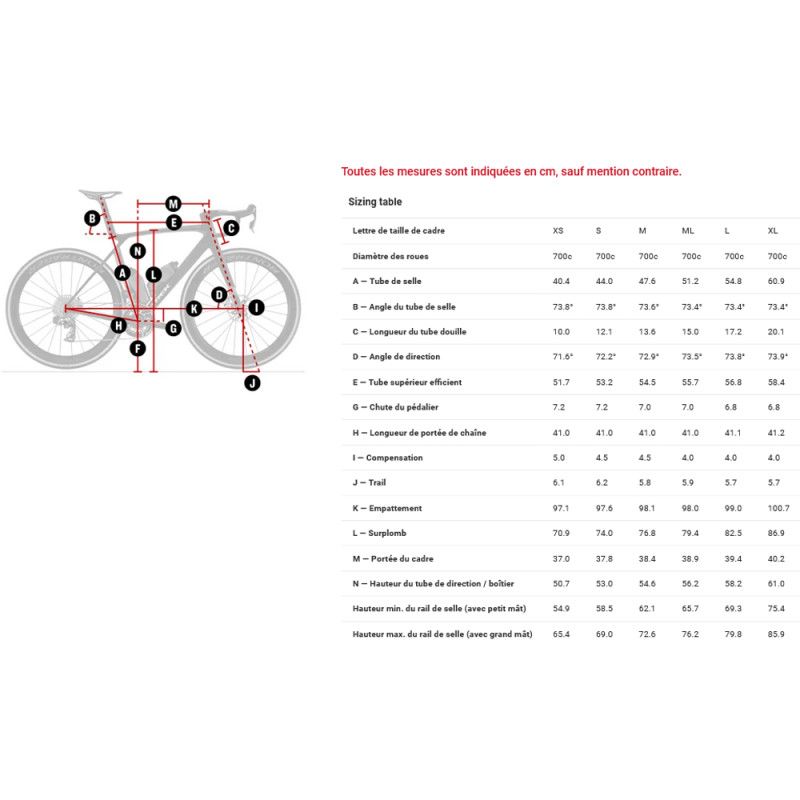

- Sizes: XS, S, M, M-L, L, XL
- Weight: 7.08 kg (ML)
