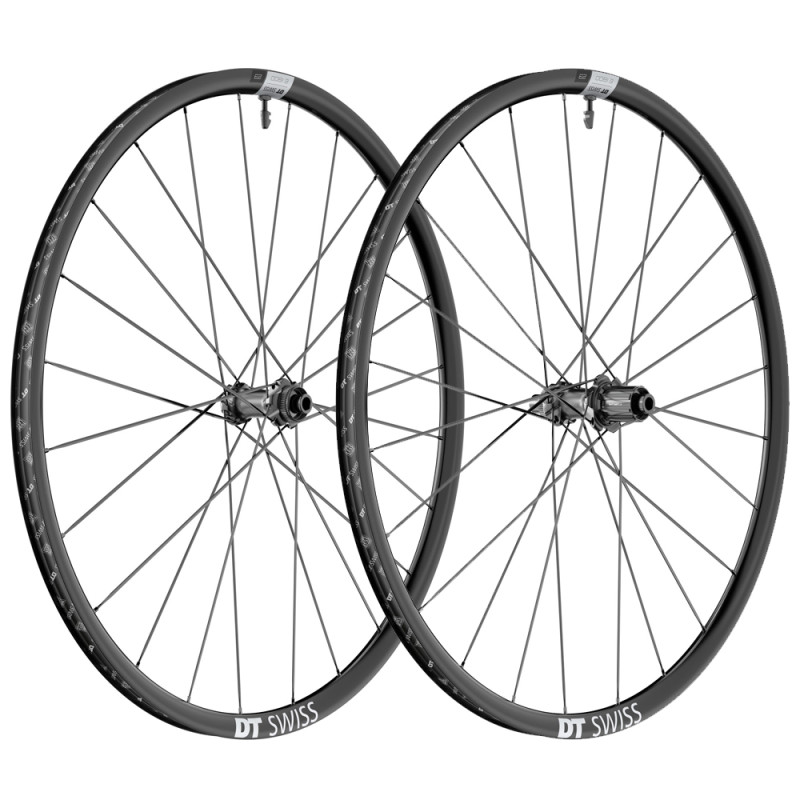

DT Swiss E 1800 Spline 23 Disc road bike wheels

The DT Swiss E 1800 Spline 23 Disc wheels are designed for long rides; they stand out for their versatility and their ability to make your ride easier. No matter the route you take, whilst they excel on climbs, they’ll be just as effective on the flat and just as manoeuvrable on descents. Wheels designed to cover the miles with a smooth and comfortable ride.

Part of the Endurance range at DT Swiss, this pair of wheels nevertheless features high-end technologies. Firstly, the wider rim, compared to the previous version, now allows for the use of a tubeless system and the fitting of wide tyres. This enhances comfort, as well as the grip and versatility these wheels offer.
Lighter yet more durable, the DT New Aero II straight-pull spokes provide excellent stability, whilst their flat profile offers aerodynamic benefits.

Evolution is the key word that defines this pair of wheels. Indeed, just like the spokes and the new rim, the Ratchet LN system has also been updated. Gone are the 3-pawl freewheel bodies; the new system offers superior reliability thanks to the simultaneous engagement of all the teeth, without losing its historic signature sound.

Technical specifications:

- Discipline: road
- Drive train
- Material: aluminium
- Braking system: disc
- Tyre type: Tubeless Ready
- Tyre interface: Hooked / Crotchet tubeless TC

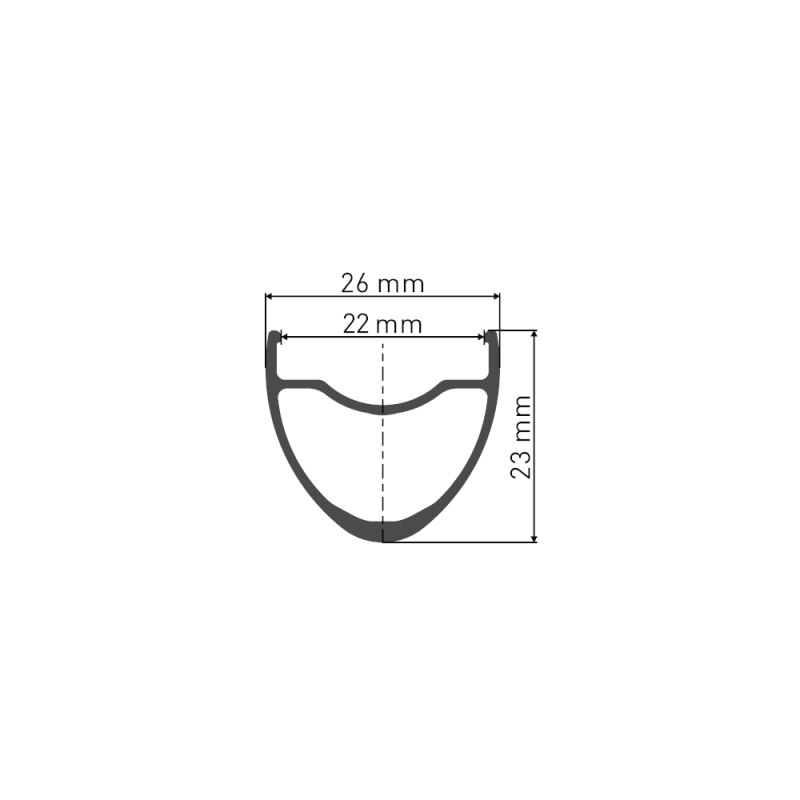

- Profile height: 23 mm
- Internal rim width: 22 mm
- External rim width: 26 mm
- Maximum weight limit: 120 kg
- ASTM Classification: Level 2

Weight: 1787 grams per pair

Hubs:

- Aluminium axles: 100 mm front, 142 mm rear
- Hubs: DT Swiss 370
- Freewheel system: Ratchet LN 18
- Freewheel body: Shimano Road 11SP / XDR

Spokes:

- Spokes: DT new aero II straightpull
- Nuts: DT ProLock Squorx ProHead aluminium

Included: 25mm tubeless tape, black aluminium TL valve 18-25mm
