13.10kg - Carbon frame
Rider Elite XC for 5 years

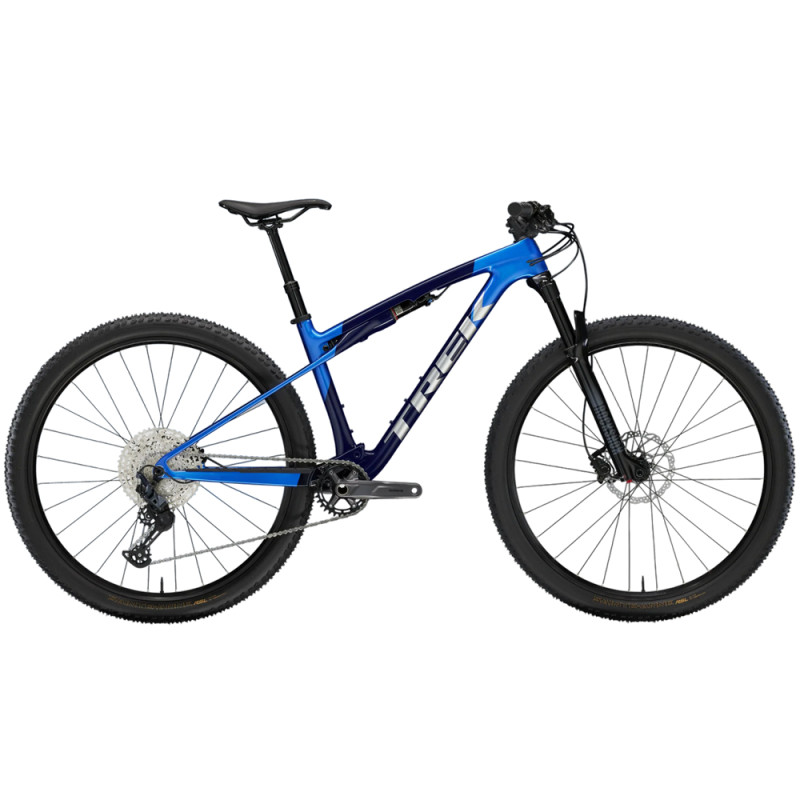

The Supercaliber SL 9.6’s carbon frame is the heart of this machine. It offers the perfect balance between stiffness and compliance, allowing you to transfer all your power exactly where you need it. This frame is designed to maximise your efficiency on the steepest climbs and the most technical descents.
At the rear, you’ll find the IsoStrut suspension, designed to provide the perfect amount of damping. It absorbs shocks on rough sections of XC trails whilst offering a solid platform for explosive acceleration.
The Supercaliber SL 9.6 is equipped with a Shimano SLX 12-speed drivetrain that offers an incredibly versatile gear range. Whether you’re tackling a steep climb or launching a breakaway, this drivetrain ensures you always have the right gear at your fingertips.
Frame:
- Frame: SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
- Fork: RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel
- Rear shock: Trek IsoStrut, RockShox SIDLuxe, dual-position shock
Drivetrain:
- Shifters: Shimano Deore M6100, 12-speed
- Rear derailleur: Shimano SLX M7100, long cage
- Crankset: Shimano MT512, 32T, 55 mm chainline
- Chain: Shimano Deore M6100, 12-speed
- Bottom bracket: Shimano MT500, 92 mm, PressFit
Brakes:
- Brakes: Shimano, hydraulic disc
- Rotors: 160mm front/rear
Components:
- Handlebar: Bontrager Rhythm Comp, aluminium, 31.8 mm, 15 mm rise, 750 mm width
- Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7 degrees,
- Grips: Bontrager XR Trail Elite, nylon lock-on
- Saddle: Bontrager Verse Comp, steel rails, width 145 mm
- Seatpost: TranzX JD-YSP39, internal routing, 31.6 mm, travel 100 mm (S) 120 mm (M-ML) 150 mm (L-XXL)
Wheels:
- Wheels: Bontrager Kovee, double-walled, Tubeless Ready
General information:
- Colour: Alpine Blue
- Sizes: S / M / M-L / L / XL / XXL
- Size geometries in the photo gallery
- Weight: 13.10kg
- Maximum weight: 136kg
- Brand: Trek
| Colours | blue |
|---|---|
| Size | L |
| Type of braking | disc brakes |
| EAN | 0768682170892 |
| Supplier reference | 5302865 |

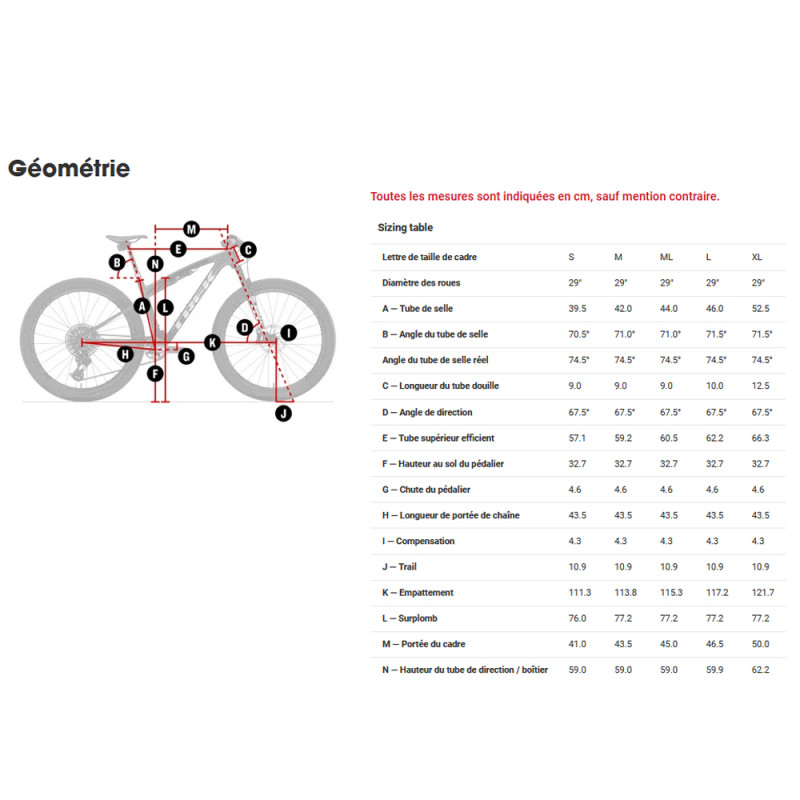

| (mm) | S | M | ML | L | XL |
|---|---|---|---|---|---|
| A (Stack) | 590 | 590 | 590 | 599 | 622 |
| B (Reach) | 410 | 435 | 450 | 465 | 500 |
| C (Head tube length) | 90 | 90 | 90 | 100 | 125 |
| D (Head angle) | 67.5 | 67.5 | 67.5 | 67.5 | 67.5 |
| E (Bottom bracket axis - top of seat tube) | 395 | 420 | 440 | 460 | 525 |
| F (Horizontal length) | 571 | 592 | 605 | 622 | 663 |
| Colours | Size | Type of braking | Availability | Price | Supplier reference | EAN | |
|---|---|---|---|---|---|---|---|
| Web | Stores | ||||||
| blue | S | disc brakes | Sold out | Sold out | €3,999.00 | 5302862 | 0768682149195 |
| blue | M | disc brakes | Sold out | Sold out | €3,999.00 | 5302863 | 0768682149096 |
| blue | L | disc brakes | Sold out | Sold out | €3,999.00 | 5302865 | 0768682170892 |
| blue | M-L | disc brakes | Sold out | Sold out | €3,999.00 | 5302864 | 0768682171059 |
| blue | XL | disc brakes | Sold out | Sold out | €3,999.00 | 5302866 | 0768682170977 |
