Shimano BL-MT201 1000mm front left MTB disc brake – EMT201KLFPRA100

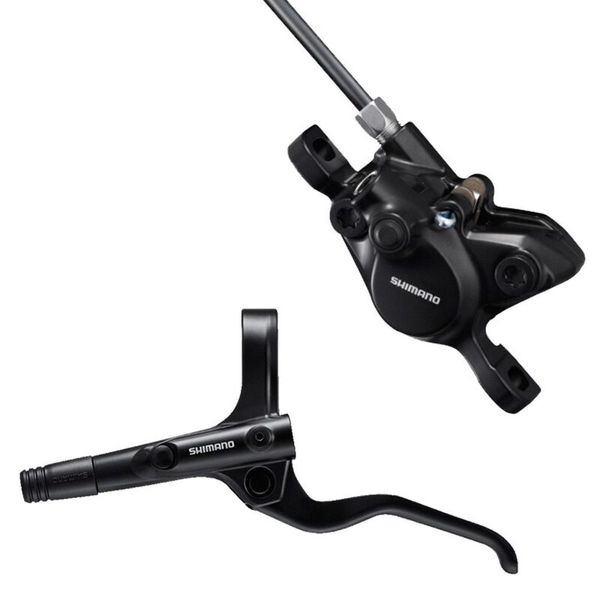

The Shimano BL-MT201 EMT201KLFPRA100 front left MTB disc brake is a hydraulic braking system designed to provide reliable, progressive and easy-to-control braking. It combines the Shimano BL-MT201 lever with the BR-MT200 2-piston hydraulic caliper, featuring a 1000 mm hose.

Particularly suited to mountain bikes, but also to trekking bikes, hybrid bikes and certain electric bikes, this Shimano brake is a versatile solution for replacing or fitting to the front wheel of a bike. Its ergonomic 3-finger lever makes it easy to grip and allows you to modulate braking power effectively.

The system operates using Shimano mineral oil and is designed for easy maintenance. The caliper features a Post Mount attachment and uses resin brake pads.

Key features of the Shimano BL-MT201

• Front hydraulic disc brake for mountain bikes.
• Front left position.
• Shimano BL-MT201 ergonomic 3-finger lever.
• BR-MT200 2-piston caliper.
• 1000 mm hydraulic hose, which can be shortened depending on the installation.
• Operates with Shimano mineral oil.
• B01S resin brake pads, without cooling fins.
• Post-mount caliper.
• One-way bleeding system for easy maintenance.
• Brake suitable for mountain bikes, trekking bikes, hybrid bikes and certain e-bike configurations.
• Manufacturer’s reference: EMT201KLFPRA100.

A versatile Shimano hydraulic brake

The Shimano BL-MT201 has been designed to offer accessible and high-performance hydraulic braking for everyday use. Its 3-finger lever offers good ergonomics and allows for gradual control of the available braking power.

The BR-MT200 2-piston caliper effectively completes the system. This design is particularly suited to cyclists seeking reliable braking for leisure mountain biking, XC, trail riding, trekking or everyday commuting.

The 1000 mm hose is the right length for most front-end set-ups. It can be shortened to ensure a neat routing that fits the frame and fork perfectly.

Installation and compatibility

The BR-MT200 caliper is designed for Post Mount mounting. If your fork uses a different mounting standard, a suitable adapter may be required.

The system uses a 1000 mmShimano SM-BH59-JK-SS hose and operates with Shimano mineral oil. The kit comes with the necessary components for connecting the hose and with resin pads.

Before purchasing, it is recommended that you check:

• the mounting side: front left;
• the mounting standard of your fork;
• the diameter and type of disc used;
• the required hose length;
• whether the brake pads and rotor are compatible with your system.

Please note: the brake disc and adapter are not included with this product.
