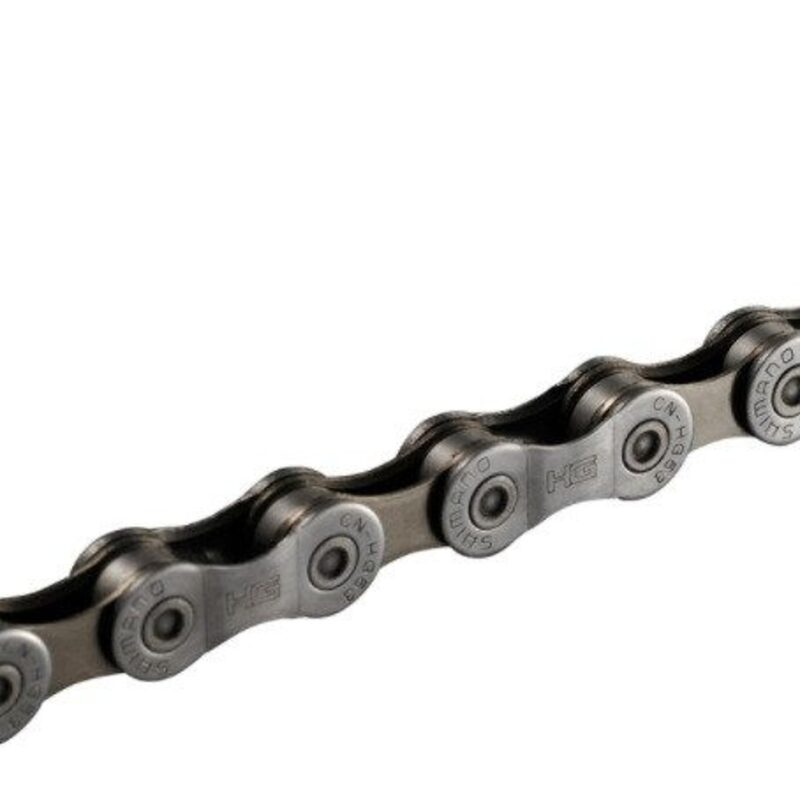

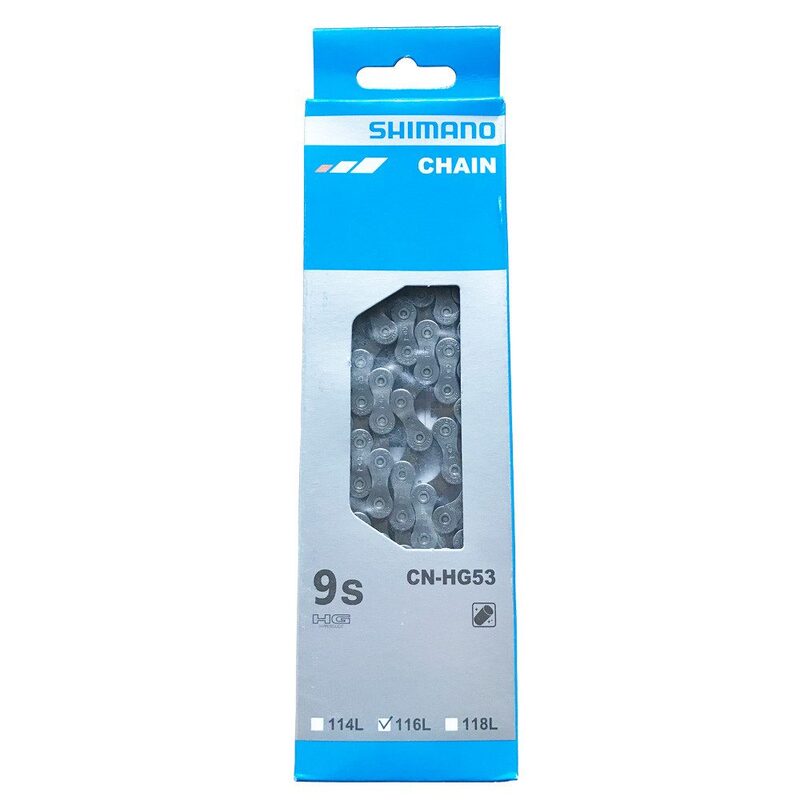

Shimano CN-HG53 9-speed cycle chain, 116 links - ECNHG53C116I

The CN-HG53Shimano is a drivetrain chain designed for 9-speed systems Shimano. With its 116 links, it is the ideal solution for replacing a worn chain and restoring smooth, precise drivetrain performance.

Suitable for mountain bikes, road bikes, trekking bikes and city bikes alike, the CN-HG53 benefits from Shimano ’s expertise in drivetrain components. It is designed to work with compatible Shimano 9-speed drivetrains and ensure smooth gear changes.

The chain plays a vital role in the efficiency and smooth operation of a drivetrain. A clean, properly lubricated chain, replaced before it becomes excessively worn, helps maintain gear-changing performance and minimises premature wear on the cassette and chainrings.

The CN-HG53 therefore offers a reliable solution for the maintenance or refurbishment of a 9-speed Shimano drivetrain.

Key features of the Shimano CN-HG53

• Shimano 9-speed chain.
• Part number ECNHG53C116I.
• 116 links.
• Designed for compatible Shimano drivetrains.
• HYPERGLIDE (HG) technology.
• Suitable for mountain bikes and road bikes.
• Also suitable for trekking and general-purpose use.
• Smooth and precise gear changes.
• Reliable for everyday or sports use.
• Ideal as a replacement for a worn chain.
• Compatible with the corresponding Shimano 9-speed drivetrains.

A chain designed for Shimano 9-speed drivetrains

The CN-HG53 belongs to the Shimano chain family, designed for Hyperglide drivetrains. This design allows the chain to work in conjunction with the specific tooth profiles of compatible Shimano cassettes and chainrings.

On a 9-speed drivetrain, the precision of gear shifting depends on many factors: the shifter, derailleur, cassette, chain and system adjustment. A chain that meets the drivetrain’s specifications is therefore essential for optimal performance.

The CN-HG53 is particularly well-suited to bikes fitted with 9-speed drivetrains— Shimano —which have been in use for many years, making it a valuable reference for the maintenance and repair of bikes that are still widely equipped with this generation of drivetrain.

116 links: a versatile length

The CN-HG53 chain is available here in a 116-link version.

This length is suitable for many 9-speed set-ups, but it must always be adjusted to fit the bike during fitting. The required length depends, in particular, on:

• the number of teeth on the chainring;
• the size of the largest sprocket;
• the frame chainstay length;
• the drivetrain configuration;
• the length of the original chain.

A new chain may therefore need to be shortened before fitting.

When should you replace your bike chain?

A chain wears out gradually at its links. This wear causes its effective length to increase, a phenomenon often referred to as ‘stretch’.

Riding for too long with a worn chain can lead to:

• a deterioration in the quality of gear changes;
• noises from the drivetrain;
• the chain jumping off the sprockets;
• accelerated wear of the cassette;
• wear on the chainrings;
• a reduction in drivetrain efficiency.

Using a chain wear indicator helps you determine the right time to replace the chain.

Fitting the Shimano CN-HG53 chain

When replacing the chain, it is important to measure the length of the new chain correctly.

After removing the old chain, you must check the required length based on the bike’s configuration. A chain that is too long or too short can affect the operation of the rear derailleur.

As the CN-HG53 is a 9-speed chain, it must be fitted with a compatible drivetrain. It is not designed for modern 10-, 11- or 12-speed drivetrains.

After fitting, check:

• that the chain is routed correctly through the derailleur;
• that the chain closes properly;
• the chain tension across the different gears;
• that the gear changes are working properly;
• that there are no stiff spots in the chain.

Maintenance and service life

The service life of a chain varies greatly depending on how it is used. A bike ridden mainly on dry roads does not place the same demands on the chain as a mountain bike used in mud or sand.

To extend the service life of the CN-HG53, we recommend:

• clean the chain regularly;
• use a lubricant suitable for the riding conditions;
• avoid leaving the chain heavily contaminated with sand or mud;
• wipe off any excess lubricant after application;
• check the chain for wear regularly;
• avoid riding for long periods with a heavily worn chain.

Workshop tip: before ordering a chain, don’t rely solely on the number of speeds. Also check that it is compatible with your cassette, derailleur and crankset.

When replacing a heavily worn chain, also check the cassette. If it has already been severely marked by the old chain, a new chain may cause skipping under heavy load.

Finally, don’t try to keep a worn chain until it breaks: a preventative replacement is generally much cheaper than having to replace the chain, cassette and, possibly, the chainrings all at once.

Technical specifications
