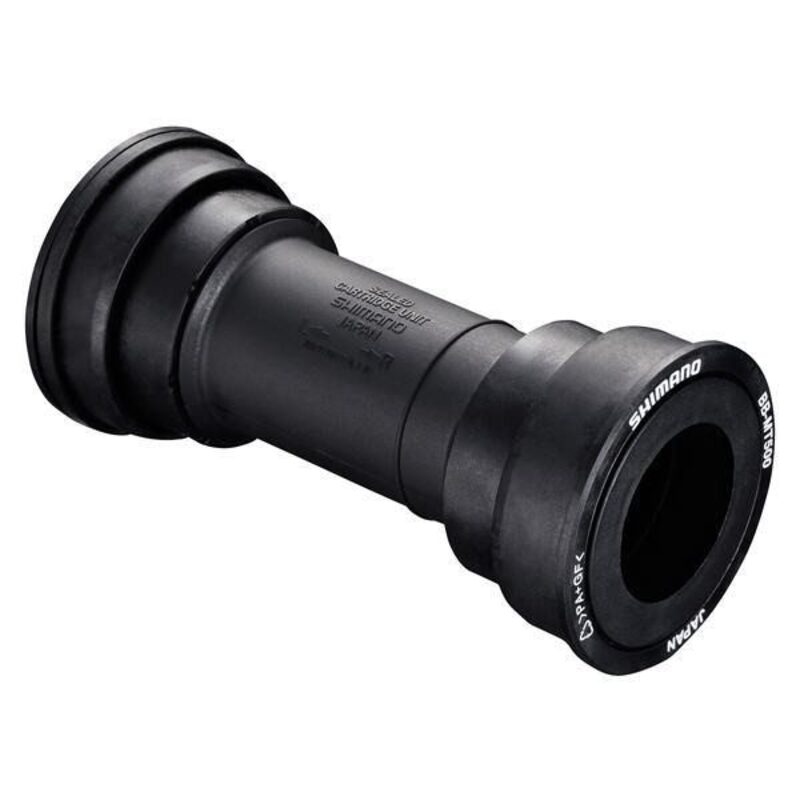

The BB-MT500-PAShimano is a PressFit bottom bracket designed for MTB frames fitted with a BB89.5 or BB92 socket. Developed using Hollowtech II technology, it ensures excellent retention of the 24 mm bottom bracket axle whilst promoting efficient power transfer. Thanks to its high-quality bearings and reinforced sealing, it offers smooth rotation and impressive durability for regular use in XC, trail riding or sport-oriented touring.
Compatible with Hollowtech II cranksets from Shimano, and many other 24 mm-axle cranksets, this model fits frames with an internal diameter of 41 mm. Its level of water resistance, comparable to that of the higher-end ‘ Shimano ’ models, helps to limit the ingress of water and mud, thereby maintaining performance over time.
| Bottom bracket | Pressfit BB86-BB92 41x86-92 |
|---|---|
| Crankset compatibility | Shimano and Rotor 24 mm axle |
| Bearings | steel |
| EAN | 4524667921387 |
| Supplier reference | EBBMT500PA |
Average rating: 4.5 out of 5
Based on 4 reviews
Show attestation (opens in a new window)
Very good crankset box for winter. The last one lasted me 3000km in all weather. Just a little cleaning from time to time.
Case that I change every year after good winter use. Does the job.
Super price for mountain biking in all conditions
compliant with the order, deadline respected, easy to mount.
No review matches this rating.
4 reviews shown out of 4
The BB-MT500-PA is designed for Shimano Hollowtech II cranksets fitted with a 24 mm axle. It may also be compatible with other cranksets using this standard.
Both of these standards use an internal diameter of 41 mm. The main difference lies in the frame width: 89.5 mm or 92 mm. Shimano states that the BB-MT500-PA is compatible with both.
Yes. Its improved water resistance and the quality of its bearings mean it can be used regularly in demanding conditions, including on wet or muddy terrain.
The frame must have a PressFit socket with an internal diameter of 41 mm to accommodate this bottom bracket.
Yes, many users and mechanics consider the BB-MT500-PA to be a direct replacement for the BB71-41A on BB89.5/BB92-compatible frames.
