Cleats compatible with the new SPD-SLR system
Road specialist
Shimano ’s SPD-SLR CL-SL130 road bike cleats are designed to enable cyclists using three-screw road shoes to switch to the new SPD-SLR system. Their design offers a wider range of adjustment, which is particularly useful for soles with a fixed attachment, whilst remaining compatible with the new SPD-SLR pedals.
Unlike the SPD-SLR low-stack cleats CL-SL100, CL-SL110 and CL-SL120, the CL-SL130 does not benefit from the low stack height or the weight reduction associated with the integrated SPD-SLR platform. Instead, it prioritises greater freedom of positioning to facilitate adaptation to different shoes and sole configurations.

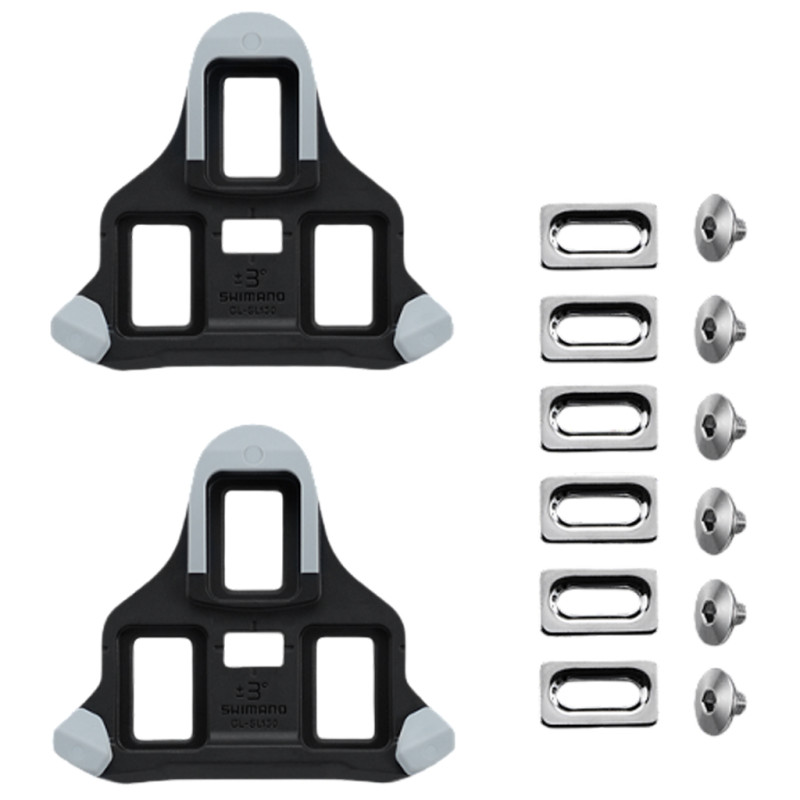

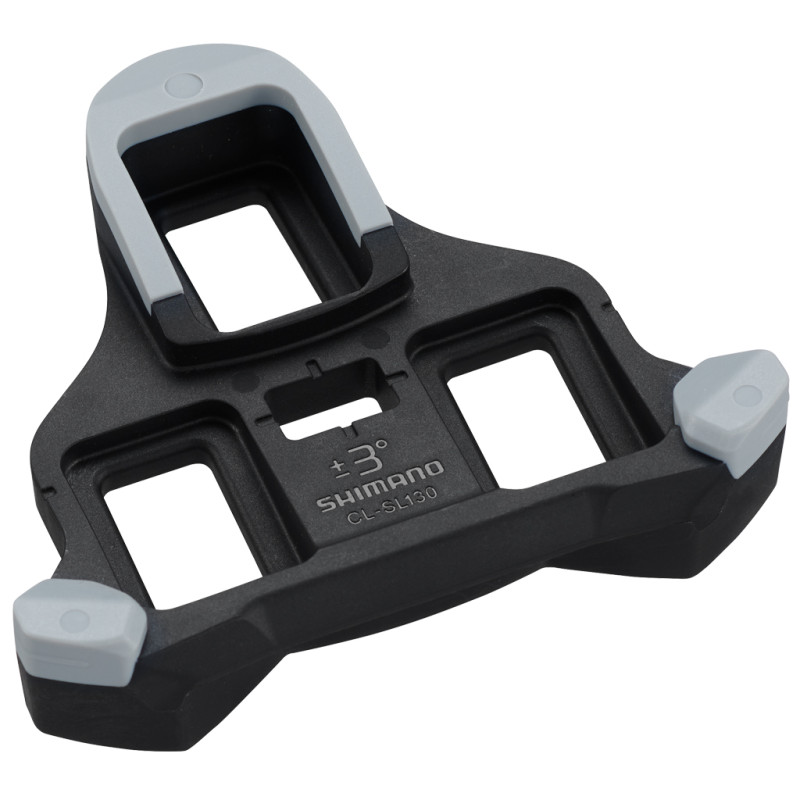

Shimano - SPD-SLR Grey CL-SL130 cleats
- Colour: Grey
- Type: Road cleats
- Fastening: 3 screws
- Compatibility: SPD-SLR ‘ Shimano ’ pedals
- Designed for non- Shimano 3-screw fastening shoes
- Wider adjustment range for fixed-mount soles
- 3 degrees of freedom on each side (6 degrees in total)
- Use: Road / competition / performance
- Brand: Shimano
| Colours | grey |
|---|---|
| EAN | 4550170248109 |
| Supplier reference | ICLSL130 |
This is the new generation of the integrated ‘ Shimano ’ platform (shoes + cleats + pedals). It has been designed as a complete system to improve efficiency, stability and grip. The contact points (shoe–cleat–pedal) have been redesigned for a more direct power transfer, a lower stack height and faster engagement.
Stack height reduced by 2.3 mm: the foot is closer to the pedal axle → better stability, better power transfer and greater control.
Faster and more natural engagement: wider engagement zone + narrower engagement angle (10.5° compared to 15.5° on SPD-SL).
Lighter: up to 25 per cent lighter than equivalent SPD-SL cleats, whilst maintaining the expected durability.
Easier adjustment: high-contrast alignment markers for more intuitive and precise positioning and repositioning.
CL-SL100 - Red: Fixed position, 0° of float. Maximum power transfer and a feeling of total stability.
CL-SL110 - Yellow: 3 degrees of rotation on each side (6 degrees in total). Very stable platform. Balances efficiency with limited movement. Supplied with R9300 and R8200 pedals.
CL-SL120 – Blue: 1 degree of rotation on each side (2 degrees in total). Greater comfort and less strain on the joints. Suitable for a wide range of riders.
CL-SL130 – Grey: For transitioning to SPD-SLR with most non-Shimano, 3-hole road shoes. Wider adjustment range, but without the low stack height or weight savings of other SPD-SLR cleats.

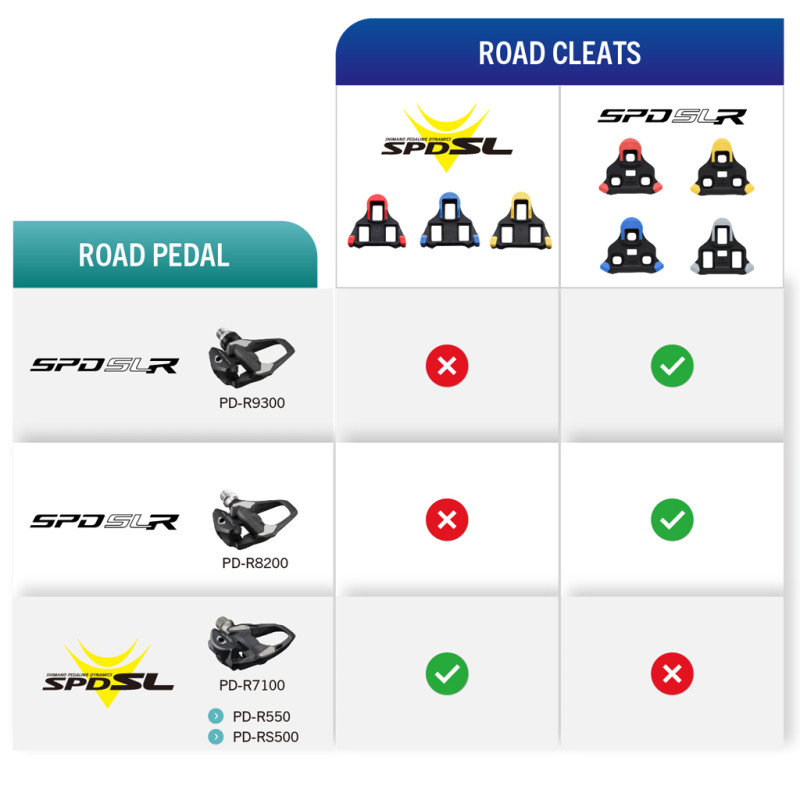

SPD-SLR cleats are designed exclusively for SPD-SLR pedals. They are not backwards compatible with SPD-SL pedals.
SPD-SLR cleats (particularly the CL-SL100/110/120 models) are compatible with existing SPD-SL road shoes Shimano, but you can only fully benefit from their advantages (low stack height, light weight, etc.) only when using the complete system (SPD-SLR shoes + cleats + pedals).
Low-stack cleats (CL-SL100, 110, 120) simplify lateral positioning. The fore-aft adjustment depends on the range available on the shoe.
The CL-SL130 is particularly suitable for shoes with a fixed sole attachment and offers greater adjustment flexibility.
Red (CL-SL100): for sprinters or cyclists seeking maximum efficiency and stiffness (very precise positioning recommended).
Yellow (CL-SL110): the versatile choice and the one supplied as standard with the new top-of-the-range pedals. A good balance between stability and efficiency.
Blue (CL-SL120): greater comfort and freedom to reduce strain on the joints.
Grey (CL-SL130): a transitional solution if you have non-Shimano s or a fixed sole.
High-contrast alignment marks make installation and adjustments easier.
Simplified lateral positioning on low-stack models.
As usual: temporary tightening → engagement/disengagement tests → fine-tuning → final tightening to the recommended torque (generally 5–6 Nm for 3-hole cleats Shimano; check the exact instructions).
It is recommended that you test the system on a flat, quiet stretch of road to begin with.
Pedals:
DURA-ACE PD-R9300: top-of-the-range (carbon body, stainless steel contact plate, 11% greater stiffness, 47% lower rotational resistance compared to the previous model, recommended retail price €249.99).
ULTEGRA PD-R8200: same SPD-SLR design for everyday use and competition (RRP €149.99).
Both offer a low stack height, a wide platform and the SPD-SLR interface.
The shoes:
S-PHYRE SH-RC910 (flagship) and SH-RC810: designed for the SPD-SLR platform with an extended cleat adjustment range, DYNALAST 2.0 technology, etc.
