Argon 18 E-119 Tri Disc Brake integrated disc braking system

Designed specifically for the frame and fork of the E-119 Tri+ Disc, this hydraulic disc braking system fully integrates the calipers into the frame/fork assembly. The result of extensive R&D work (in-house prototyping, FEA analyses, thermal CFD and ISO testing), it solves the classic problem of overheating in recessed calipers thanks to dedicated air ducts that ensure effective cooling of the brake pads and caliper. The fork temperature remains well below critical thresholds even during prolonged braking, whilst ensuring stiffness, progressive response and feel at the lever.

This integrated design completely conceals the calipers and hoses, eliminating the usual aerodynamic penalty associated with disc brakes. The gains measured by CFD amount to approximately 1 W (at 300 W on the flat) compared with conventional external calipers, representing a time saving over long distances, without compromising braking power or ease of maintenance and adjustment.

Technical specifications:

- Type: integrated hydraulic disc brakes (Argon 18 Integrated Brake System / collaboration TRP –Tektro)
- Exclusive compatibility: Argon 18 E-119 Tri+ Disc / E-119T Disc frame and fork
- Discs: 140 mm only (front and rear) – optimised for TRP TR140-25 (Centerlock)
- Calipers: integrated into the fork (front) and the seatstay/chainstay (rear), with cooling air ducts
- Mounting: Front: M5 × 27 mm screws (torque 7 Nm) / Rear: M5 × 20 mm bolts (torque 7 Nm) – rear mounting thickness 10 mm
- Brake pads: Tektro F10RS (semi-metallic) or compatible Shimano K02S / K04S
- Hydraulic hose: fully integrated and routed through the frame/fork
- Performance verified: ISO braking and heat resistance tests passed; maximum fork temperature ≈ 65 °C under severe test conditions
- Aerodynamic advantage: significant reduction in drag (≈ 25 per cent on the local contribution from the caliper, rotor and fork area) compared to external disc brakes; gain of approximately 1 W compared to conventional calipers
- Maintenance: adjustable calipers, accessible bleeding and pad replacement, spare parts available (front and rear assemblies)

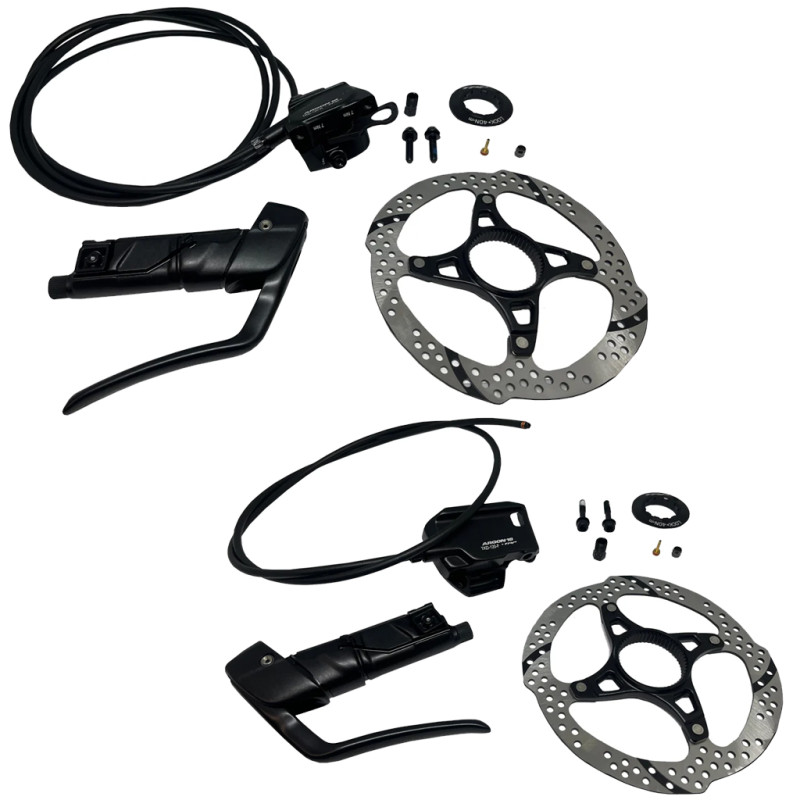

- Kit contents: 2 nuts 100388 E-119 TRI+ Disc Bike TRP Centrelock Lockring / 2 discs 81141 E-119 TRI+ Disc Bike TRP Disc TR140-25 / 1 rear lever with caliper 81546 / 1 front lever with caliper 81554
