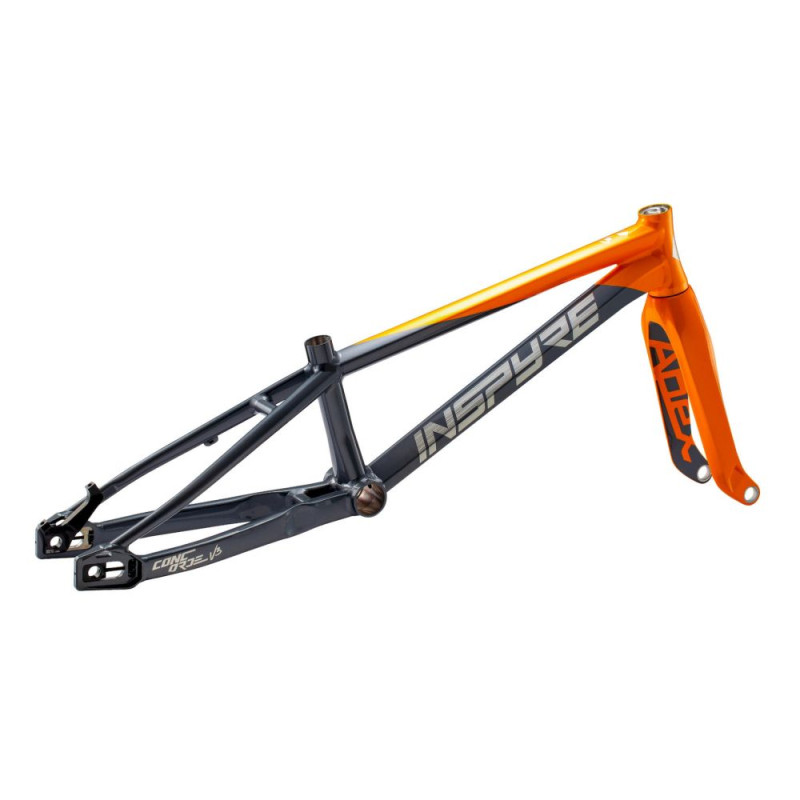

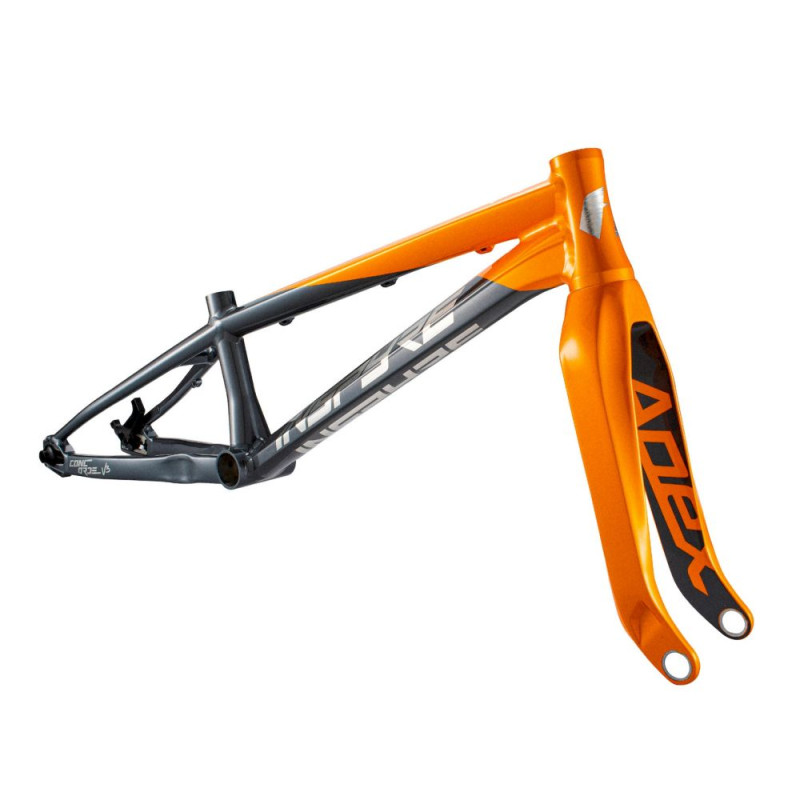

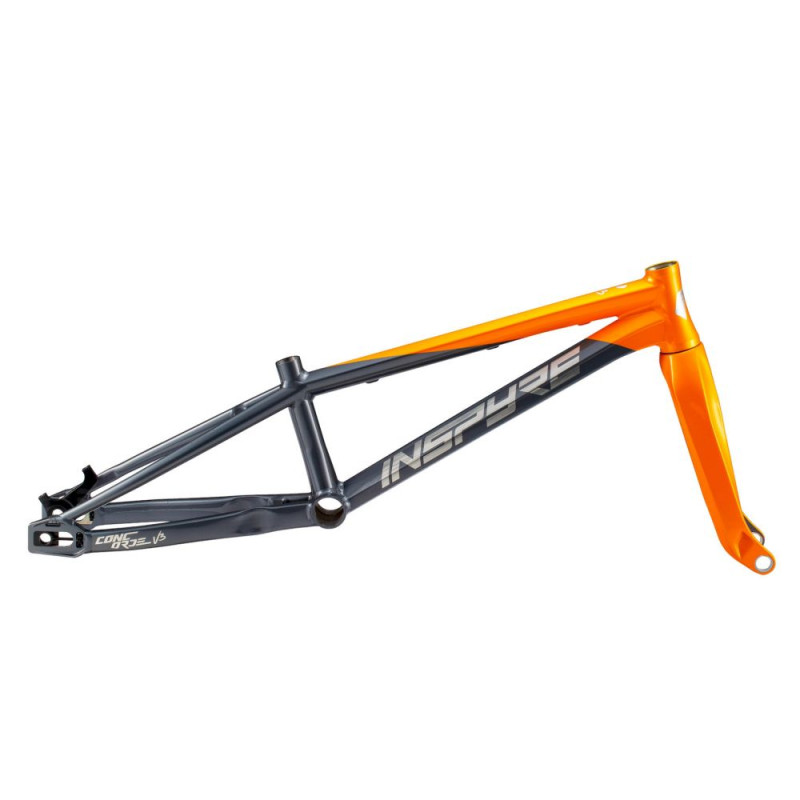

Inspyre Concorde V3 Orange / Gun Metal Expert XL BMX Frame/Fork Kit

The Inspyre Concorde V3 frame and fork kit is a top-of-the-range BMX reference Race. Designed for demanding riders, it offers an exceptional balance of lightness, rigidity and precision, ideal for performance on the most competitive tracks.

Each tube of the frame is hydroformed to optimise stress distribution and maximise performance. Engineering work on the junction between the down tube, bottom bracket and rear chainstays produces remarkable lateral rigidity, essential for direct, efficient power transmission. The result is explosive acceleration and excellent responsiveness on corner exits.

The flat welds provide a top-of-the-range finish and meticulous aesthetic appearance, enhanced by premium paintwork with integrated stickers under varnish.

The APEX Carbon fork completes the package perfectly. It combines different carbon fibres to absorb stresses (torsion, impact, lateral loads) while maintaining optimum steering precision. Its 7075-T6 aluminium steerer tube and CNC-machined dropouts guarantee solidity and reliability in racing conditions.

Designed for pure performance, this kit is aimed at riders looking for a rigid, fast and ultra-efficient set-up.

Technical specifications:

Frame:
- Colour: Orange / Gun Metal
- Size: Expert XL
- Material: Aluminium AL66
- Multi-thickness hydroformed tubes
- Welds: Flat weld (top-of-the-range finish)
- Headset:
- Standard: IS42/IS42 & IS42/IS52
- Bottom bracket:
- BSA 68 or BB86 depending on size
- Brakes:
- Compatible with Post Mount hydraulic brakes
- 120 mm disc (140 mm with adapter)
- Rear dropouts:
- SWELL V2 with 25 mm adjustment range
- 7075-T6 aluminium inserts
- Axle:
- Compatible with 15 mm thru axle
- 10 mm adapters supplied

Forks:
- Model: APEX Carbon
- Construction: multi-directional carbon fibre
- Pivot: 7075-T6 aluminium
- Dropouts: CNC
- Axle:
- 10 mm (Junior to Expert XL)
- 20 mm (Pro and Cruiser)

Compatibility:
- ADS Inspyre chain tensioner
- Headset Pride Racing recommended
