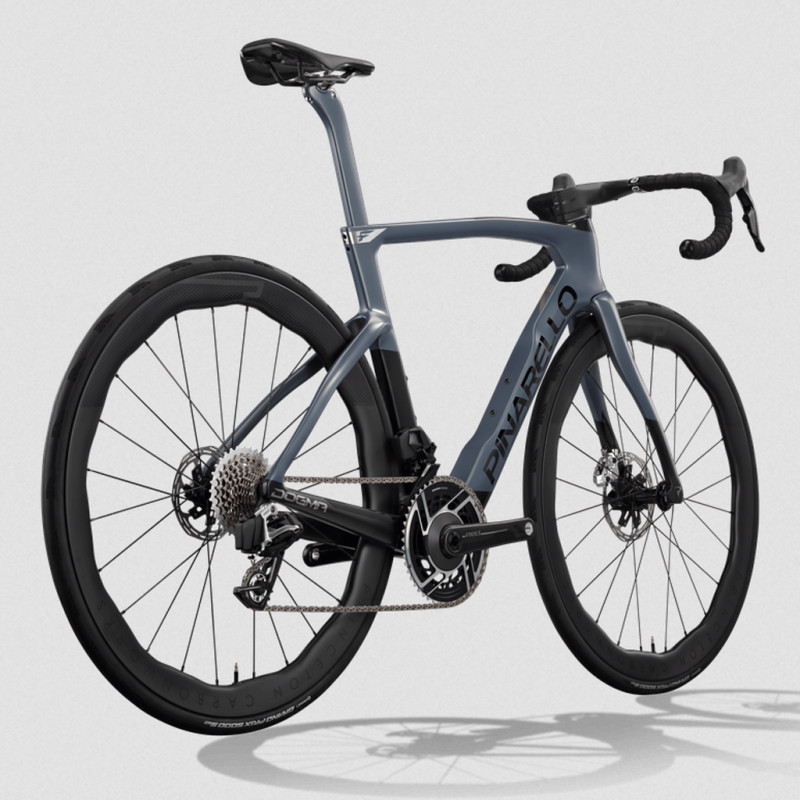

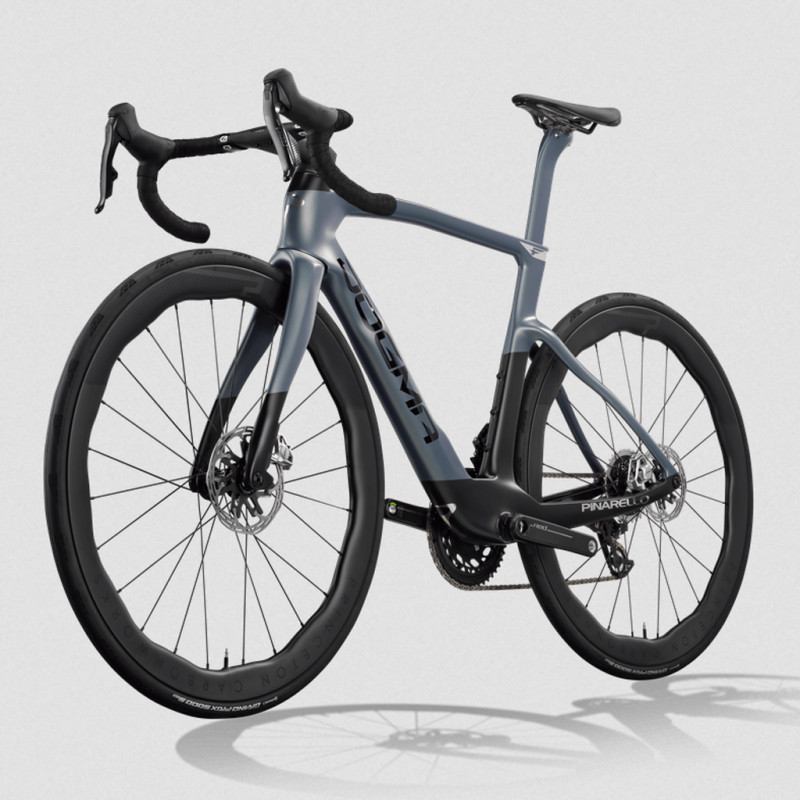

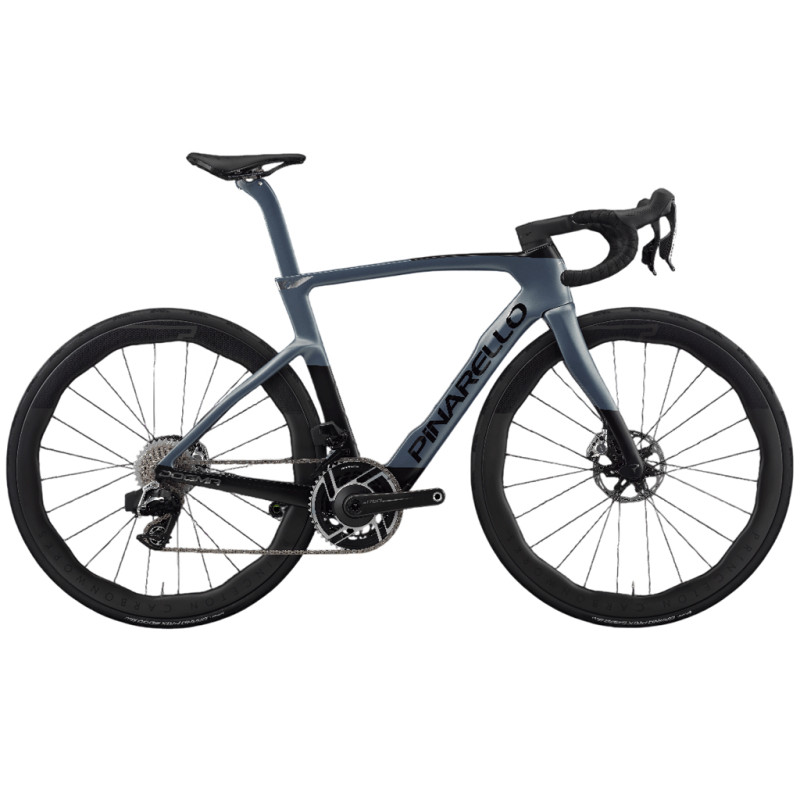

Road bike Pinarello Dogma F Disc Sram Red AXS 12v DT Swiss ARC1450 H101 Luxter Grey Matt

The Pinarello New Dogma F Disc is the bike used by the Ineos Grenadiers team on the roads of the world's greatest races. Made from TorayCa M40X carbon, the frame is lightweight, responsive and offers exceptional lateral rigidity. The entire frame has been redesigned compared to the previous version of the Dogma F. The downtube has been reduced to improve aerodynamic performance, while the headtube has been slimmed down for a sleeker design.

The seatpost is integrated into the frame to lighten the overall weight, while the Onda fork is slimmer and angled to improve handling. The Talon Ultra Fast handlebar and stem combo is lighter and more aerodynamic, allowing you to transmit as much power as possible. This Pinarello New Dogma F Disc H101 Luxter Grey Matt is fitted with a Sram Red AXS 12v electric groupset. To complete the package, the DT Swiss ARC 1450 wheels guarantee exceptional performance and responsiveness on all types of terrain, whether mountain or flat.

Please note that the photo is for information only, this bike is indeed equipped with DT Swiss ARC1450 wheels.

Technical specifications :

Frame:
- Frame: TorayCa M40X, TiCR cable routing
- Fork: New eTICR Onda with Forkflap, 1.5' top and bottom pivot

Drivetrain:
- Crankset: Sram Red AXS 12v
- Cassette: Sram Red AXS 12v
- Chain: Sram Red AXS 12v
- Grips: Sram Red AXS 12v
- Front derailleur: Sram Red AXS 12v
- Rear derailleur: Sram Red AXS 12v

Braking:
- Brakes: Sram Red
- Discs: 160mm front 140mm rear

Components:
- Integrated handlebar-post: Most Talon UltraFast
- Saddle: Most lynx Ultrafast Superflox L Carbon Large 145mm
- Seatpost: Pinarello Aero with 3d printed titanium seat clamp Bottle cage: Most Trap PACF, and Elite Fly 550ml black bottle cage

Wheels:
- Wheels: DT Swiss ARC 1450
- Tyres: Continental GP5000 S TR 28mm

General information:
- Colour: H101 Luxter Grey Matt
- Sizes: 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)
- Brand : Pinarello

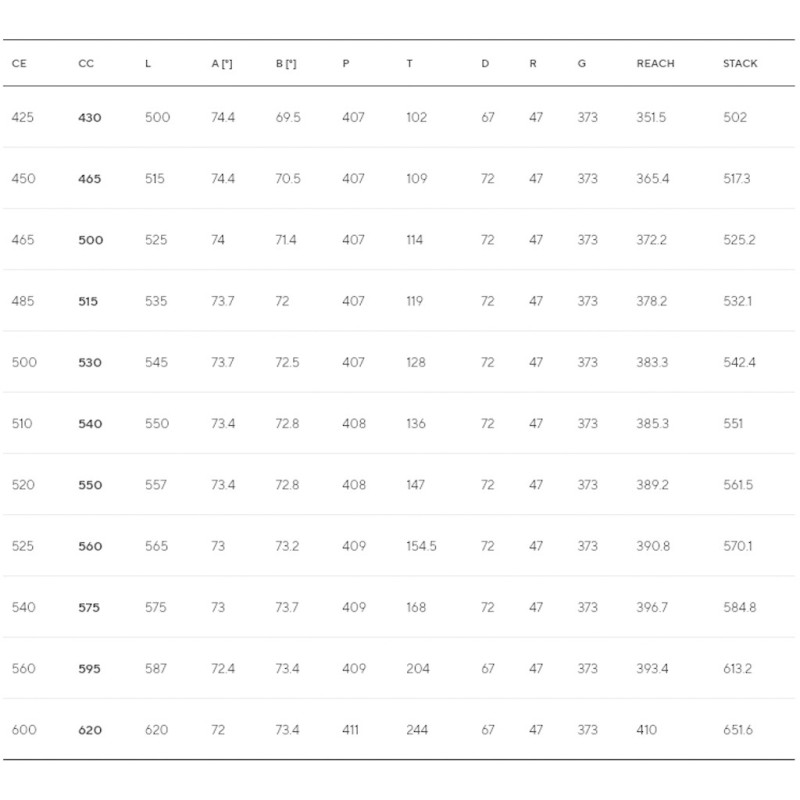

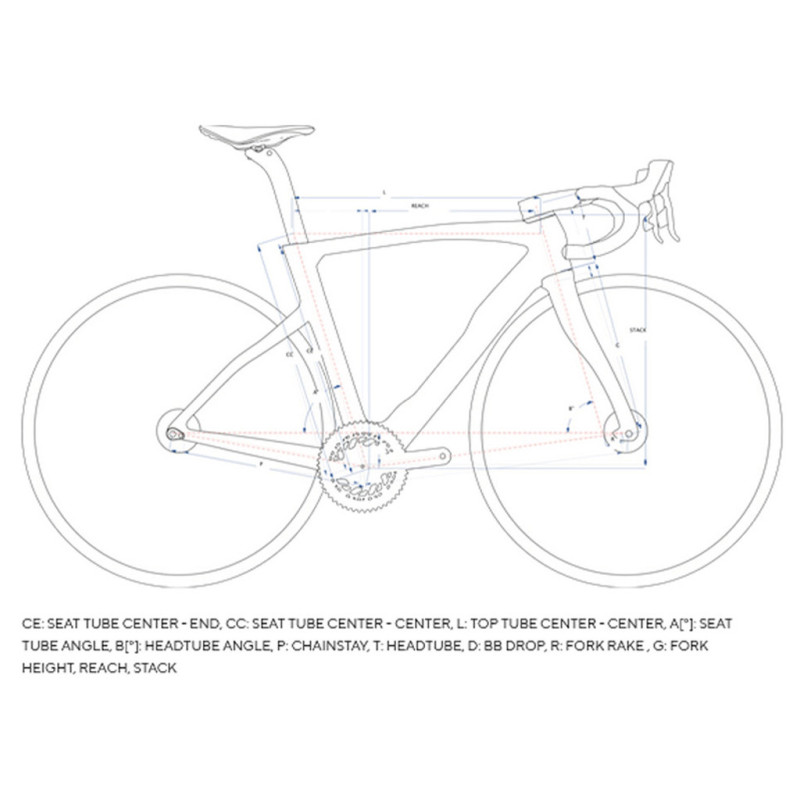

Geometry :

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
