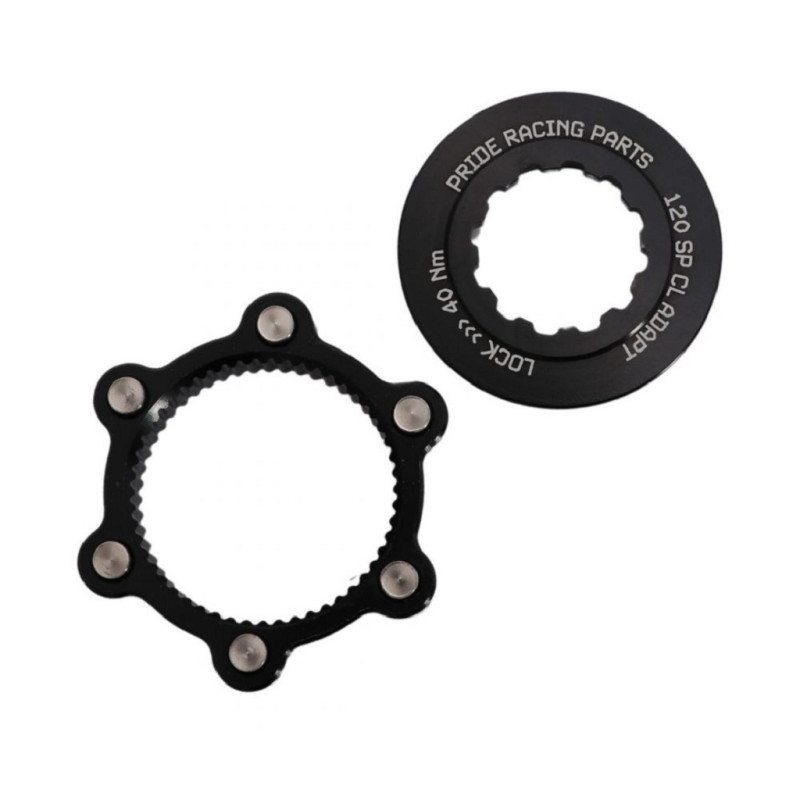

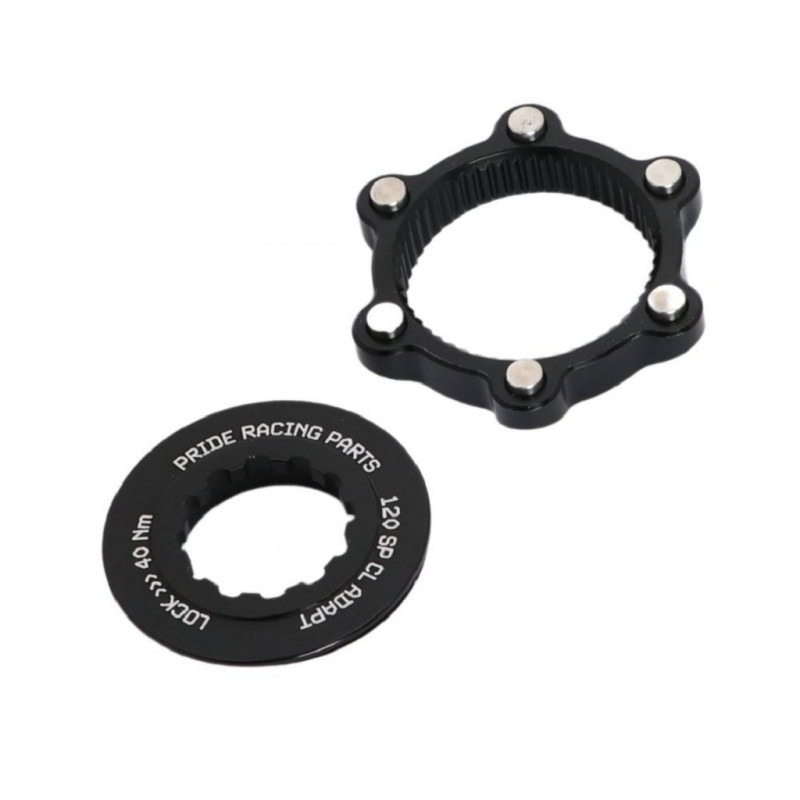

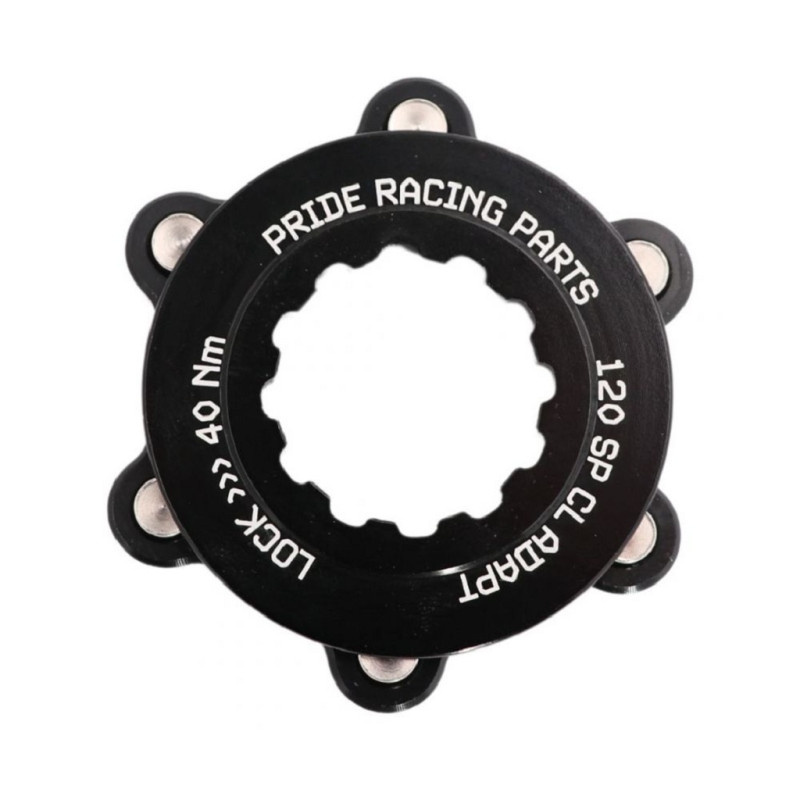

Pride Racing Centerlock SP BMX disc adapter

The Pride Racing Centerlock SP adapter has been specifically developed to allow the fitting of a 6-bolt ISO disc (120–180 mm) to a Centerlock hub, whilst meeting the specific requirements of BMX racing and compact set-ups.

CNC-machined from aluminium for maximum precision, this adapter stands out for its optimised width of 10 mm, which is greater than that of a standard 140 mm adapter. This additional offset prevents any interference between the brake caliper and the spokes, particularly on the rear wheel. The clamping screw has also been redesigned with a cassette-style internal drive, reducing the external offset to eliminate the risk of rubbing against the disc mount.

Thanks to an extended thread, shims can be added for a perfect fit according to your setup. Lightweight, reliable and perfectly suited to the demands of competition, the Centerlock SP is a high-end technical solution for clean and secure installations.

Technical specifications:

- Brand: Pride Racing
- Model: Centerlock SP
- Type: Centerlock to ISO 6-hole adapter
- Material: CNC-machined aluminium
- Width: 10 mm
- Disc compatibility: 120 to 180 mm
- Clamping pattern: Internal – cassette type
- Max. tightening torque: 40 Nm
- Weight: 33 g
