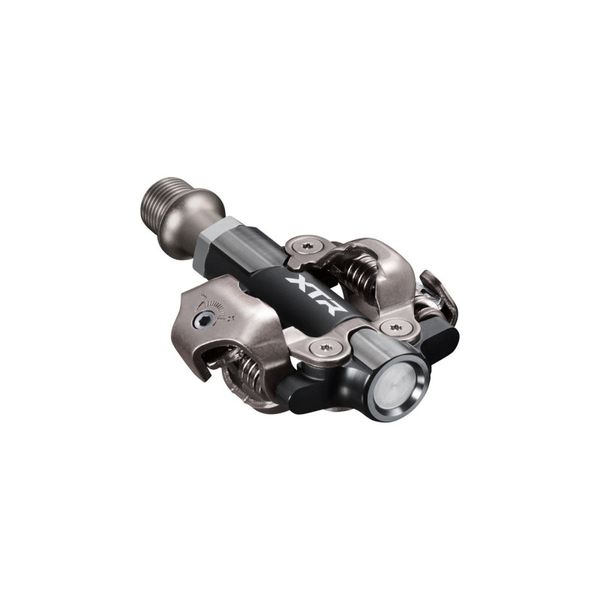

Shimano XTR PD-M9200 Gravel and MTB Pedals – short axle – IPDM9200S1

The pedals Shimano XTR PD-M9200 short-spindle – IPDM9200S1 are top-of-the-range clipless pedals designed for cyclists who Cross-country mountain biking, competitive XC, sport gravel and off-road touring in search of the perfect balance between lightness, pedalling efficiency and reliability.

From the range Shimano XTR, the PD-M9200 is designed for demanding applications. Its mechanism Double-sided SPD enables a quick and reliable engagement, whilst the short axle brings the pedal position closer to the crank to optimise foot position and power transfer.

The reference IPDM9200S1 corresponds to the version short axis of the XTR PD-M9200 pedal. It is particularly aimed at cyclists seeking optimised ergonomics and a reduced Q-factor compared with the standard-axle version.

The strengths of the Shimano XTR PD-M9200

• Clip-in pedals Shimano XTR top-of-the-range.
• Model PD-M9200.
• Reference: IPDM9200S1.
• Version short axis.
• Automatic mechanism Double-sided SPD.
• Design optimised for the XC mountain biking and competition.
• Also suitable for sport gravel.
• Excellent removal of sludge and debris.
• Open design to make it easier to put on.
• Adjustable trigger voltage.
• A sturdy shaft designed for heavy-duty use.
• Sealed bearings.
• An excellent balance between weight, rigidity and durability.
• Shims Shimano SPD-compatible.
• A top-of-the-range model from the XTR range.

An XTR pedal designed for performance

The PD-M9200 offers a top-of-the-range solution for cyclists who wish to optimise every aspect of their power transfer.

Its SPD mechanism is accessible from both sides, allowing you to clip in quickly without having to check which way the pedal is facing. This feature is particularly useful in XC, where you’re constantly accelerating and every second counts.

The mechanism’s design also helps to clear away mud. On a wet or particularly technical XC course, this helps to ensure the clip-in system continues to function smoothly.

Short-shaft version: optimised foot position

The reference IPDM9200S1 corresponds to the version at short axis of the PD-M9200.

The shorter axle brings the foot closer to the bike’s longitudinal axis. This set-up may be of interest to cyclists looking for a more compact riding position and a reduced Q-factor.

The aim is to achieve a foot-to-pedal interface that is as direct as possible, with a position suited to the demands of competitive cycling.

Tip: When choosing between a standard axle and a short axle, one must take into account the cyclist’s build, the width of their pelvis, the position of the cleats and their pedalling style. A short axle is therefore not automatically the best option for all cyclists.

Double-sided SPD mechanism

The system Shimano SPD is one of the major advantages of the PD-M9200.

The double-sided mechanism allows:

• a swift commitment
• intuitive to use
• reliable triggering
• excellent foot support
• effective sludge removal
• designed to operate in off-road conditions

The tension of the mechanism can be adjusted to suit the force required to engage or release the shoe.

For competitive use, a firmer setting may be preferable in order to achieve a very precise fit. For less experienced skiers, a lower tension makes it easier to take the boots off.

A pedal particularly well-suited to XC

The Shimano XTR PD-M9200 are primarily intended for cross-country and competitive XC.

In this discipline, a pedal must provide an effective connection between the foot and the crank whilst remaining lightweight. The XTR design is tailored precisely to meet this need for performance.

The open mechanism also helps to limit the build-up of mud, which is important during competitions played on wet pitches.

For mountain bike marathons, long-distance XC and competitive rides, the PD-M9200 is also a particularly attractive option.

A pedal designed for competitive gravel riding

Although the PD-M9200 is primarily a mountain bike pedal, its SPD system makes it perfectly suitable for certain uses gravel.

It is particularly suitable for practitioners who prioritise:

• the low weight
• the yield
• foot support
• how easy it is to clip on
• the simplicity of the SPD system
• performance-oriented gravel riding

For gravel adventures or bikepacking involving a lot of walking, however, a pedal with a larger platform may be more comfortable.

Our advice: If you mainly ride XC and are looking for a lightweight, high-performance pedal, the PD-M9200 is an excellent choice. For highly versatile gravel riding involving a lot of walking, you’re better off opting for an SPD pedal with a larger platform.

What is the difference between a short spindle and a standard spindle ?

Shimano offers the PD-M9200 with different shaft lengths to suit different positioning preferences.

The version short axis brings the foot closer to the crank. In particular, it reduces the distance between the pedal axle and the centre of the bike.

This set-up may be suitable for cyclists who are looking for:

• a lower Q-factor ;
• a more direct pedalling feel ;
• a position closer to the bike’s centre line.

However, the rider’s body shape and hip width must be taken into account. A position that is too narrow may not be suitable for all cyclists.

Compatibility with MTB and gravel shoes

The PD-M9200 models use the standard Shimano SPD.

They are therefore compatible with MTB and gravel shoes fitted with a two-screw SPD cleat. This configuration differs from the SPD-SL system, which is mainly used on road bikes.

The SPD system also allows you to use shoes with cleats that are relatively flush with the sole, making it easier to walk when you stop.

Voltage adjustment

The tension of the mechanism can be adjusted directly on each pedal.

When using the device for the first time, it is advisable to start with a relatively low tension. The cyclist can then gradually increase the setting until the desired level of support is achieved.

The right setting allows you to strike a good balance between:

• ease of activation ;
• foot support ;
• safety ;
• stability during restarts.

Maintenance of the PD-M9200

XTR pedals are designed to withstand heavy use, but regular maintenance is still recommended.

After a particularly muddy outing:

1. Clean the SPD mechanisms.
2. Check that the springs are working properly.
3. Check the condition of the shims.
4. Check for any abnormal play.
5. Check regularly that the pedals are securely fastened to the cranks.

A special mechanism also makes it easier to fasten and unfasten the boot.

Why choose a pedal? Shimano XTR ?

The range XTR represents the top of the range in mountain bikes Shimano. It is aimed in particular at cyclists who are looking for precise performance, excellent durability and extensive weight optimisation.

The PD-M9200 embodies this philosophy, with a design particularly suited to cross-country cycling and other uses where performance and reliability are paramount.

It is a logical next step for a cyclist moving on from an SPD pedal Shimano From Deore or XT to an XTR setup that’s more competition-oriented.
