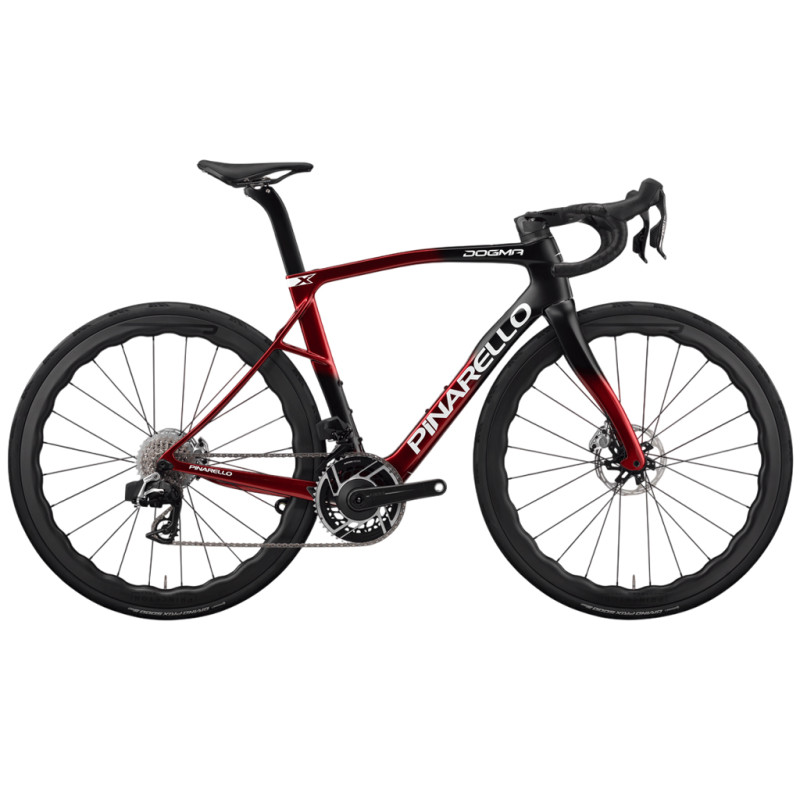

Pinarello Dogma X Shimano Dura-Ace Di2 12-speed ERC1400 H120 Starry Red Shinny road bike

This Pinarello Dogma X H120 Starry Red Shinny is based on a T1100 1K frame made from high-strength carbon fibre using patented Nanoalloy technology. With its endurance-oriented geometry, this frame effectively absorbs vibrations whilst remaining light and stiff, offering an excellent balance of comfort and performance.

This Italian machine is equipped with the Shimano Dura Ace Di2 12-speed groupset, one of the best on the market in terms of drivetrain and disc brakes. The DT Swiss ERC1400 wheels guarantee maximum performance on all terrains, whether in the mountains or on the flat.

The photo is for illustrative purposes only; this bike is fully equipped with a Shimano Dura Ace Di2 groupset and DT Swiss ERC1400 wheels.

Technical specifications:

Frame:
- Frame: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
- Fork: Carbon

Drivetrain:
- Crankset: Shimano Dura Ace Di2 RD-R9200 12-speed
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12-speed
- Shifters: Shimano Dura Ace Di2 RD-R9200 12-speed
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12-speed

Braking:
- Brakes: Dura Ace BR-R9200, 2-piston caliper, 160mm front rotor / 140mm rear rotor

Components:
- Handlebar: MOST Talon Ultra Light
- Stem: MOST
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D-printed titanium top seatclamp and bolts

Wheels:
- Wheels: DT Swiss ERC1400
- Tyres: Pirelli P ZERO Race TLR 35-622

General information:
- Colour: H120 Starry Red Shinny
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Brand: Pinarello

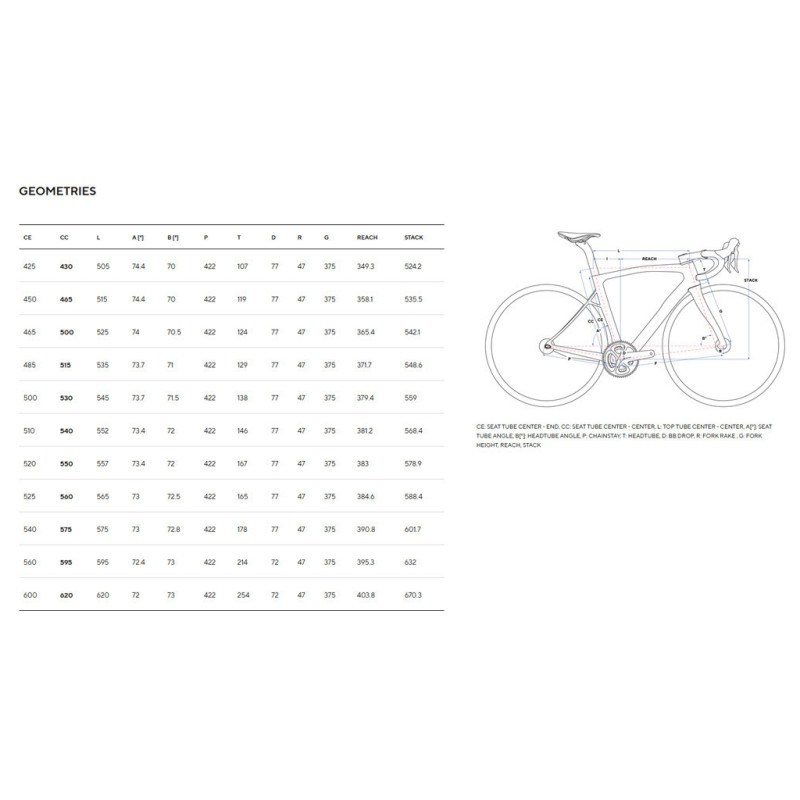

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	524.2	535.5	542.1	548.6	559	568.4	578.9	588.4	601.7	632	670.3
B	349.3	358.1	365.4	371.7	379.4	381.2	383	384.6	390.8	395.3	403.8
C	107	119	124	129	138	146	157	165	178	214	254
D	425	450	465	485	500	510	520	525	540	560	600
E	505	515	525	535	545	552	557	565	575	595	620
