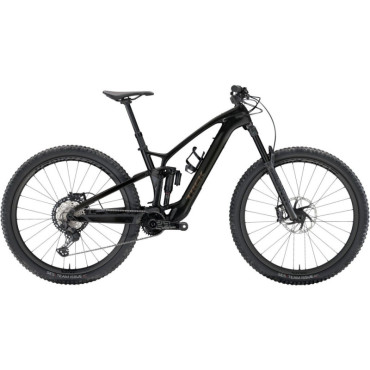

Trek Fuel EX 9.8 XT Lava full-suspension mountain bike

The Trek Fuel EX 9.8 XT 6th Gen is a carbon suspension mountain bike designed for long technical descents and demanding climbs. It features a carbon frame and wheels, improved suspension, and adjustable geometry with internal storage.¤

The OCLV Mountain carbon frame ensures lightness and stiffness, while Fox Performance suspension absorbs shocks for smoother trails. Bontrager Line Elite 30 carbon wheels optimise handling. The Shimano XT 12-speed drivetrain ensures precise shifting, and the Shimano XT 4-piston braking system provides optimal stopping power. ABP (Active Braking Pivot) technology maintains suspension control even when braking.The use of OCLV Mountain Carbon for the frame, wheels and Bontrager Line Pro handlebars makes the bike lighter and improves its performance.Technical specifications: Frame: OCLV Mountain Carbon, Mino Link adjustable geometry, internal storage, Boost148, 140mm travel- Fork: Fox Performance 36, 150 mm travel, Boost110
- Axles: Boost148 (rear), Boost110 (front)

¤

Drivetrain:
- Crankset: Shimano XT M8120, 30 teeth
- Cassette: Shimano XT M8100, 10-51, 12 speeds
- Chain: Shimano Ultegra/XT M8100, 12 speeds
- Shift lever: Shimano XT M8100, 12 speeds
- Rear derailleur: Shimano XT M8100
- Bottom bracket: Shimano BB-MT501 BSA¤¤p¤¤strong¤¤Braking:¤¤br /¤¤- Brakes: Shimano XT M8120, 4 pistons¤¤br /¤¤- Rotors: Shimano RT86, 180 mm (XS, S, M, ML, L, XL) / 203 mm (M, ML, L, XL)¤

Components:
- Handlebar: Bontrager Line Pro, OCLV carbon, 780 mm
- Stem: Bontrager Line Pro, 35 mm
- Saddle: Bontrager Arvada¤

Wheels:
- Rims: Bontrager Line Elite 30, Tubeless Ready¤
- Tyres: Bontrager SE5 Team Issue, 27.5x2.50" (XS, S) / 29x2.50" (S, M, ML, L, XL)¤

¤

General information:
- Brand: Trek
- Bike type: Full suspension mountain bike
- Colour: Lava
- Sizes: XS, S, M, ML, L, XL
- Weight: 14.48 kg (M)

¤

Geometry: Geometry:Bike size:

¤

Size	Rider height	Inseam
XS	145 - 155 cm	69 - 73 cmS	155 - 165 cm	74 - 78 cm
M	165 - 176 cm	79 - 83 cm
ML	173 - 180 cm	81 - 86 cm
L	177 - 188 cm	84 - 89 cm
XL	188 - 195 cm	89 - 91 cm

¤
