Trek Fuel EX 8 Galactic Grey to Black Fade All-Mountain MTB

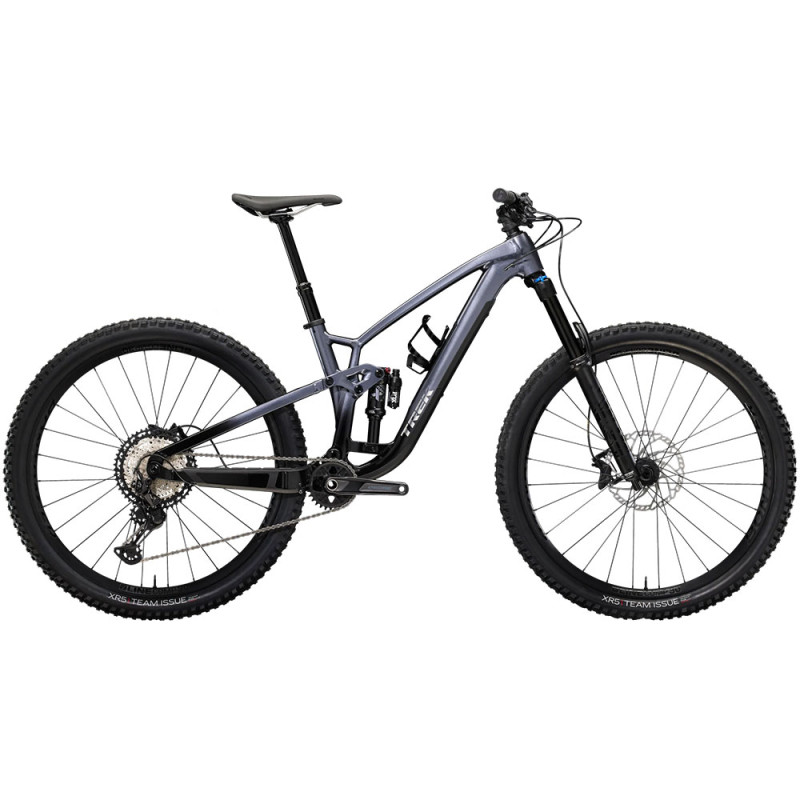

Designed to tackle rough descents at full speed, the Trek Fuel EX 8 is a trail bike built around a sturdy aluminium frame with an aggressive design. It features a Fox Rhythm 36 fork with 150mm of travel and a Fox Performance Float X rear shock that will make you forget the rocks and allow you to tackle obstacles with ease. Its adjustable geometry allows for a wide range of set-ups.

The Fuel EX 8 is equipped with a Shimano XT 12-speed drivetrain for precise and fast gear changes. The hydraulic disc brakes provide optimal braking power to maintain excellent speed control in all conditions.

Finally, this bike is fitted with 29-inch Bontrager Line Comp 30 wheels in a Tubeless Ready setup, which provide extra comfort and reduce the risk of punctures. Ready to tackle the most stunning descents, this bike guarantees maximum enjoyment every time you hop on.

TECHNICAL SPECIFICATIONS:

Frame:
- Frame: Alpha Platinum Aluminium, internal storage, angle-adjust headset, variable geometry via Mino Link, adjustable lever ratio, guided internal routing, magnesium rocker, 34.9 mm seat tube, ISCG 05, 55 mm chainline, BSA 73, down tube protection, ABP, UDH, Boost148, 140 mm travel
- Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
- Rear shock: Fox Performance Float X, 2-position shock, 185x55 mm

Drivetrain:
- Grips: Shimano XT M8100 12v
- Rear derailleur: Shimano XT M8100, long cage
- Crankset: Shimano Deore M6120, 30-tooth chainring, 55 mm chainline, 170 mm length
- Chain: Shimano SLX M7100, 12-speed
- Bottom bracket: Shimano BB-MT501 BSA

Braking:
- Brakes: Shimano, 4-piston, hydraulic disc
- Discs: Shimano RT66, 6-bolt, 180 mm

Components:
- Handlebar: Bontrager Line, alloy, 35 mm, rise 27.5 mm, width 750 mm (S) 780 mm (M-XXL)
- Stem: Bontrager Elite, 35 mm, 0 degrees, 35 mm (S) 45 mm (M-XXL)
- Grips: Bontrager XR Trail Elite, nylon lock-on
- Saddle: Bontrager Arvada, hollow chromoly rails, width 138 mm
- Seatpost: TranzX JD-YSP39, internal routing, 34.9 mm, travel 100 mm (S) 150 mm (M-ML) 170 mm (L-XXL)

Wheels:
- Wheels: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
- Tyres: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50 inches

General information:
- Colour: Galactic Grey to Black Fade
- Sizes: S / M / M-L / L / XL / XXL
- Size geometries in the photo gallery
- Weight: 15.65kg
- Maximum weight: 136kg
- Brand: Trek

Geometry:

(mm)	XS	S 27.5	S 29	M	ML	L	XL	XXL
A	574.1	574.1	612.3	616.8	616.8	621.3	634.9	648.4
B	400.2	430.2	425	450	470	485	515	545
C	95	95	95	100	100	105	120	135
D	64.5	64.5	64.5	64.5	64.5	64.5	64.5	64.5
E	360	380	380	410	420	435	470	500
F	516.2	550.5	553.8	584.1	607.4	626.9	661.8	696.6
