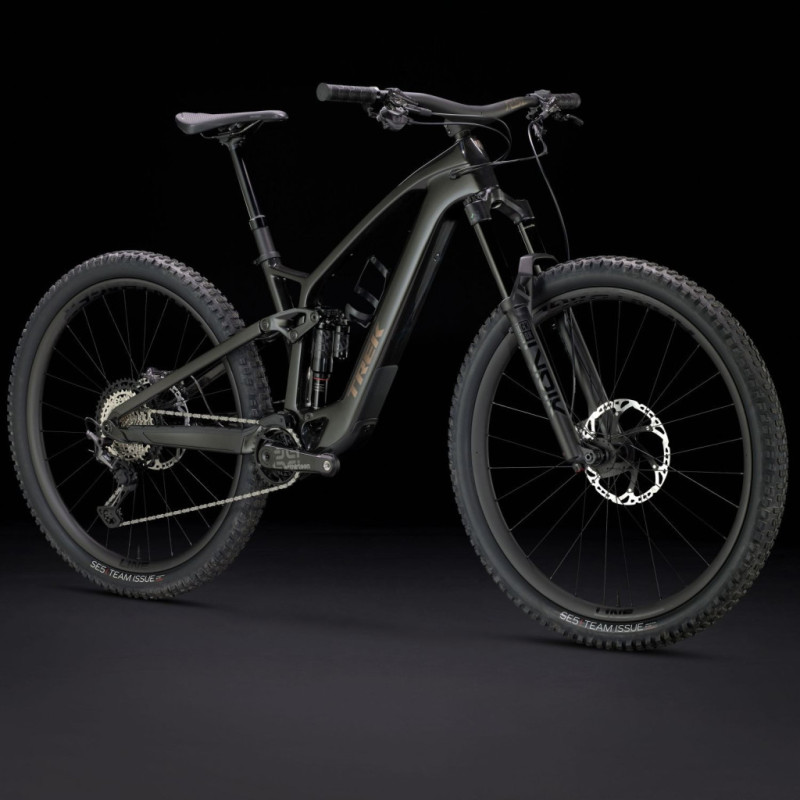

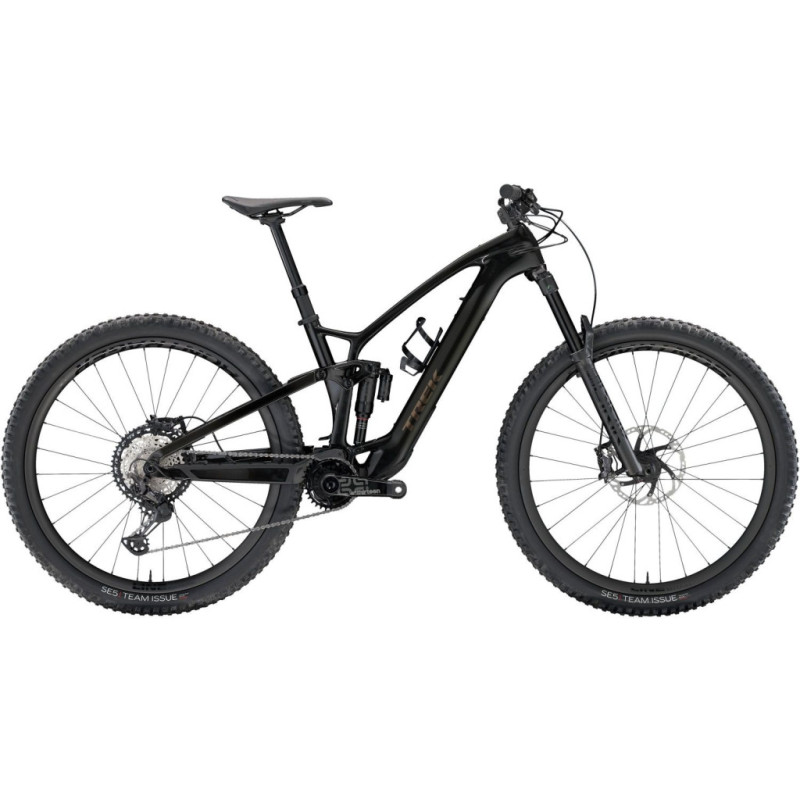

Fuel EXe 9.8 Trek Deep Smoke full-suspension mountain bike
18.48 kg - Carbon frame - Carbon wheels - Disc brakes - Shimano XT 12v - TQ motor - 360 Wh

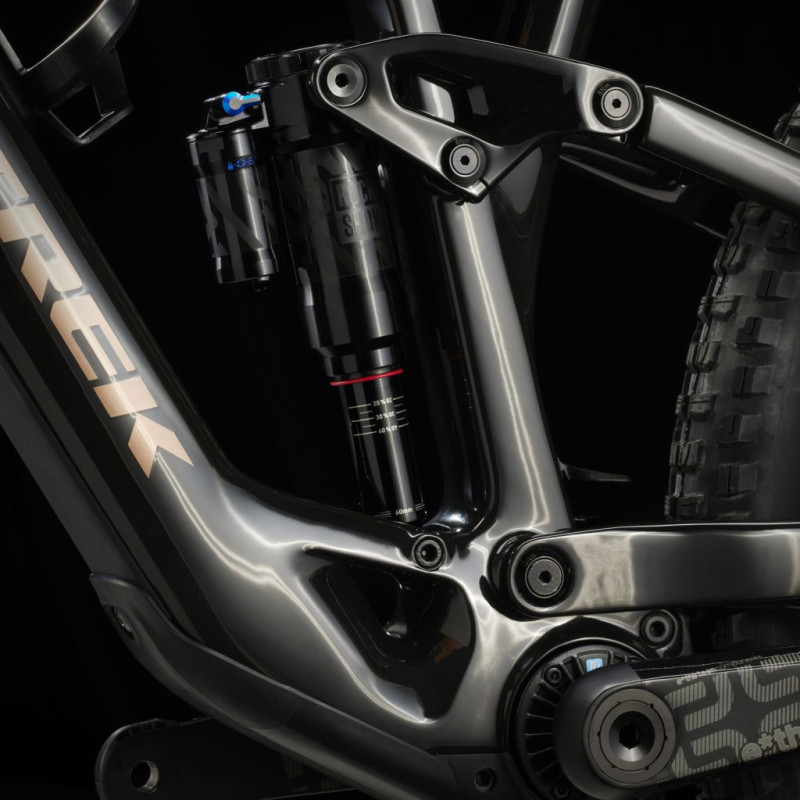

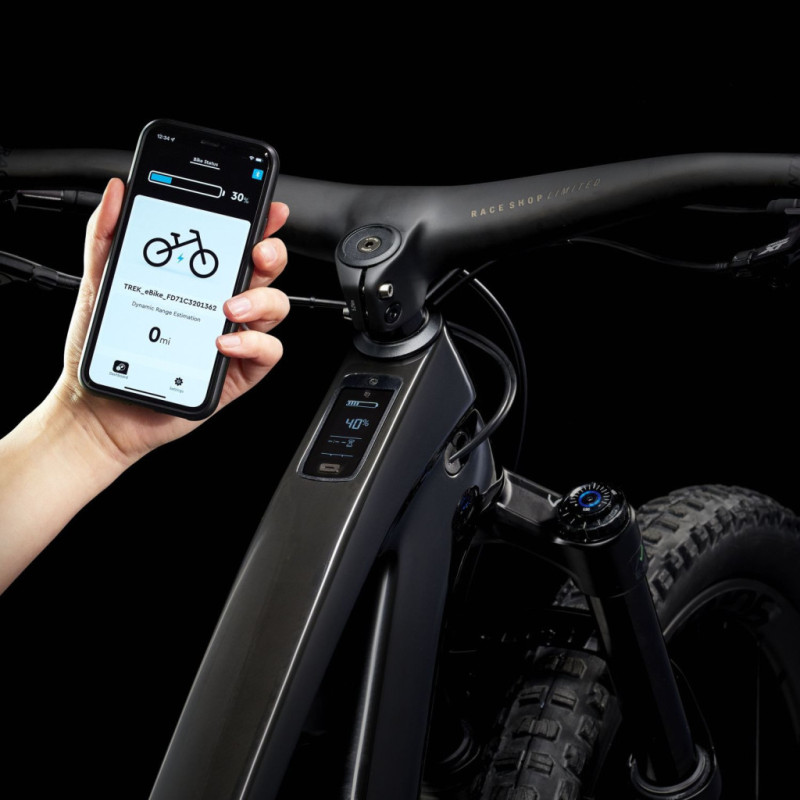

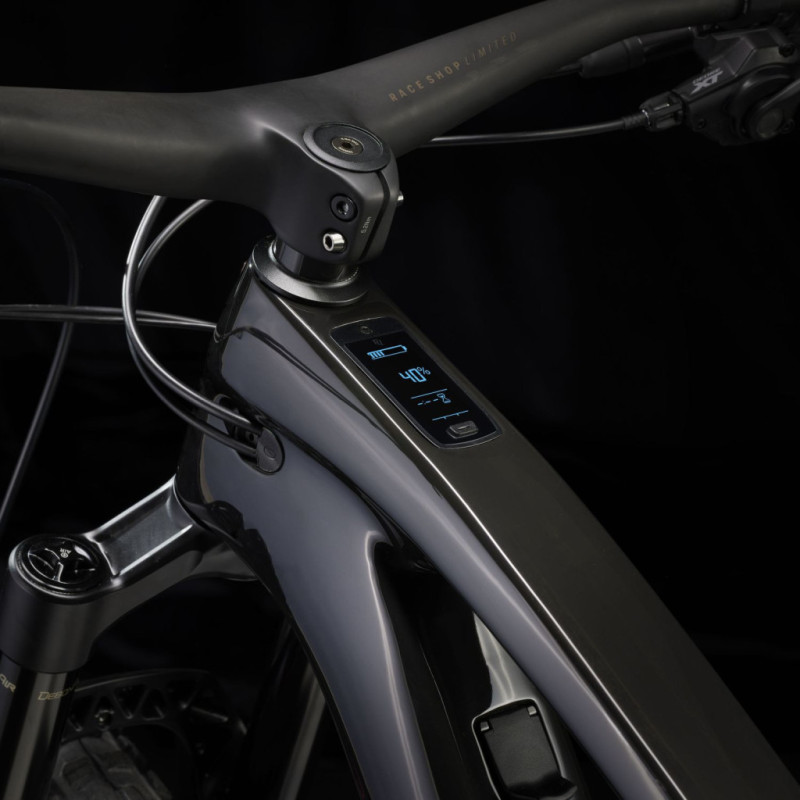

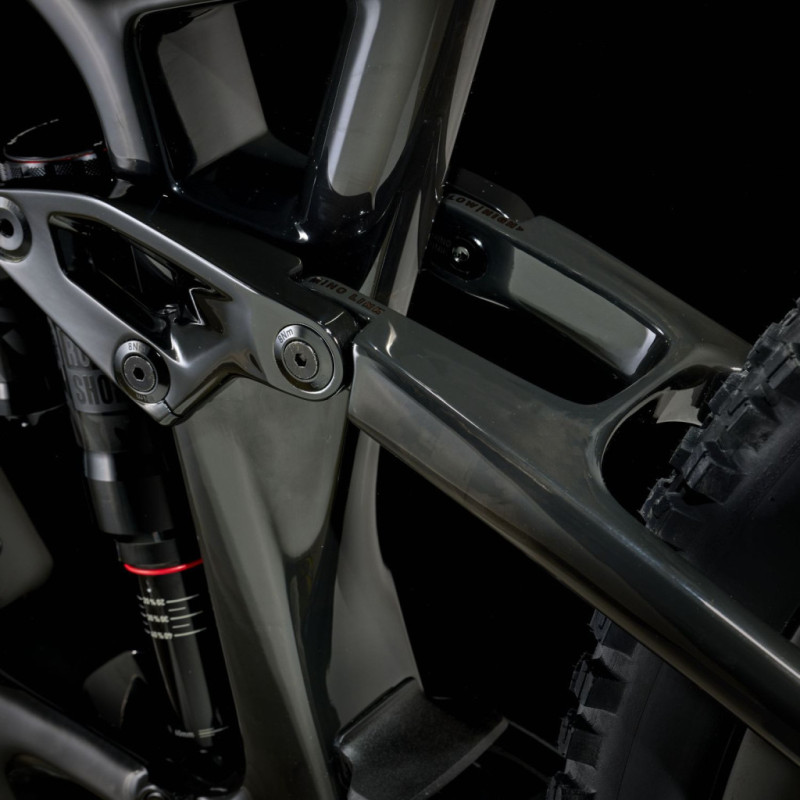

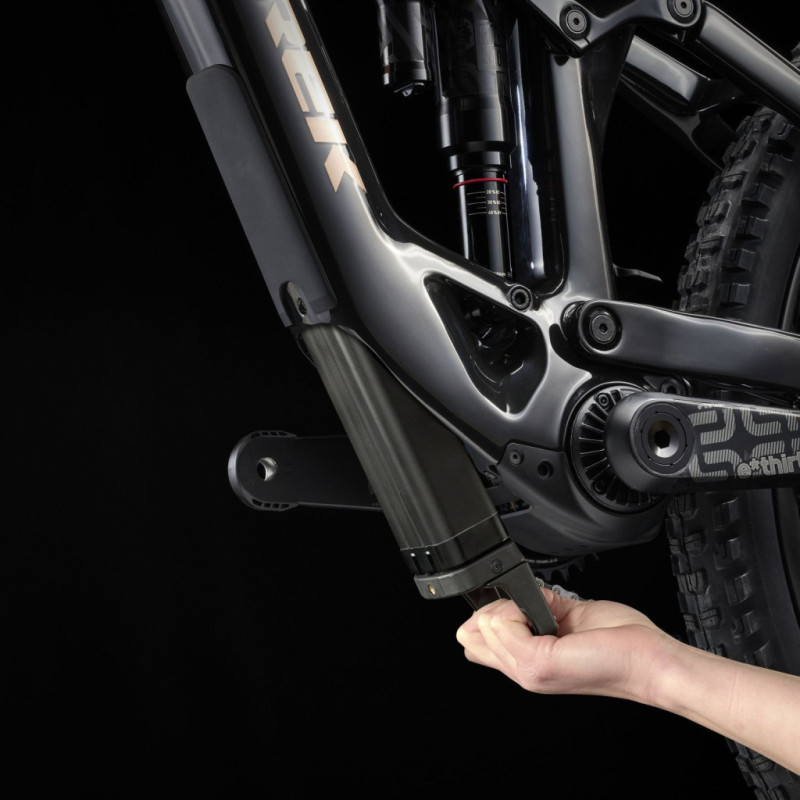

Trek's Fuel EXe 9.8 is a full-suspension electric mountain bike with an OCLV Mountain carbon frame. Its highlights include a removable battery, internal cable routing, and an alloy rocker. It offers discreet assistance on climbs and a natural feel on descents. and an alloy rocker arm. It offers discreet assistance on climbs and a natural feel on descents. Equipped with the quiet and powerful TQ harmonic gearbox, this bike features an LED display and discreet controls. The RockShox Lyrik Select+ fork (150 mm) and RockShox Super Deluxe Select+ rear suspension (140 mm) ensure comfort and control. The Shimano XT 12-speed drivetrain guarantees precise gear changes. The OCLV Mountain carbon frame ensures lightness and strength. The Bontrager Line Elite 30 carbon wheels are tubeless ready. Bontrager SE5 Team Issue tyres, also Tubeless Ready, optimise grip. Technical specifications: Frame:- Frame: OCLV Mountain Carbon, removable battery, internal cable routing, alloy rocker, 34.9 mm seat tube, chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel- Fork: RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth 15 mm, 150 mm travel- Axles: Boost110 front, Boost148 rear Transmission: Crankset: E*thirteen E*spec Race carbon, 165 mm- Cassette: Shimano XT M8100, 10-51, 12-speed
- Chain: Shimano XT M8100, 12-speed
- Shift lever: Shimano XT M8100, 12 speeds
- Rear derailleur: Shimano XT M8100, long cage
- Chain: Shimano XT M8100, 12-speed
- Shift lever: Shimano XT M8100, 12 speeds
- Rear derailleur: Shimano XT M8100, long cage
Motor:

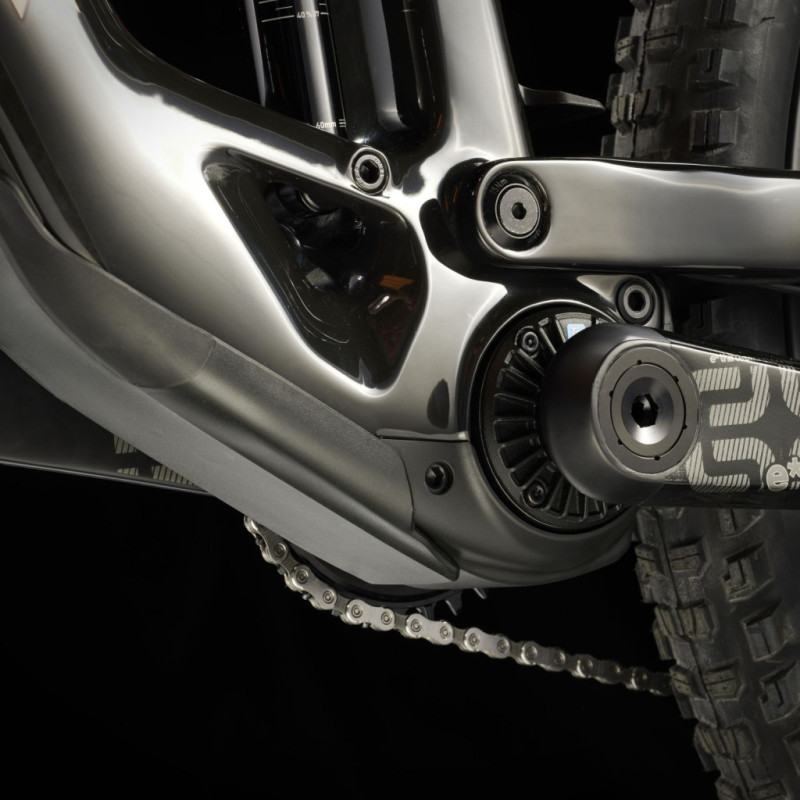

- Motor: TQ HPR50, 50 Nm
- Battery: 360 Wh
Braking:

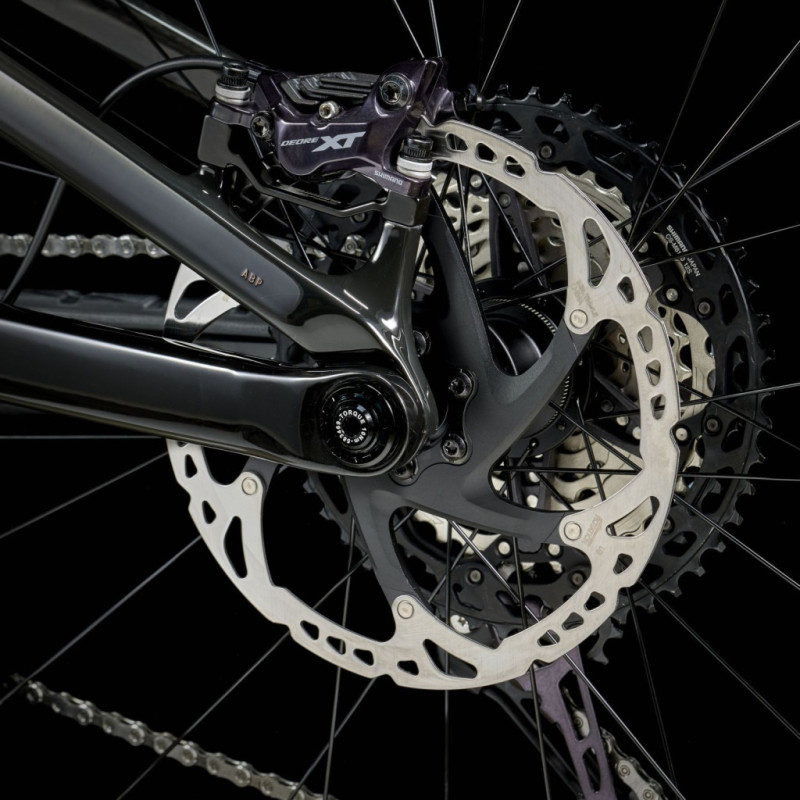

- Brakes: Shimano XT M8120, hydraulic disc, 4 pistons- Discs: Shimano RT86, 6 holes, 203 mm- Components:- Handlebar: Bontrager Line Pro, OCLV carbon, 35 mm, 27.5 mm rise, 780 mm width
- Stem: Bontrager Line Pro, 35 mm, Blendr compatible, 0 degrees, 35 mm
- Saddle: Verse Short Comp, steel rails, width 145 mm
Wheels:
- Front wheel: Bontrager Line Elite 30, OCLV Mountain carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29 inches- Rear wheel: Bontrager Line Elite 30, OCLV Mountain carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29-inch- Tyres: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.5 inches
General information:
- Brand: Trek
- Bike type: Electric full-suspension mountain bike
- Colour: Deep Smoke
- Sizes: S, M, L, XL
- Weight: 18.48 kg (size M)
| Colours | black |
|---|---|
| Size | L |
| Type of braking | disc brakes |
| EAN | 768682207871 |
| Supplier reference | 5300848 |
| (mm) | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| A (Stack) | 616 | 625 | 625 | 634 |
| B (Reach) | 434 | 459 | 489 | 514 |
| C (Head tube length) | 100 | 110 | 110 | 120 |
| D (Bottom bracket axis - top of seat tube) | 380 | 410 | 435 | 470 |
| E (Horizontal length) | 572 | 599 | 629 | 656 |
Bike size
| Size | Rider height | Inside leg |
|---|---|---|
| S | 155 - 165 cm | 74 - 78 cm |
| M | 165 - 176 cm | 79 - 83 cm |
| L | 177 - 188 cm | 84 - 89 cm |
| XL | 188 - 195 cm | 89 - 91 cm |
| Colours | Size | Type of braking | Availability | Price | Supplier reference | EAN | |
|---|---|---|---|---|---|---|---|
| Web | Stores | ||||||
| black | S | disc brakes | Sold out | Sold out | €8,999.00 | 5300846 | 768682208212 |
| black | M | disc brakes | Sold out | Sold out | €8,999.00 | 5300847 | 768682207918 |
| black | L | disc brakes | Sold out | Sold out | €8,999.00 | 5300848 | 768682207871 |
| black | XL | disc brakes | Sold out | Sold out | €8,999.00 | 5300849 | 768682208151 |
