- Product out of stock

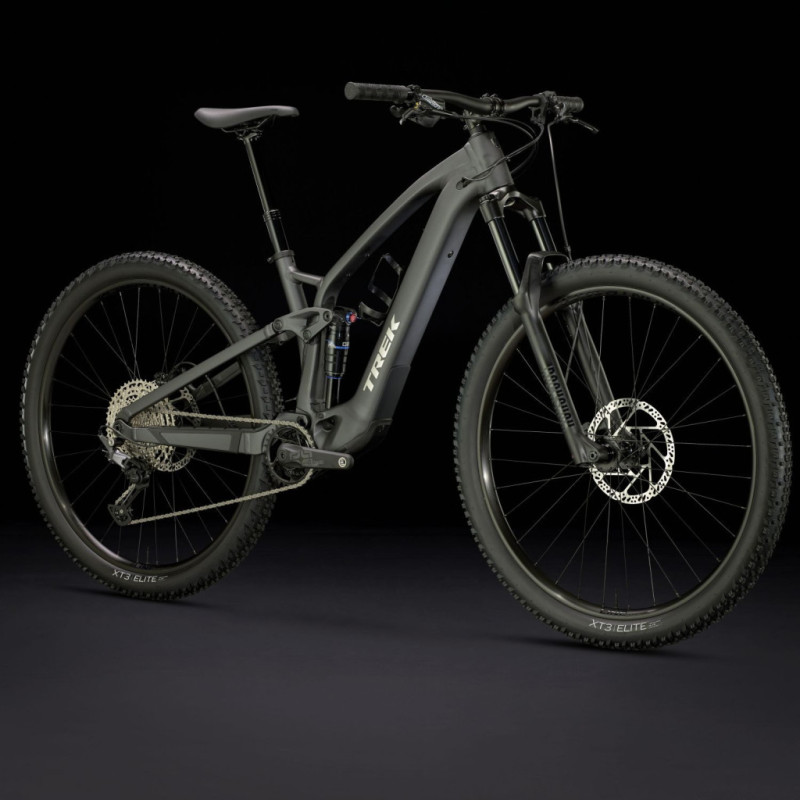

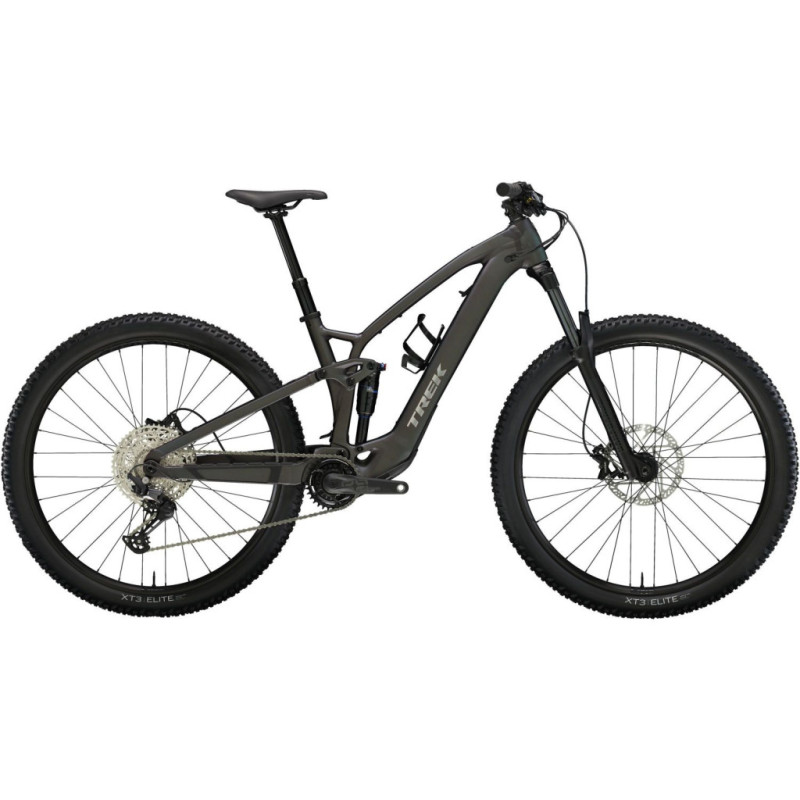

Trek Fuel EXe 5 Matte Dnister Black full-suspension mountain bike
20.98 kg - Aluminium frame - Aluminium wheels - Disc brakes - Shimano Deore 12v - TQ-HPR50 - 360 Wh

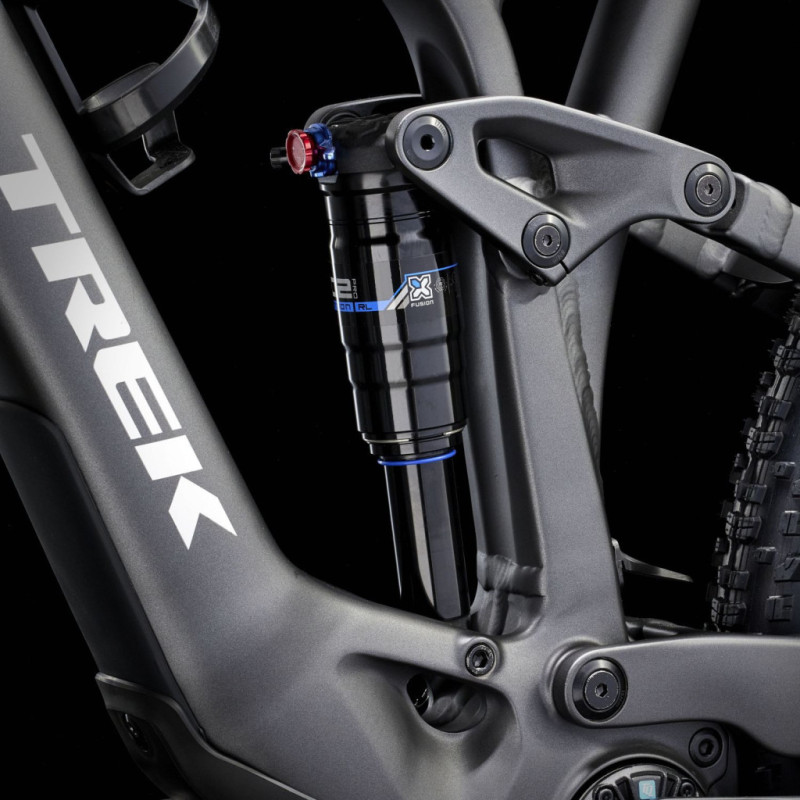

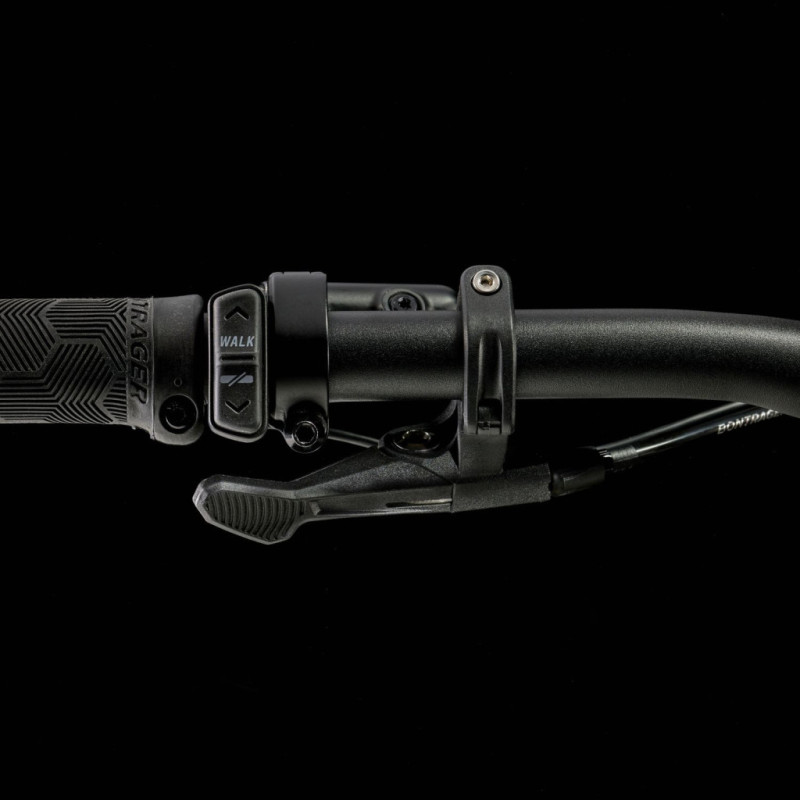

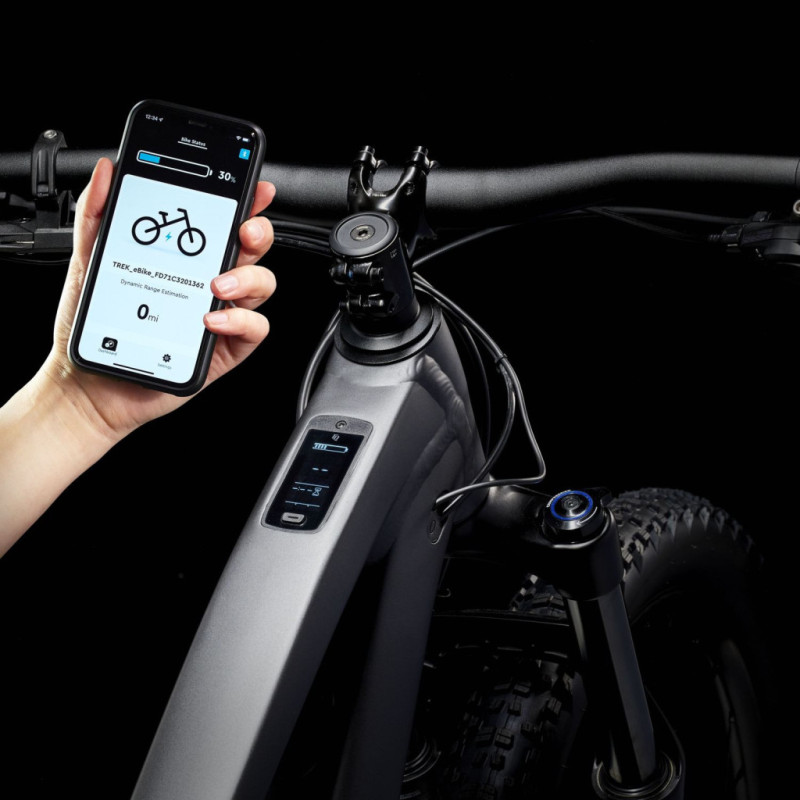

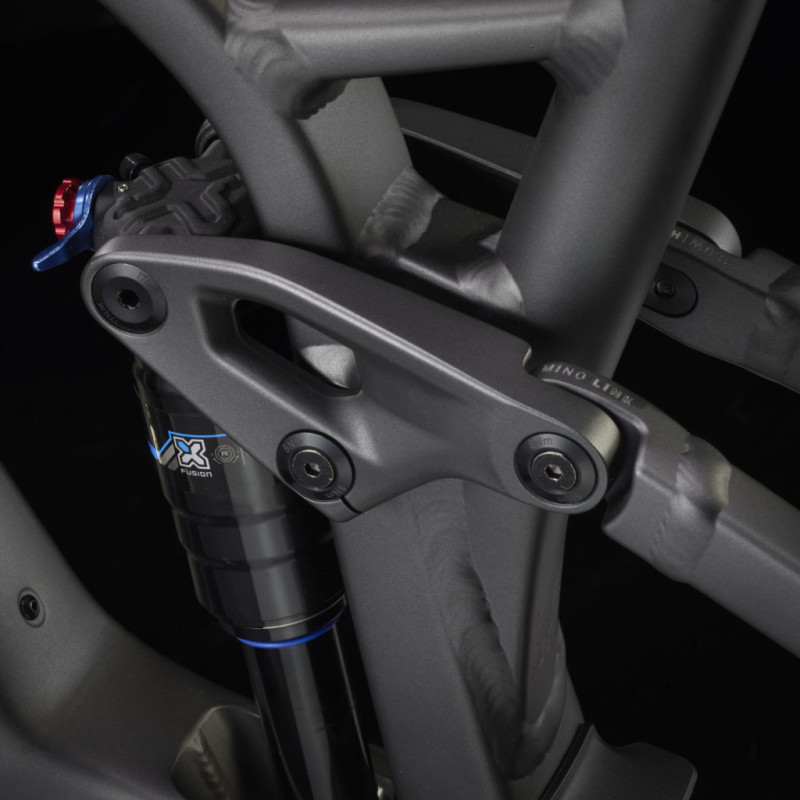

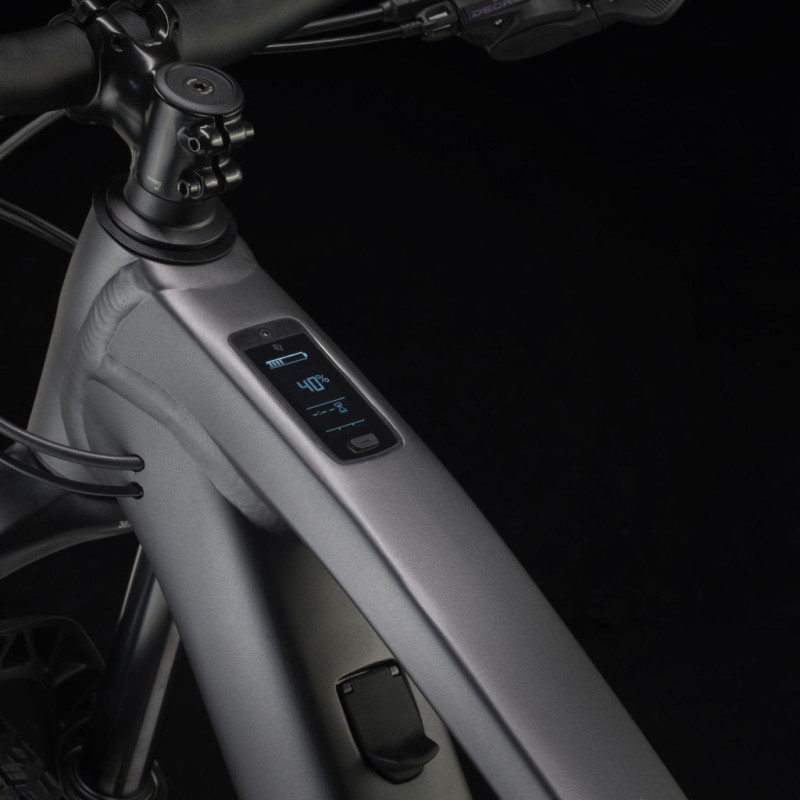

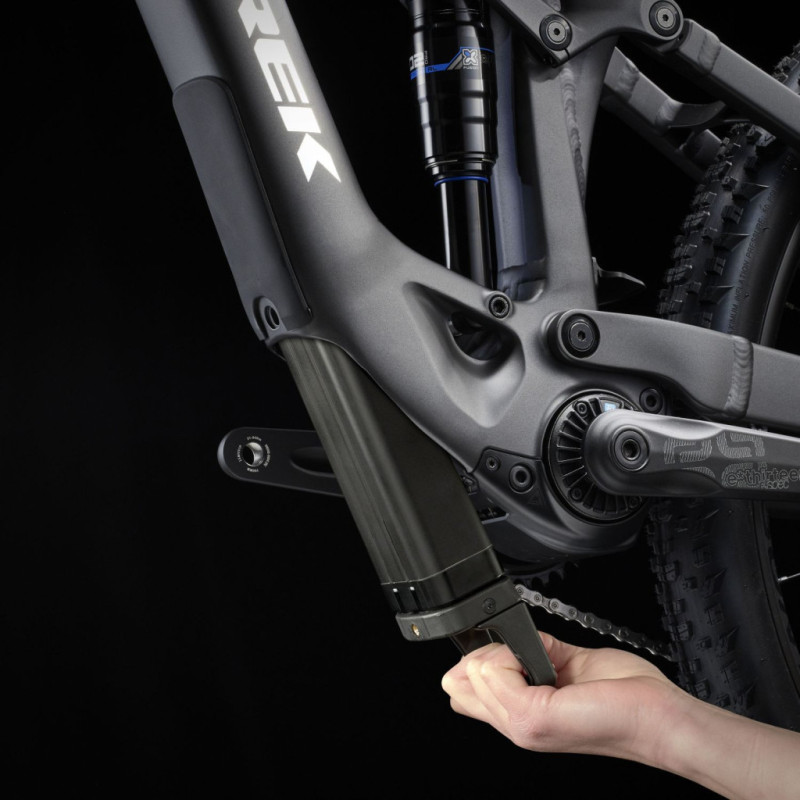

Trek's Fuel EXe 5 is a high-performance, versatile hardtail electric mountain bike. Its Alpha Platinum aluminium frame, removable 360 Wh battery and TQ-HPR50 motor deliver a smooth and powerful riding experience. The adjustable Mino Link geometry adapts the bike to different terrains. The TQ-HPR50 motor ensures quiet operation and natural assistance. The LED display and handlebar remote control offer intuitive control. The 150 mm RockShox Recon Silver suspension and 140 mm X-Fusion Pro 2 rear suspension absorb shocks for optimal comfort.Alpha Platinum aluminium ensures lightness, strength and durability. Technical specifications: Frame:- Frame: Alpha Platinum aluminium, internal routing, Boost 148, UDH, 140 mm travel
- Fork: RockShox Recon Silver, 150 mm travel
- Axles: Boost 110 front, Boost 148 rear
- Fork: RockShox Recon Silver, 150 mm travel
- Axles: Boost 110 front, Boost 148 rear
Drivetrain:
- Crankset: E*thirteen E*spec Plus, 165 mm long
- Cassette: Shimano Deore M6100, 10-51, 12 speeds
- Chain: Shimano Deore M6100, 12 speeds
- Gear lever: Shimano Deore M6100, 12 speeds
- Rear derailleur: Shimano Deore M6100, long cage
Motor:

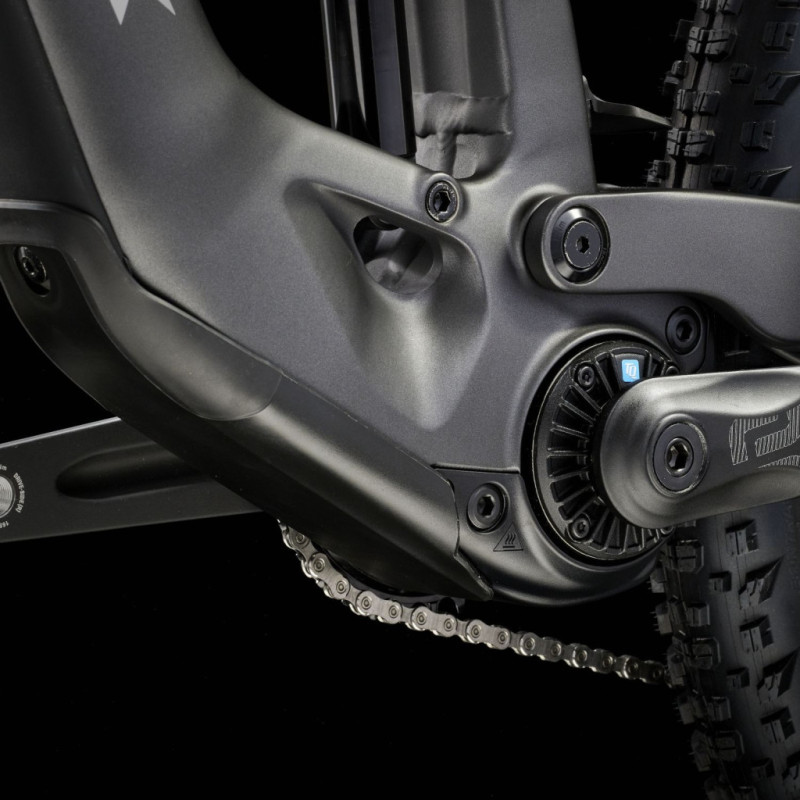

- Motor: TQ-HPR50, 50 Nm

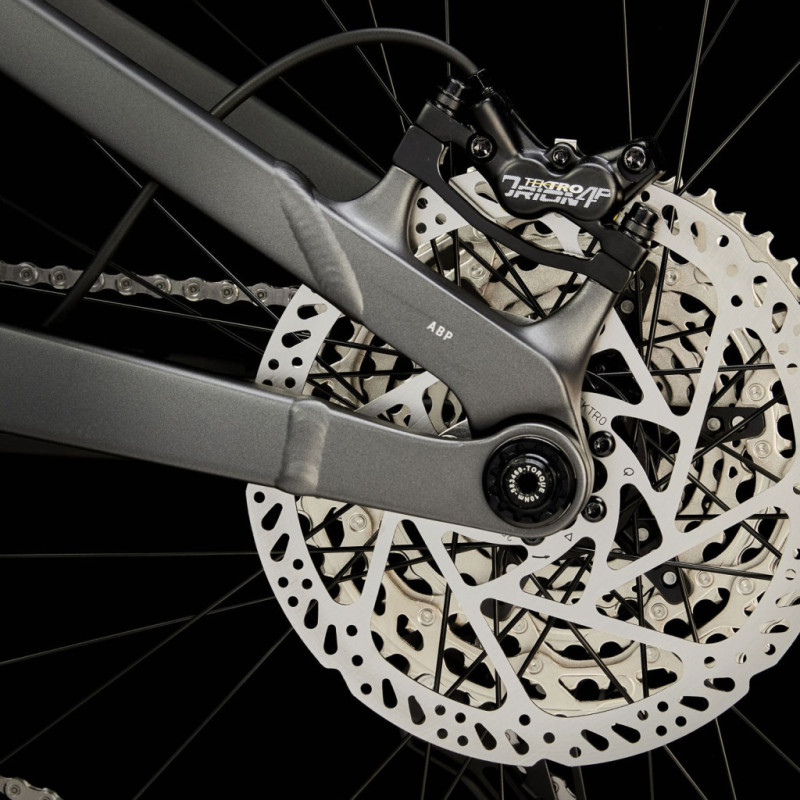

- Battery: TQ 360 Whstrong>Braking:strong>- Brakes: Tektro HD-M745 4-piston hydraulic disc brakes
- Discs: Tektro, 203 mm
Components:
- Handlebar: Bontrager Rhythm Comp, 750 mm
- Stem: Bontrager Comp, 50 mm
- Saddle: Bontrager Arvada Wheels: Tyres: Bontrager XT3 Elite, 29x2.40 inches- Front wheel: Bontrager, Boost 110
- Rear wheel: Bontrager, Boost 148
General information:
- Colour: Matte Dnister Black
- Sizes: S, M, L, XL
- Weight: 20.98 kg
- Brand: Trek
- Bike type: Full suspension mountain bike
| Colours | black |
|---|---|
| Size | L |
| Type of braking | disc brakes |
| EAN | 768682517727 |
| Supplier reference | 5297851 |
| (mm) | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| A (Stack) | 616 | 625 | 625 | 634 |
| B (Reach) | 434 | 459 | 489 | 514 |
| C (Head tube length) | 100 | 110 | 110 | 120 |
| D (Bottom bracket axis - top of seat tube) | 380 | 410 | 435 | 470 |
| E (Horizontal length) | 572 | 599 | 629 | 656 |
Bike size
| Size | Rider height | Inside leg |
|---|---|---|
| S | 155 - 165 cm | 74 - 78 cm |
| M | 165 - 176 cm | 79 - 83 cm |
| L | 177 - 188 cm | 84 - 89 cm |
| XL | 188 - 195 cm | 89 - 91 cm |
| Colours | Size | Type of braking | Availability | Price | Supplier reference | EAN | |
|---|---|---|---|---|---|---|---|
| Web | Stores | ||||||
| black | S | disc brakes | Sold out | Sold out | €5,059.00 | 5297849 | 768682517680 |
| black | M | disc brakes | Sold out | Sold out | €5,059.00 | 5297850 | 768682517468 |
| black | L | disc brakes | Sold out | Sold out | €5,059.00 | 5297851 | 768682517727 |
| black | XL | disc brakes | Sold out | Sold out | €5,059.00 | 5297852 | 768682517888 |
