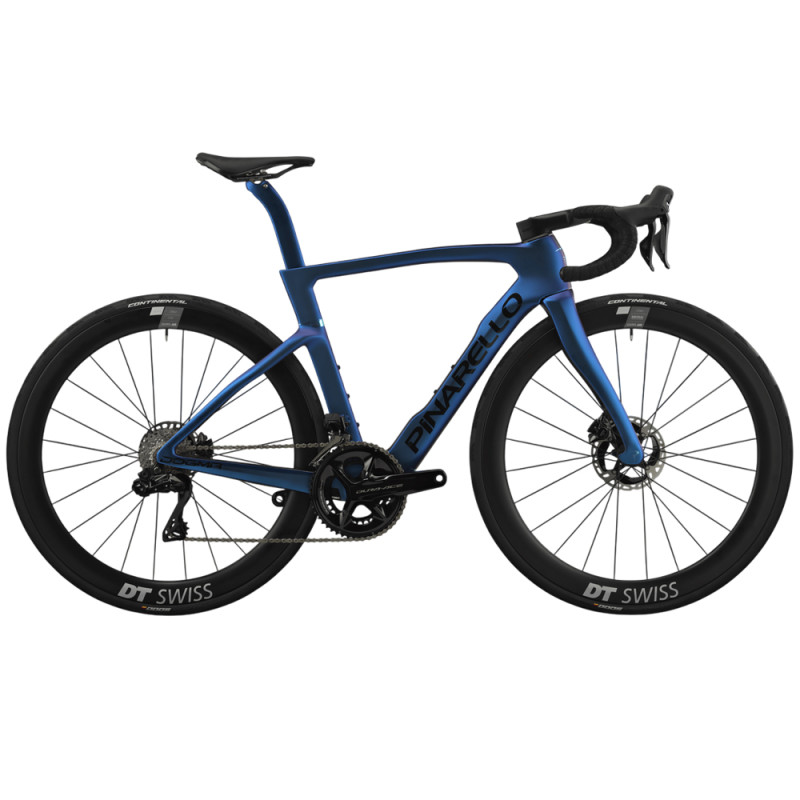

Pinarello New Dogma F Disc Sram Red AXS E1 12-speed Princeton Peak 4550 G112 Luxter Blue 2025 road bike

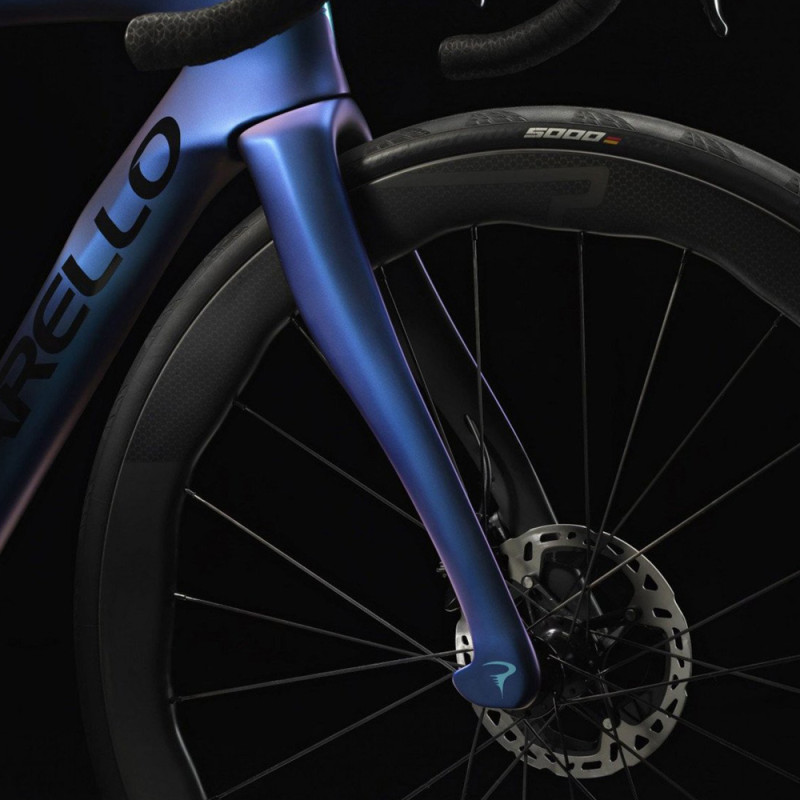

Chosen by the INEOS Grenadiers team riders for the world's biggest races, such as the Tour de France, the Pinarello New Dogma F Disc is a very high-end bike with its TorayCa M40X carbon frame. The redesigned down tube and elliptical head tube are thinner than the previous version of the Dogma to improve aerodynamic performance and offer a sleeker design. The seat post is integrated into the frame to reduce weight and improve the clamping system. The new Onda fork is slimmer and more slanted for greater manoeuvrability. The all-new Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic./p>

In addition to this high-quality frame, the Pinarello New Dogma F Disc G112 Luxter Blue is equipped with the Sram Red AXS 12v wireless electronic groupset, which offers very fast and precise gear changes and effective disc braking in all conditions. Finally, the Princeton Peak 4550 wheels offer maximum performance to shine on all terrains, both in the mountains and on the flat.Please note that the photo of the bike is for illustrative purposes only. This bike is fitted with the Sram Red AXS 12v groupset and Princeton Peak 4550 wheels.

Technical specifications: Frame: TorayCa M40X, TiCR Cable Routing, Italian BB- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Drivetrain:
- Crankset: Sram Red AXS
- Cassette: Sram Red AXS 12v- Chain: Sram Red AXS 12v- Handles: Sram Red AXS 2x12v- Front derailleur: Sram Red AXS, double- Rear derailleur: Sram Red AXS 12v

Brakes:
- Brakes: Sram Red, hydraulic - Discs: 160 mm front / 140 mm rear - Components:- Integrated stem: Most Talon Ultra Fast- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm- Seatpost: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts- Bottle cage: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black Wheels: - Wheels: Princeton Peak 4550 - Tyres: Continental Grand Prix 5000S TR28-622 General information:- Colour: G112 Luxter Blue
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)
- Brand: Pinarello

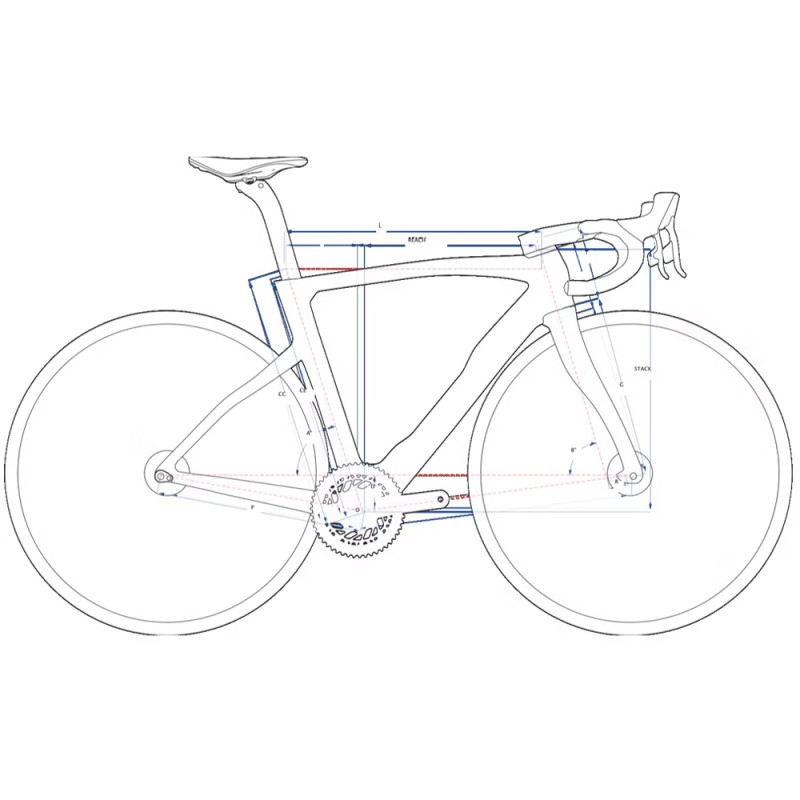

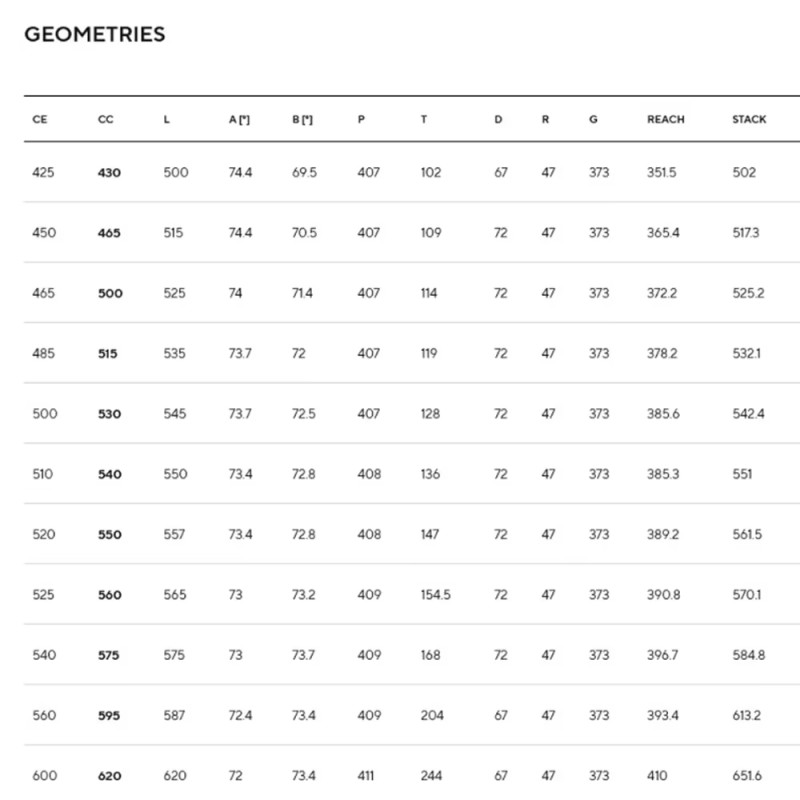

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147/td>/td>154.5/td>/td>168/td>/td>204/td>/td>244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587620/tr/tbody/table/div
