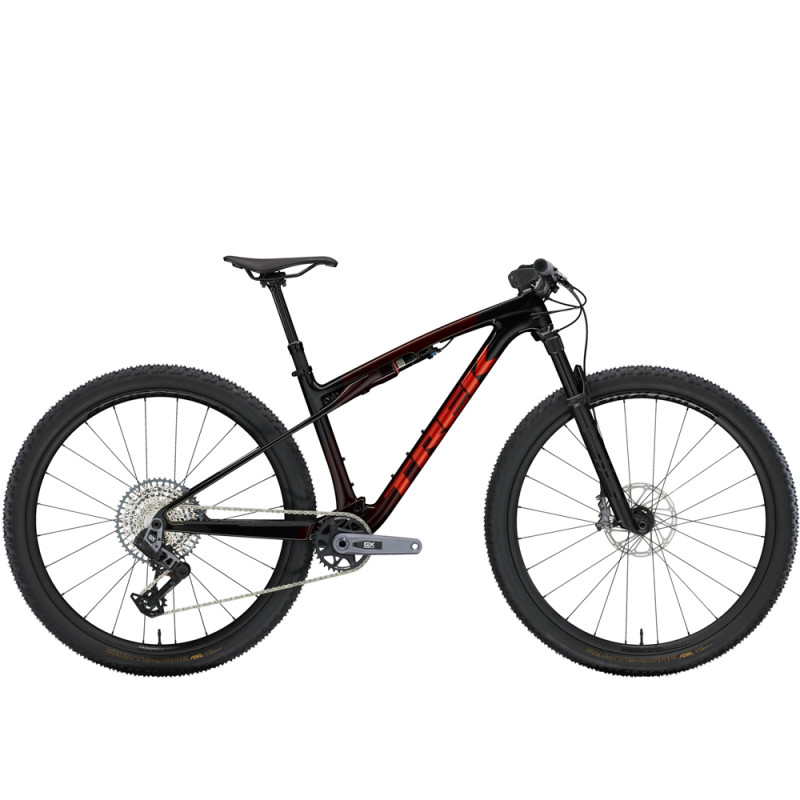

The new generation of Trek Supercaliber bikes has been developed to improve your performance on increasingly demanding XC trails. To achieve this, Trek has developed an ultra-light OCLV carbon frame featuring 80mm of travel (compared to 60mm on the previous generation) with a RockShox IsoStrut shock. As for the fork, you’ll find the RockShox SID Rush RL with its 110mm of travel, which is highly effective on rough trails.
This bike is equipped with the new Sram GX AXS T-Type 12-speed drivetrain, for even faster and more precise gear changes. The Bontrager Elite 30 Tubeless Ready carbon wheels offer exceptional efficiency, responsiveness and grip for effective performance on cross-country circuits. Finally, the top-of-the-range Bontrager components round off this high-performance package. You’ll find an integrated carbon handlebar and stem, and a Bontrager dropper seatpost.
As you can see, if you’re looking for a very light, high-performance XC mountain bike for cross-country circuits, this Trek Supercaliber 9.8 is made for you. It’ll be just as fast going downhill as it is going uphill!

TECHNICAL SPECIFICATIONS:

Frame / fork / suspension:

- Frame: OCLV Mountain SLR carbon, IsoStrut, universal derailleur hanger, 80 mm travel
- Fork: RockShox SID, DebonAir spring, Rush RL shock, handlebar lockout, tapered pivot, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel

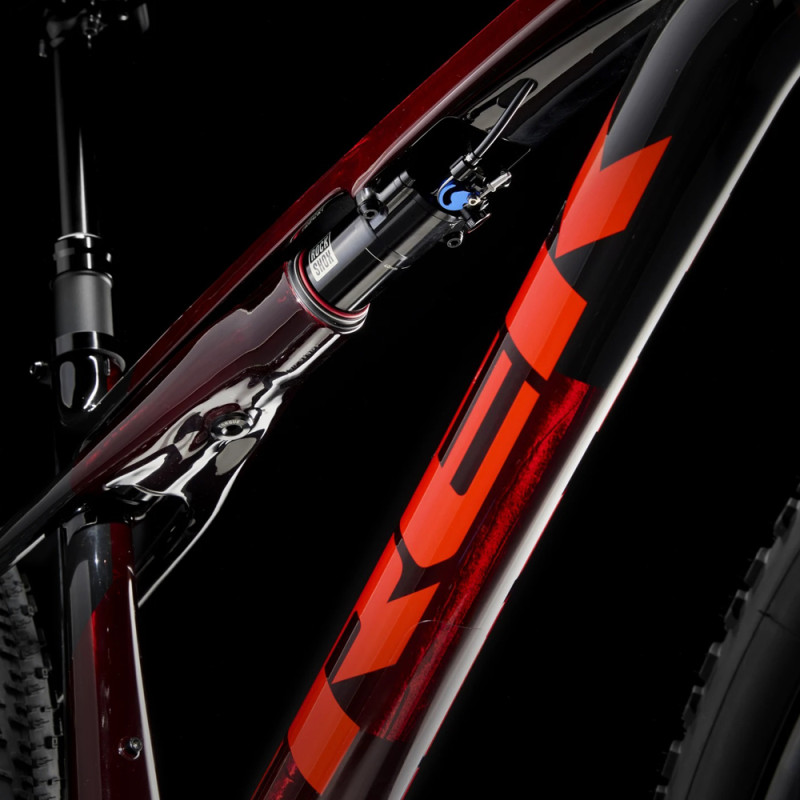

- Rear shock: Trek IsoStrut, RockShox SIDLuxe, two-position shock
- Suspension control: RockShox TwistLoc
- Maximum compatible fork travel: 120 mm

Wheels:

- Wheels: Bontrager Kovee Elite 30, OCLV Mountain carbon, tubeless-ready, 6-bolt, Boost (15x110 mm and 12x148 mm)
- Tyres: Bontrager RSL XR 29x2.40, Tubeless Ready
- Max. tyre size: 29x2.40

Groupset:

- Shift lever: SRAM AXS POD

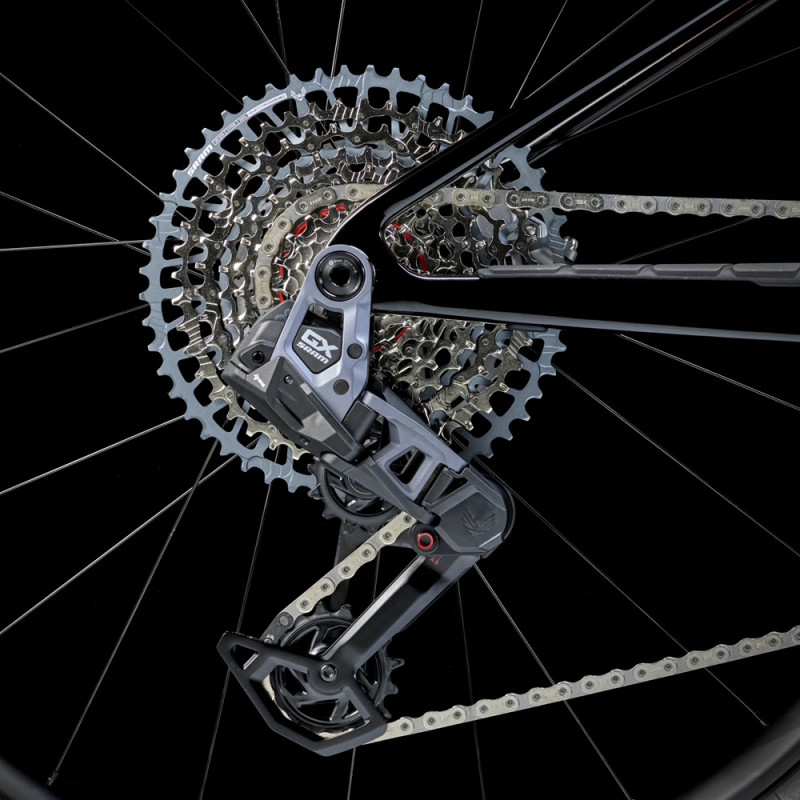

- Rear derailleur: SRAM GX Eagle AXS, Type T

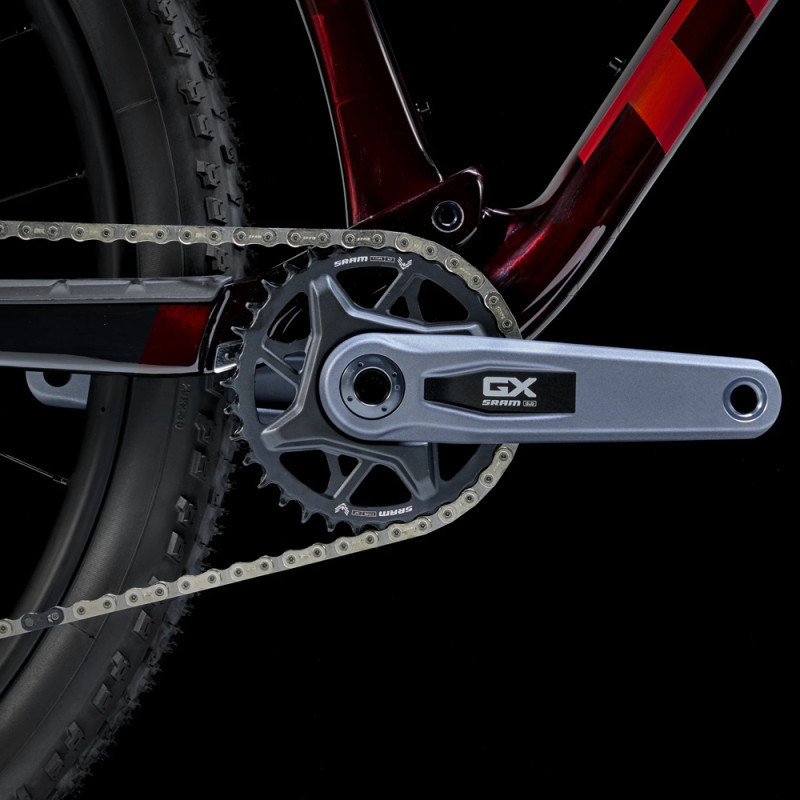

- Crankset: SRAM GX Eagle, Type T, DUB, 34T, 55 mm chainline,
- Crank length: 170 mm (S/M), 175 mm (M-L/L/XL/XXL)
- Bottom bracket: SRAM DUB, 92 mm, PressFit
- Cassette: SRAM Eagle XS-1275, Type T, 10-52, 12-speed
- Chain: SRAM GX Eagle, Type T, 12-speed
- Max. chainring size: 38 teeth

Accessories:

- Saddle: Bontrager Verse Elite, austenite rails, 145 mm width
- Seatpost: Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm (S), 410 mm (M, ML, L), 450 mm (XL)

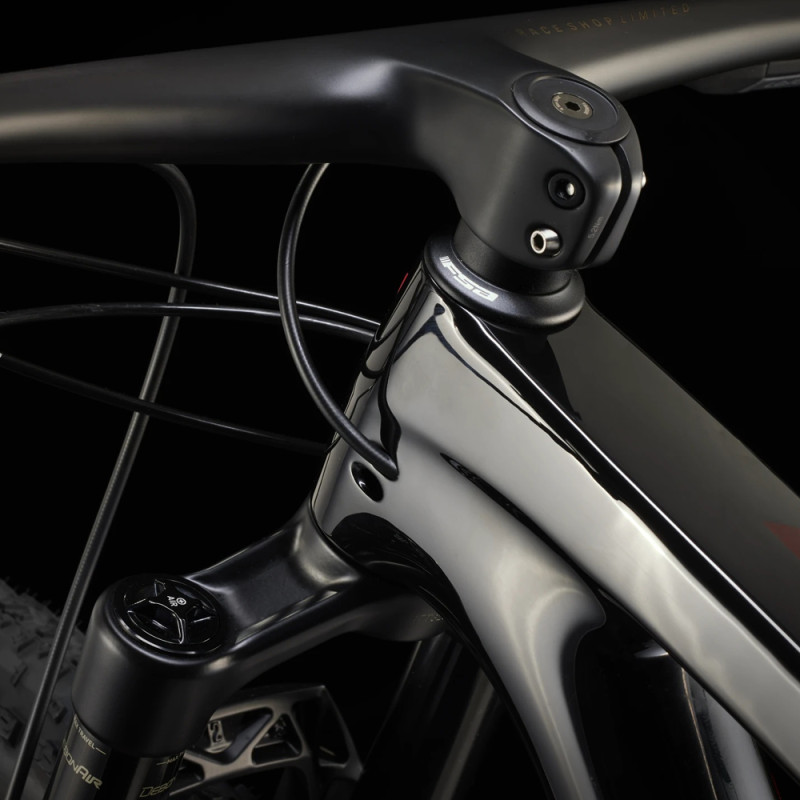

- Handlebar/stem: Bontrager RSL integrated stem/handlebar, OCLV carbon, 0 mm handlebar rise, 750 mm width, -13° stem angle
- Stem length: -13°, 70 mm (S/M/M-L), -13°, 80 mm (L), -13°, 90 mm (XL)

Braking:

- Brakes: SRAM Level Bronze hydraulic, 4-piston disc
- Discs: SRAM CenterLine, 6-hole, rounded edge, 180 mm (front) / 160 mm (rear)

General information:

- Weight: 11.28 kg (M)
- Max. load: 136 kg

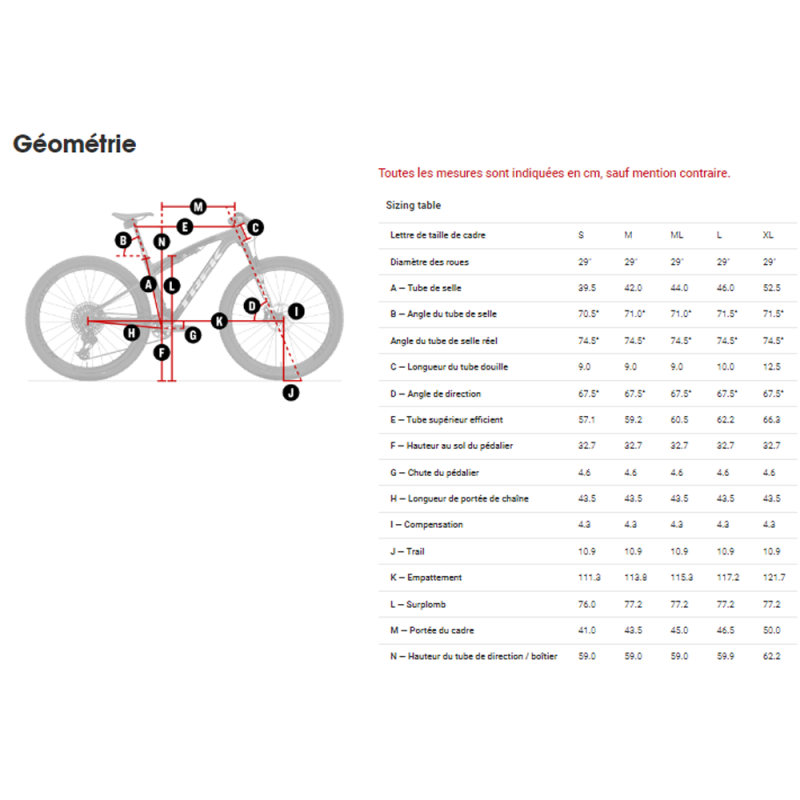

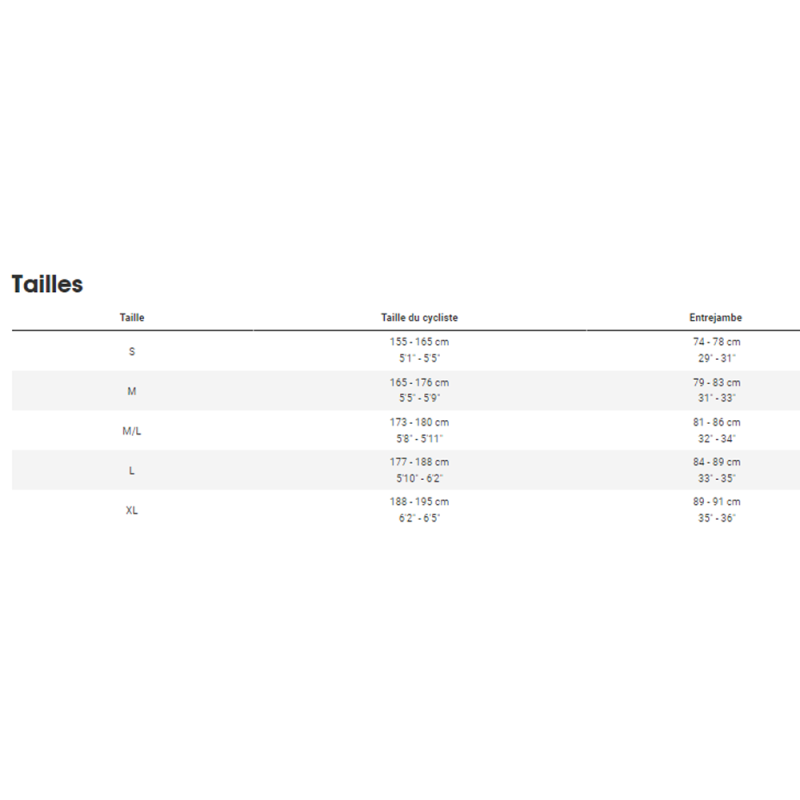

- Size: S / M / M-L / L / XL / XXL - Size guide in photo gallery
- Colour: Carbon Red Smoke (Black and red)
- Brand: Trek
