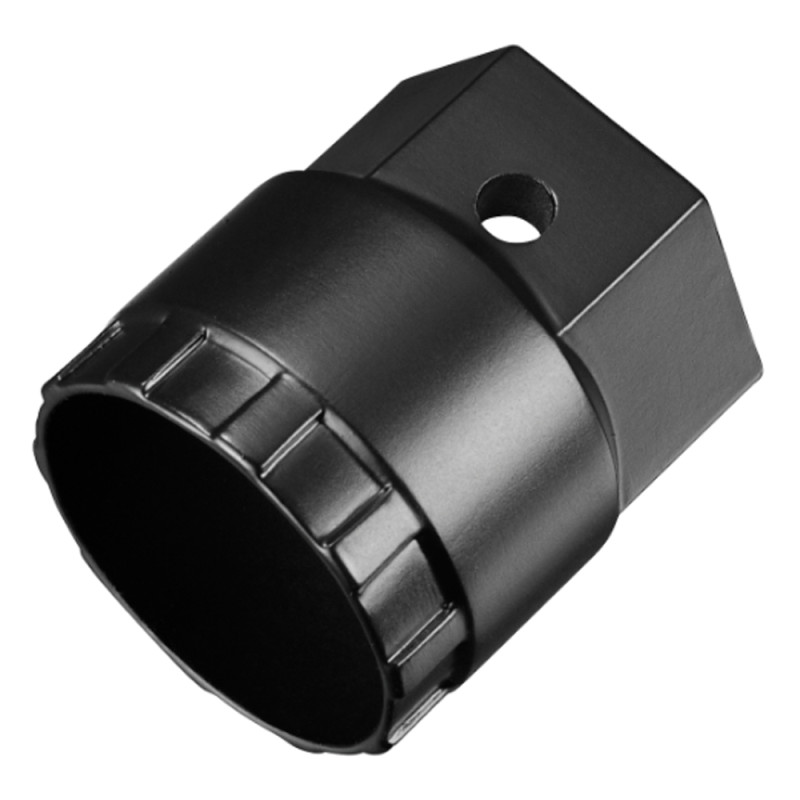

Nut remover Shimano TL-LR11 - Y8PW04100

The TL-LR11Shimano (part no. Y8PW04100) is a specialised tool designed for fitting and removing the Center Lock locking nuts used on Shimano brake discs, particularly models such as the SM-RT10. It allows you to work neatly on the brake assembly without damaging the nut or the hub.

Made from hardened steel, it offers excellent rigidity and high durability, even when used in a workshop. Its specific internal profile ensures a precise grip on Center Lock clamping rings with internal grooves, minimising the risk of slippage during loosening.

It is used with a 24 mm spanner or a 1/2" square drive, making it compatible with standard bicycle mechanics’ tools (ratchet spanner or open-ended spanner). Compact and effective, it is particularly popular with mechanics for quick repairs on brake discs.

Key features

• Shimano reference: Y8PW04100

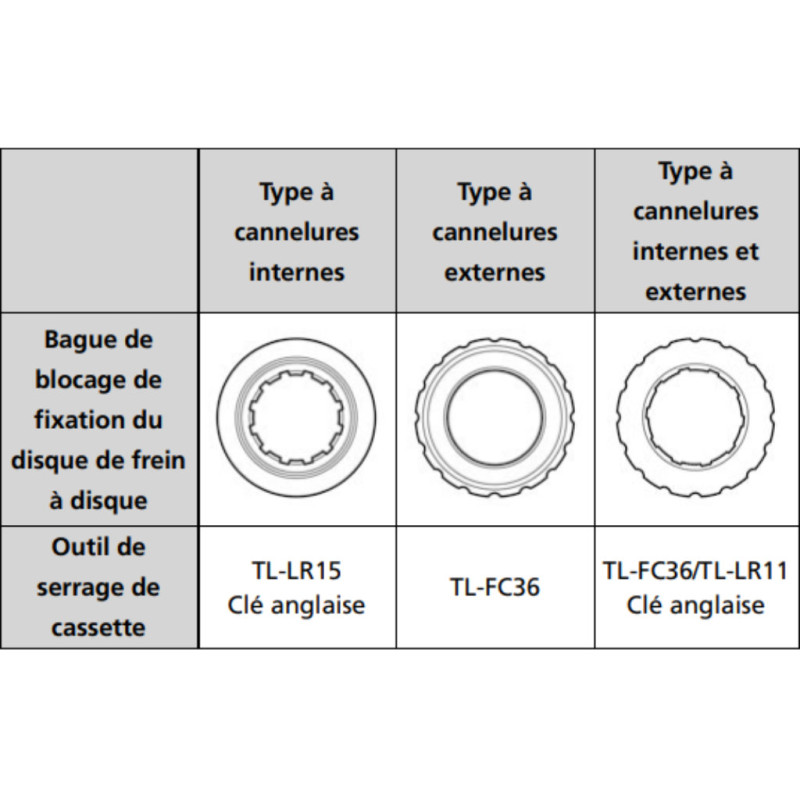

• Compatible with Centre Lock systems (internal recess)
• Designed for Shimano SM-RT10-type discs
• High-strength hardened steel
• For use with a 24 mm spanner or 1/2" drive
• Tool for fitting and removing brake rings
• For workshop use and bike maintenance

FAQ

What is the TL-LR11 used for?

It is used to remove and fit Center Lock clamping rings that secure the brake discs to the hub.

Is this a cassette tool?

No. Although it resembles some cassette removers, it is specifically designed for Centre Lock brake discs.

Is it compatible with all Centre Lock discs?

No, only with SM-RT10-type internal-mount systems.

What tool do you need to use it?

A 24 mm spanner or a 1/2" square (ratchet) is sufficient.

Can you manage without it?

In some cases, a universal tool may work, but the TL-LR11 ensures a better grip and reduces the risk of damaging the ring.
