Shimano 105 mechanical 12-speed road front derailleur FD-R7100-F - IFDR7100F

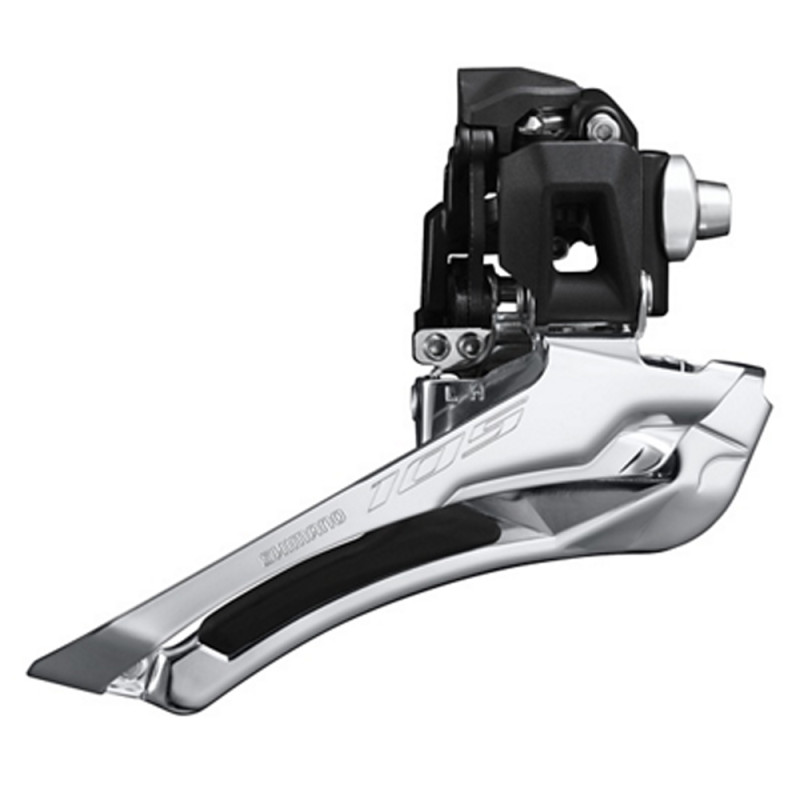

The Shimano 105 FD-R7100-F front derailleur represents the new generation of 12-speed mechanical road drivetrains. Developed to complement the Shimano 105 R7100 groupset, it offers smoother, lighter and more precise chainring changes than previous generations, whilst retaining the reliability for which the 105 range is renowned. Its braze-on design is intended for frames fitted with a specific integrated mount.

Thanks to its Toggle Link technology, directly inherited from the high-end Shimano groupsets, the FD-R7100-F reduces the effort required to shift between chainrings whilst improving the precision of the adjustment. Its integrated cable tensioner simplifies installation and allows for fine-tuning of the cable tension to ensure consistent gear changes in all conditions.

Compatible with Shimano 2x12-speed road drivetrains and 12-speed HG chains, this derailleur is designed to work with chainrings ranging from 50 to 52 teeth and a total capacity of 16 teeth. Its optimised design also ensures excellent compatibility with modern frames fitted with disc brakes.

Key features

• Compatible with Shimano 2x12-speed road drivetrains.
• Braze-on mounting.
• Toggle Link technology for smoother chainring shifting.
• Reduced effort on the shift levers.
• Precise adjustment thanks to the integrated cable tensioner.
• Compatible with Shimano HG 12-speed chains.
• Designed for chainrings with 50 to 52 teeth.
• Total capacity of 16 teeth.
• Weight approx. 96 g.

FAQ

Is this front derailleur compatible with all Shimano 12-speed drivetrains?

The FD-R7100-F is designed for Shimano mechanical 2x12-speed road groupsets using a 12-speed HG chain. For optimum performance, it is recommended to use it in combination with Shimano 105 R7100 components.

What is the difference between this and the 11-speed FD-R7000?

The FD-R7100-F features a new Toggle Link geometry, a chainline adapted for 12-speed drivetrains and smoother operation requiring less effort when changing chainrings.

Is this model compatible with bikes fitted with disc brakes?

Yes, its design has been optimised to integrate seamlessly with modern road frames, particularly those fitted with disc brakes and internal cable routing.

Is it easy to adjust?

Yes, Shimano has incorporated a tension adjustment system directly onto the derailleur to simplify installation and ensure optimal performance is achieved quickly.

Which chainrings is it compatible with?

The FD-R7100-F is designed to work with large chainrings ranging from 50 to 52 teeth and has a total capacity of 16 teeth.
