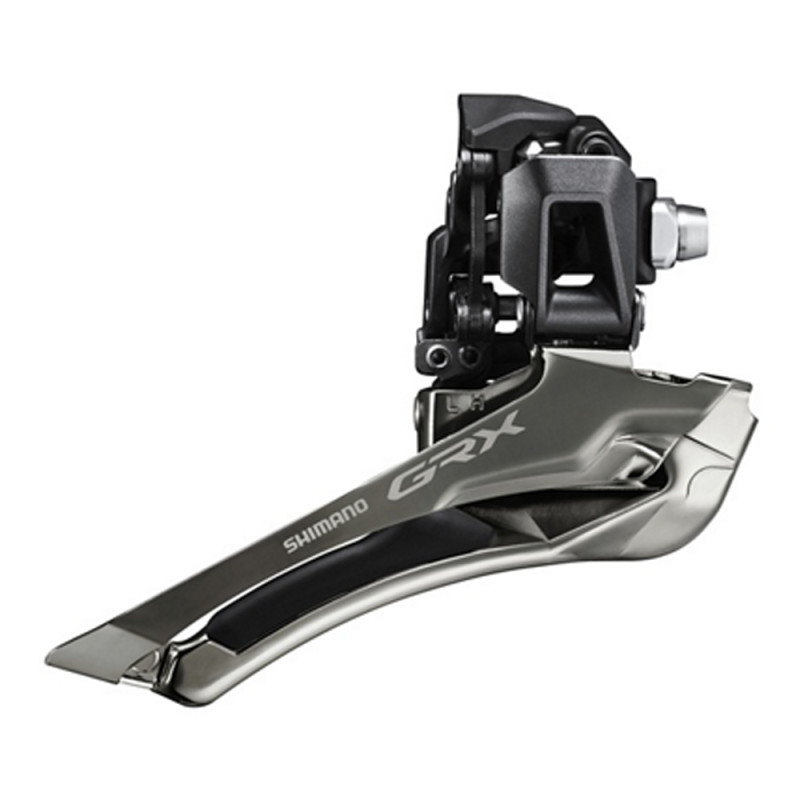

Shimano ’s GRX FD-RX820-F front derailleur has been specially developed for gravel bikes fitted with a 2x12-speed drivetrain. Designed to deliver smooth and reliable chainring changes across all terrains, it incorporates the latest developments from the GRX range to ensure high-performance drivetrain performance on both roads and trails. Its specific gravel design guarantees excellent compatibility with wide-profile tyres and modern frame geometries.

Thanks to its Toggle Link technology, the FD-RX820-F reduces the effort required when changing chainrings whilst improving shifting precision. Its chainline, which is offset by 2.5 mm outwards compared to a conventional road derailleur, provides greater clearance for wide tyres – an essential advantage for gravel riding and bikepacking.

This braze-on version is designed to work with Shimano GRX 2x12-speed cranksets fitted with a large chainring of 46 to 48 teeth. With a total capacity of 17 teeth and an integrated cable tensioner, adjustment is simple and precise, even after several thousand kilometres.

Key features

• Compatible with Shimano GRX 2x12-speed drivetrains.
• Braze-on mounting.
• Toggle Link technology for smoother chainring shifting.
• 47 mm gravel-specific chainline.
• Increased clearance for wide tyres.
• Compatible with 46/30T and 48/31T cranksets.
• Total capacity of 17 teeth.
• Simplified adjustment thanks to the integrated cable tensioner.
• Weighs approximately 96 g.

FAQ

Is this front derailleur compatible with a Shimano, 105 or Ultegra 12-speed groupset?

No. The FD-RX820-F uses a specific 47 mm GRX chainline, which is wider than that of the Shimano, 105, Ultegra or Dura-Ace road groupsets. It is designed to work with GRX 2x12-speed Shimano cranksets.

Which cranksets are compatible?

The Shimano GRX FD-RX820-F is compatible with GRX 2x12-speed cranksets fitted with 46/30-tooth or 48/31-tooth chainrings.

Why choose a GRX front derailleur over a road model?

The GRX range is specifically designed for gravel riding. Its wider chainline improves tyre clearance and optimises drivetrain performance on mixed terrain.

Is it easy to adjust?

Yes. The FD-RX820-F features a cable tensioner integrated directly onto the derailleur, allowing for quick and precise adjustment without the need for additional accessories.

Is this model suitable for bikepacking and long-distance riding?

Absolutely. Its robustness, precision and compatibility with wide-range gravel gear sets make it an excellent choice for long-distance adventures, bikepacking and rides over varied terrain.
