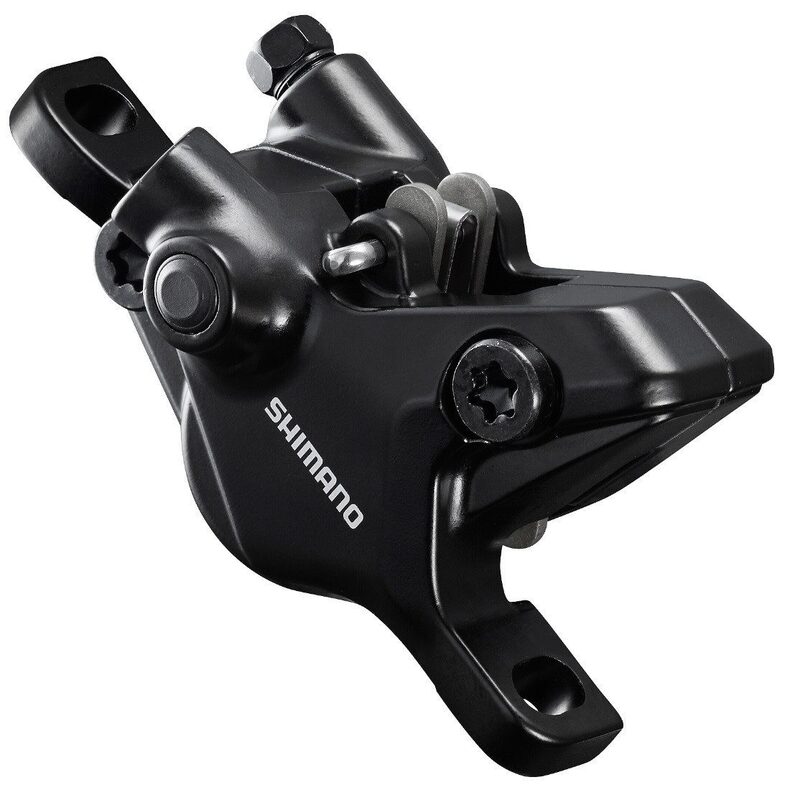

Shimano BR-MT410 2-piston MTB disc brake caliper - EBRMT410MPRXL

Controlled braking thanks to technology Shimano

The stirrup Shimano The BR-MT410 is fitted with two pistons that apply pressure to the brake pads to slow the brake disc. This design ensures balanced braking and modulation tailored to the needs of mountain bikers.

The pistons’ rapid return helps ensure the system responds well when the lever is released. This gives the rider precise control over their speed, whether on forest tracks, hiking trails or undulating terrain.

A robust yet lightweight design

The caliper body is made from painted aluminium, a material that combines mechanical strength with weight efficiency. The resin pistons form part of the hydraulic braking system.

Its black finish blends in easily with most mountain bike set-ups. Designed for regular use, this brake caliper Shimano DEORE offers a practical solution for replacing a damaged component or repairing a hydraulic brake.

Simplified bleeding with the One Way Bleeding system

The one-way venting system Shimano One Way Bleeding makes it easier to remove air from the hydraulic system during servicing. When carried out correctly, bleeding restores firm lever feel and consistent braking performance.

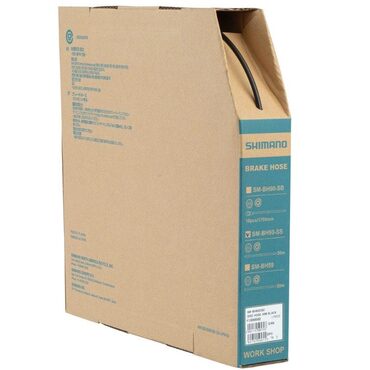

The brake caliper operates using mineral oil Shimano. It is important to use the fluid specified by the manufacturer and to use a compatible hose, in particular part number SM-BH59-JK-SS, which is recommended for this model.

Compatibility and installation

The Shimano The BR-MT410 is designed for post-mount fitting. It can be fitted at the front or rear, provided that the frame, fork, disc and mountings are compatible.

The supported disc diameters depend on the mounting method and the adapter used. Shimano indicates compatibility with several disc sizes, including 140, 160, 180, 200 and 203 mm, depending on the configuration.

To maintain optimum performance, it is recommended that you use brake pads suitable for the caliper and a brake disc compatible with resin brake pads. The part numbers for the brake hose and the brake lever should also be checked before purchase.

Why choose the stirrup? Shimano BR-MT410 ?

• A two-piston hydraulic system for controllable braking.
• An aluminium construction that combines robustness with a controlled weight.
• Bleeding is made easier thanks to One Way Bleeding technology.
• Compatibility with a range of braking systems Shimano.
• A solution designed for the maintenance and replacement of a mountain bike brake caliper.

The stirrup Shimano The DEORE BR-MT410 is a suitable choice for restoring smooth hydraulic braking on a compatible mountain bike, provided that the fitting instructions and the part numbers of the associated components are followed.

Technical specifications
