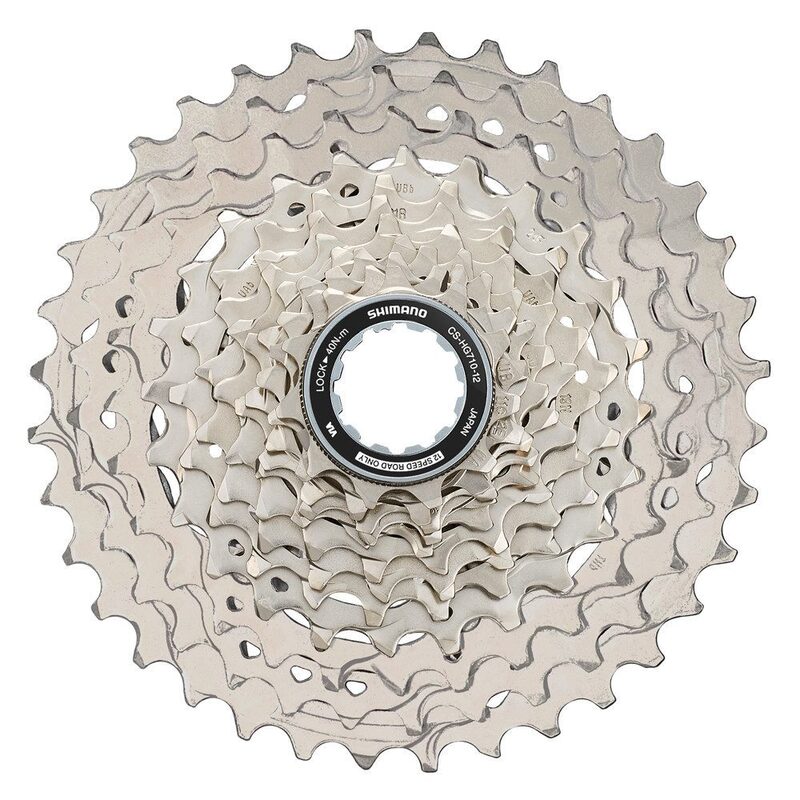

Shimano CS-HG710 12-speed Di2 road and mountain bike cassette - ICSHG71012136

Shimano 105 12-speed cassette – push your limits

The Shimano CS-HG710 12-speed cassette – part number ICSHG71012136 – is designed to deliver fast, quiet and precise gear changes on Shimano 12-speed drivetrains . Developed for the Shimano 105 Di2 R7100 groupset , it incorporates technologies from the high-end Ultegra and Dura-Ace groupsets to ensure a smooth ride and consistent performance on roads, gravel and demanding trails.

With its 11–36-toothrange , this cassette offers a wide gear ratio of 327 per cent, ideal for switching between long climbs, undulating routes and fast-paced sections. The first eight sprockets are closely spaced to maintain a steady cadence, whilst the four largest sprockets make the most demanding climbs easier without excessive gaps between the gears.

Compatible with Shimano HG 11- and 12-speed road freehub bodies, the CS-HG710 is also an excellent choice for certain gravel and MTB set-ups using a compatible 12-speed Shimano drivetrain. Its steel construction ensures excellent wear resistance, whilst its aluminium cage helps to keep weight down without compromising stiffness.

Key features

• Genuine Shimano cassette.
• Ultra-smooth12-speeddrivetrain .
• Versatile11-36-tooth gearrange .
• Ideal for road, gravel and hilly terrain.
• Fast and precise gear changes thanks to Hyperglide technology.
• Compatible with Shimano HG 11- and 12-speed road freehub bodies.
• Excellent durability thanks to steel sprockets.
• Manufacturer’s part number: ICSHG71012136.

Technical specifications

• Brand: Shimano
• Model: CS-HG710-12
• Partnumber: ICSHG71012136
• Range: Shimano 105 R7100
• Number of gears: 12
• Tooth count: 11-12-13-14-15-17-19-21-24-28-32-36 teeth
• Gear ratio range: 327%
• Materials:
  • Cogwheels: steel

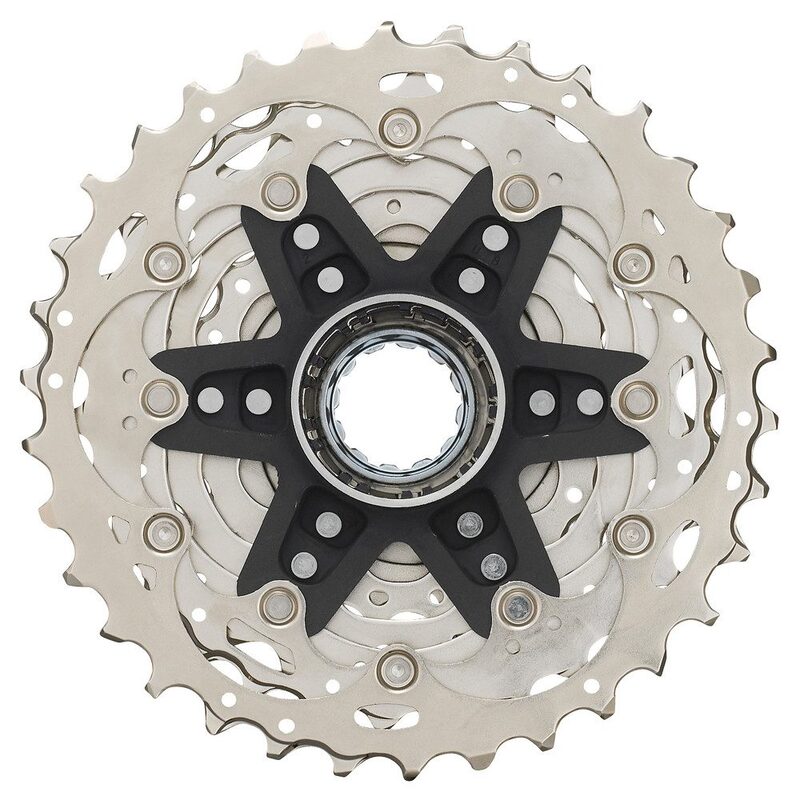

  • Spider: aluminium
• Compatibility:
  • Chains Shimano, HG 12-speed
  • Freewheel body Shimano HG 11/12-speed Road (HG L / HG L2)
• Use: Road, Gravel, All-road.

FAQ

Is this cassette compatible with a Shimano 105 Di2 12-speed groupset?

Yes. The CS-HG710 has been developed for the Shimano 105 Di2 R7100 groupset and is also compatible with compatible 12-speed Road Shimano drivetrains.

Can it be fitted to a Shimano 11-speed freehub body?

Yes. It is compatible with Shimano HG 11-speed Roadfreehub bodies as well as the new HG L2 12-speed freehub bodies.

Why choose an 11-36-tooth cassette?

The 11-36 gear range offers excellent versatility. It allows you to maintain a good speed on the flat whilst making climbs easier thanks to the large 36-tooth cog.

Is this cassette suitable for gravel bikes?

Yes. Thanks to its wide gear range, it is perfectly suited to gravel bikes fitted with a compatible 12-speed Shimano.

Is it compatible with an 11-speed chain?

No. This cassette is designed exclusively to work with a 12-speed Shimano chain.
