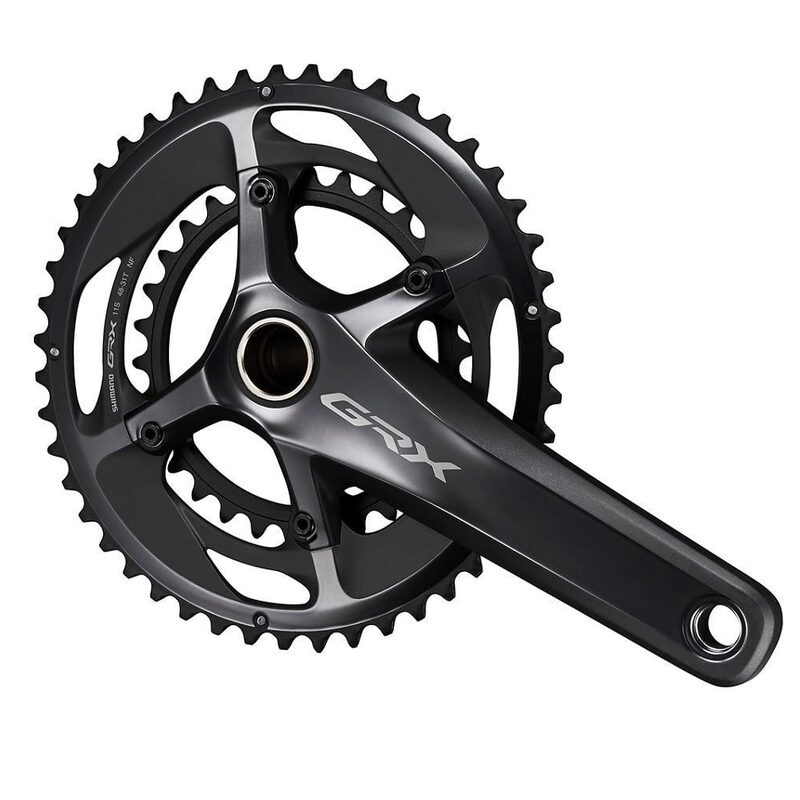

Special Gravel - Double chainring 48-31 - Hollowtech II
The Shimano GRX double chainring crankset allows you to benefit from Shimano's cutting-edge technologies, but adapted for gravel use.
20 years' experience in the world of cycling
Shimano ’s GRX FC-RX810-2 2×11-speed crankset is a versatile, high-performance solution designed to meet the needs of gravel, cyclocross and road cyclists. This double-chainring crankset (e.g. 48–31 teeth) combines perfectly spaced gear ratios with optimum pedalling efficiency, allowing you to tackle both long flat sections and technical climbs with ease.
Thanks to HOLLOWTECH II technology, it offers increased stiffness whilst keeping weight under control, ensuring direct power transfer with every pedal stroke. Its wider chainline (~47 mm) is specifically designed to provide more space for the wide tyres found on modern gravel frames, whilst ensuring perfect compatibility with 2×11-speed drivetrains Shimano, and HG-EV/HG-X11 chains.
Available in several crank lengths (170 mm, 172.5 mm or 175 mm), this crankset adapts to your riding position and optimises efficiency on all types of surfaces, from smooth roads to stony tracks.
Key features:
- Optimal gear range for mixed terrain and all types of riding
- System with a wider front gear range
- Chainring combination: 48-31t
- Chain compatibility: HG-EV 11-speed, HG-X11
- Crank length: 170 mm, 172.5 mm, 175 mm
- Recommended Pressfit bottom bracket: SM-BB72
- Recommended bottom bracket shell: SM-BBR60
- Technology: Hollowtech II
- Threaded bottom bracket width: 68 mm, 70 mm
- Q-factor (mm): 151
- BCD: 110/80
- Weight: 710 grams
| Speed compatibility | 11v |
|---|---|
| Toothing | 48-31 |
| Crank length | 172.5mm |
| EAN | 4550170448585 |
| Supplier reference | IFCRX8102DX81 |
Average rating: 5 out of 5
Based on 3 reviews
Show attestation (opens in a new window)
Excellent pedal, effective in gravel conditions while allowing for excellent performance on road or compact paths.
Good product compatible with Ultegra R8000 group. Correct price, very fast order processing.
super aesthetic and practical pedal for gravel bike. 48-31 top with 11-36 cassette!
No review matches this rating.
3 reviews shown out of 3
The most common version has 48–31 teeth, offering a wide usable range for gravel or varied road conditions.
It is compatible with the Shimano HG‑EV and HG‑X11 11-speed chains.
The bottom bracket is not included: you will need to choose a compatible bottom bracket (68/70 mm) suitable for your frame.
Yes, it is sufficiently stiff and efficient for sporty road cycling whilst remaining optimised for mixed terrain.
| Speed compatibility | Toothing | Crank length | Availability | Price | Supplier reference | EAN | |
|---|---|---|---|---|---|---|---|
| Web | Stores | ||||||
| 11v | 48-31 | 170mm | Dispatch within 4 to 6 days | Sold out | €219.08 | IFCRX8102CX81 | 4550170448660 |
| 11v | 48-31 | 172.5mm | Dispatch within 4 to 6 days | Sold out | €209.99 | IFCRX8102DX81 | 4550170448585 |
| 11v | 48-31 | 175mm | Dispatch within 4 to 6 days | Sold out | €263.74 | IFCR8102EX81 | 4550170448776 |
