Bleed screw with seal for disc brakes
Compatible with all Shimano road disc calipers
Ideal for use on mountain roads when descending passes for riders looking for very powerful braking.
Road specialist

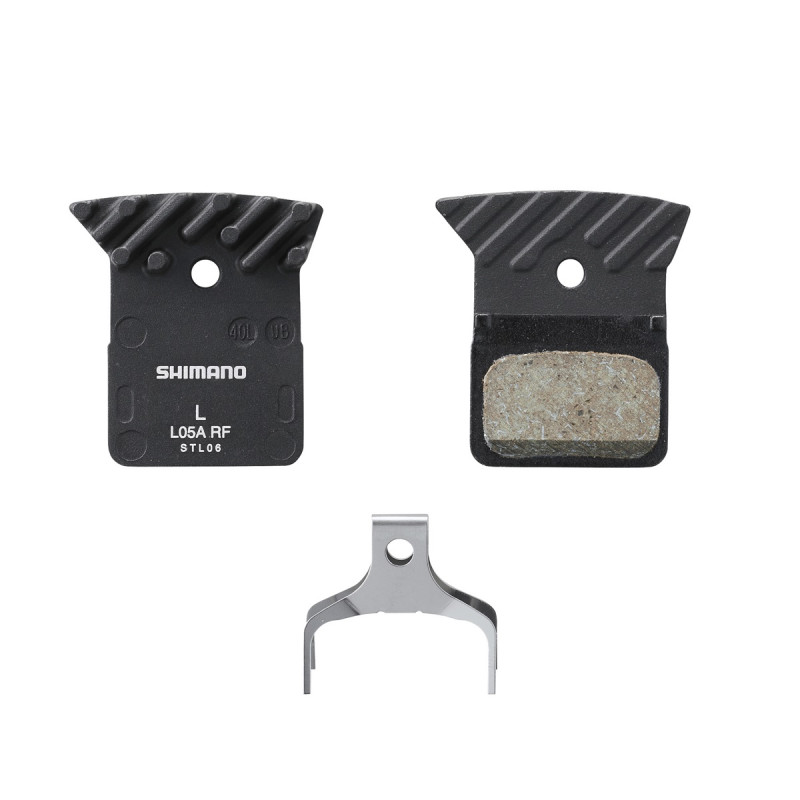

The Shimano L05A-RF, also known as BP-L05A-RF, are resin disc brake pads with cooling fins, designed for Shimano 2-piston hydraulic calipers. They are particularly suitable for many road bike braking systems, as well as certain gravel and mountain bike set-ups.
This generation of pads utilises a 5th-generation resin compound. Shimano claims that they offer 50 per cent greater wear resistance than the L03A pads and 110 per cent greater than the L02A pads, whilst also delivering quieter operation and improved braking modulation.
The organic pad material of the L05A-RF prioritises progressive braking and modulation. This is particularly beneficial on a road bike, where the cyclist generally seeks precise braking that allows them to easily modulate the braking force on descents, through bends or during emergency stops.
Compared to metal pads, resin pads generally offer quieter operation and a more progressive feel. Shimano specifically highlights the benefits of reduced noise and improved modulation with this new generation.
The designation L05A-RF indicates a resin brake pad fitted with a cooling fin.
This fin helps to dissipate the heat generated during repeated braking. It is particularly useful during long descents or when the brakes are under heavy load.
Shimano combines this design with its cooling technology to promote better performance under high temperatures, an extended service life and a reduced risk of temperature-related performance loss.
The L05A-RF pads are compatible with a wide range of calipers Shimano. For road bikes, these include:
They are also compatible with several Gravel and MTB calipers Shimano, including the BR-RX810, BR-RX820, BR-RX400, BR-RX410, BR-M7110 and BR-M8110.
Please note: the L05A-RF code must match the brake caliper exactly. Do not choose a brake pad simply because it is advertised as ‘ Shimano ’ or ‘105/Ultegra’.
The L05A-RF represents an interesting development on the widely used L03A.
Shimano It is claimed to offer 50 per cent greater wear resistance than the L03A and 110 per cent greater than the L02A. The brand attributes this improvement to a new resin-based friction material.
For a cyclist who rides regularly and wishes to extend the intervals between replacements, this development may therefore be of interest.
| Feature | Details |
|---|---|
| Brand | Shimano |
| Part number | L05A-RF / BP-L05A-RF |
| Type | Disc brake pads |
| Lining | Organic resin |
| Generation | 5th-generation resin |
| Fin | Yes |
| Shape | Narrow type, L |
| Rear plate | Alloy |
| Caliper | 2-piston |
| Use | Road, gravel, mountain biking depending on caliper |
| Technology | Cooling / ICE TECHNOLOGIES |
| Wear resistance | +50% compared to L03A, depending on Shimano |
| Notable compatibility | R9270, R8170, R7170, R9170, R8070, R7070, BR-4770, etc. |
The specifications and improvements in wear resistance are as provided by Shimano.
Shimano ’s L05A-RF organic brake pads with cooling fins are an excellent solution for road bikes fitted with compatible Shimano calipers. Their 5th-generation resin, cooling fin, quiet operation and good modulation make them a particularly versatile choice. Shimano also claims that they offer 50 per cent greater wear resistance than the L03A.
| Brand compatibility | Shimano |
|---|---|
| Type of inserts | Organic |
| EAN | 4550170451721 |
| Supplier reference | Y8PU98040 |
Average rating: 4.9 out of 5
Based on 484 reviews
Show attestation (opens in a new window)
No surprises
As described
Not installed yet
Not yet installed. Not yet installed but as ordered
Very good value for money. Easy to assemble.
Products that meet my needs
I’ll tell you more after the next trip to the Pyrenees. For now…
Waiting, not used yet.
Great
No noise, guaranteed efficiency
No review matches this rating.
10 reviews shown out of 484
The brake pads are compatible with resin-type disc brakes ( Shimano ), as used on road bikes. Always check your brake caliper model before purchasing.
The L05A brakes are designed for powerful, quiet braking, featuring a high-performance resin compound that is ideal for wet or muddy conditions. They differ from metal models (ICE or metal), which offer greater durability but produce more noise and provide less modulation.
Replace the brake pads when:
- The pad thickness is less than 1 mm.
- You hear a constant squeaking noise or notice a loss of braking power.
- You experience vibrations when braking.
Yes. Thanks to their high-quality resin formulation, they provide quiet and progressive braking, even in wet conditions.
Yes. These brake pads are designed to deliver reliable performance in all weather conditions, providing consistent braking on muddy or wet terrain.
Remove the old brake pads from the caliper.
Insert the new L05A pads into the caliper.
Make sure the disc is properly centred in the caliper.
Tighten and test the brake before use.
No special tools are required, but always follow the manual at Shimano for your specific model.
No, they are only compatible with resin brakes Shimano. For metal brakes, use the specific metal brake pads Shimano L04C.
Powerful and progressive braking.
Quiet and comfortable to use.
Excellent performance in all weather conditions.
Quick and easy to fit.
Lifespan varies depending on riding style and conditions: approximately 1,500 to 5,000 km for mixed use, but may be reduced on very muddy terrain or with intensive use in the mountains.
