Di2 and hydraulic disc brakes
Road specialist

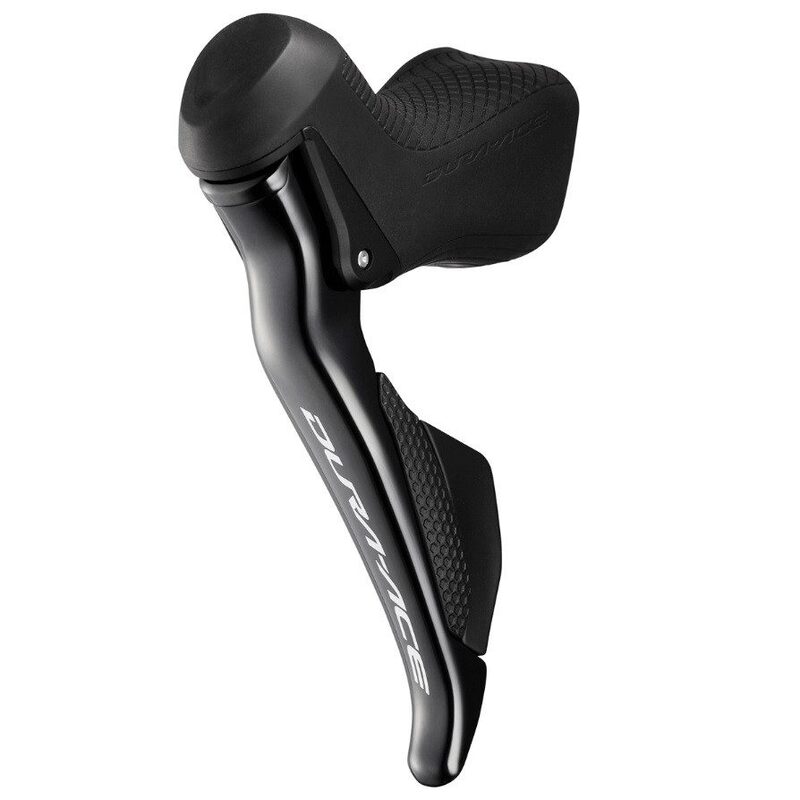

Shimano The Dura-Ace Di2 Disc 11-speed left-hand lever ST-R9170-L, part number ISTR9170L, is a top-of-the-range Dual Control shifter designed for road bikes fitted with an Shimano Dura-Ace Di2 11-speed electronic drivetrain and hydraulic disc brakes.
With its compact design, optimised ergonomics and precise Di2 shifters, it allows for efficient gear changes whilst ensuring reliable hydraulic braking. Shimano has refined the layout and tactile feedback of the shifters to facilitate gear changes during races.
The ST-R9170-L integrates into the Shimano 11-speed Di2 ecosystem and uses the E-Tube connectivity system. It also features an adjustable brake lever reach, allowing the control position to be adapted to the cyclist’s preferences.
The ST-R9170-L combines two essential functions: hydraulic disc braking and electronic gear shifting. Its Dual Control design allows you to maintain a familiar grip on the handlebars whilst enjoying the speed and precision of Di2.
The left-hand shifter is designed to operate within a Dura-Ace R9170 2x11-speed drivetrain. Shimano remains the reference in its Di2 compatibility documents for systems using BT-DN110/BT-DN110-A batteries and compatible 11-speed road derailleurs.
| Tray compatibility | double chainring |
|---|---|
| Speed compatibility | 11v |
| Transmission type | Electric |
| EAN | 4524667848554 |
| Supplier reference | ISTR9170L |
Yes. ST-R9170-L refers to the left-hand Dura-Ace Di2 control unit for hydraulic disc brakes. The right-hand version is designated ST-R9170-R.
Yes. The ST-R9170-L is designed for the Dura-Ace DiShimano ’s 11-speed Dura-Ace Di2 and Ultegra systems, particularly in a 2x11 configuration.
Yes. This is a Dual Control set specifically designed for hydraulic disc brakes. Shimano recommends, in particular, the BR-R9170 caliper and the SM-BH90-JK-SSR hose.
No, it should not be regarded as a modern 12-speed Di2 groupset. The ST-R9170-L is part of the Dura-Ace Di2 R9170 11-speed architecture, featuring the E-Tube connectivity and components of that generation. Shimano ’s compatibility chart lists it as compatible with 11-speed Di2 road systems.
Yes. Shimano explains how to adjust the brake lever reach, allowing the rider to tailor the lever position to their preferences.
It belongs to the E-Tube Di2 11-speed generation, utilising the connections specific to this architecture. It is notably listed by Shimano amongst the controls compatible with the corresponding Di2 batteries and components.
