TL-FC41 chainring installation tool for direct-mount XTR crankset ( Shimano ) - Y13098720

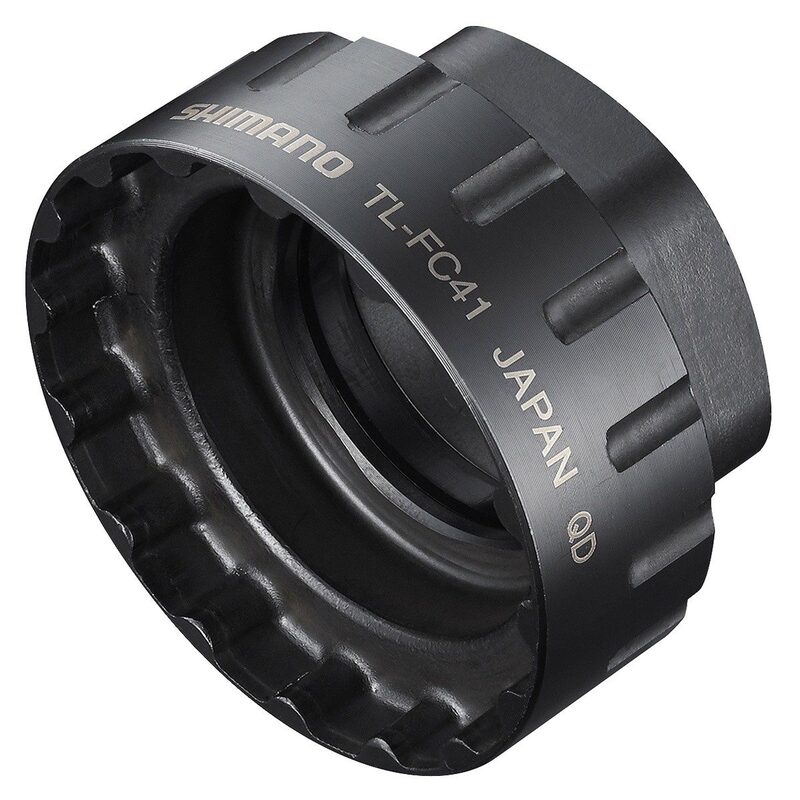

The Shimano TL-FC41 Y13098720 tool is a specialised workshop tool designed for fitting and removing the locking ring on Shimano Direct Mount chainrings. In particular, it is used on Shimano XTR, XT and SLX 12-speed MTB cranksets fitted with a direct-mount chainring.

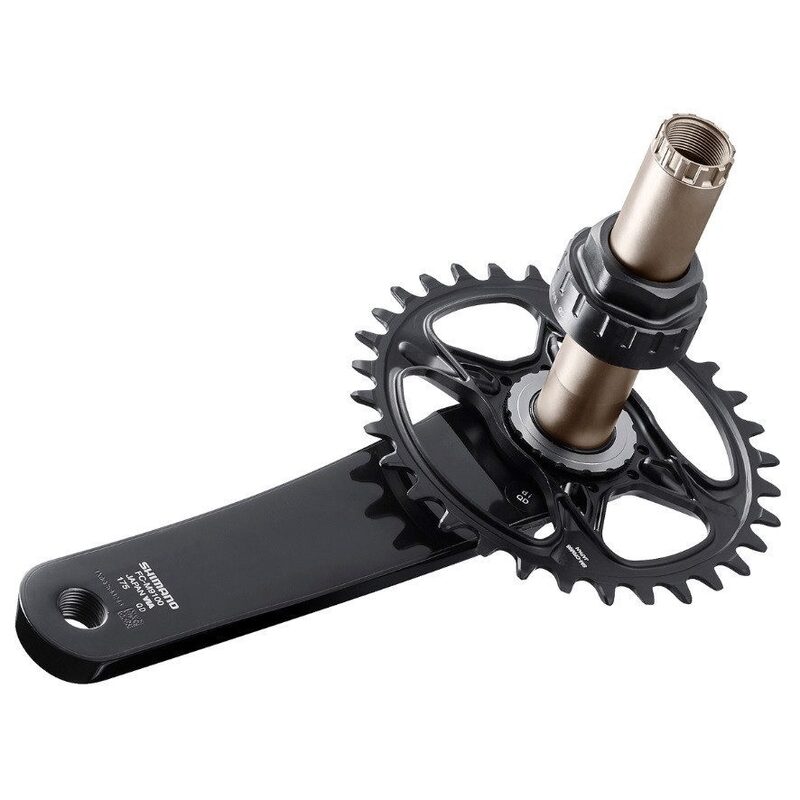

Essential for the correct replacement or maintenance of a Direct Mount chainring, the TL-FC41 fits directly onto the chainring’s locking ring. It can be used with a TL-FC32, TL-FC33 or TL-FC36 ‘ Shimano ’ spanner, or with a suitable 32 mm spanner depending on the configuration.

Made from hardened steel, this Shimano tool features a rigid and durable construction. Its precision-machined grooved profile is designed to match the shape of the locking ring and ensure reliable engagement during tightening and loosening operations.

Key features of the Shimano TL-FC41

• Genuine Shimano tool for Direct Mount chainrings.
• Manufacturer’s part number: Y13098720.
• Model: TL-FC41.
• Enables the installation and removal of the chainring locking ring.
• Compatible with Shimano XTR, XT and SLX 12-speed MTB cranksets.
• Compatible in particular with the XTR M9100/M9120, XT M8100/M8120/M8130 and SLX M7100/M7120/M7130 ranges.
• Hardened steel for excellent rigidity and durability.
• Precise spline profile for optimum engagement.
• Compatible with TL-FC32, TL-FC33 or TL-FC36.
• Can also be used with a 32 mm spanner or a suitable open-ended spanner.
• EAN: 4524667699262.

An essential tool for Shimano Direct Mount chainrings

Shimano Direct Mount chainrings use a specific locking ring that requires a suitable tool to be removed or tightened correctly. The TL-FC41 allows you to carry out this operation without using a makeshift tool that could damage the ring.

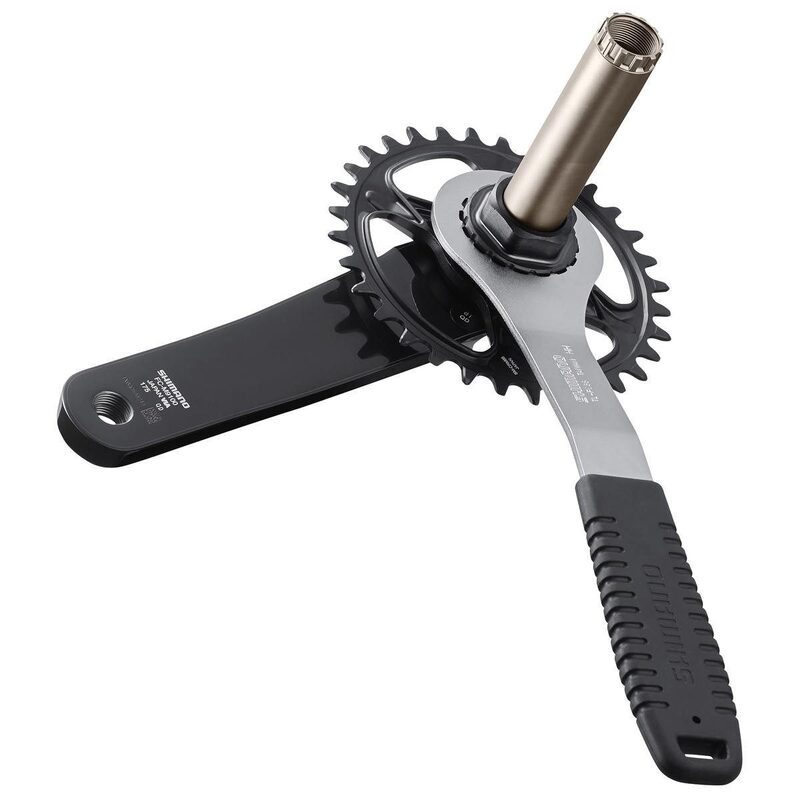

Simply position the tool correctly on the locking ring, then use the appropriate supplementary tool to apply the required torque.

Shimano In particular, a TL-FC41 + TL-FC32 combination is recommended for chainring fitting, with a tightening torque of 35 to 50 Nm. The TL-FC41 + TL-FC36 and TL-FC41 + 32 mm spanner combinations are also provided for.

Compatibility with Shimano XTR, XT and SLX cranksets

The TL-FC41 has been developed for Shimano MTB cranksets using a Direct Mount chainring system. It is notably compatible with:

• Shimano XTR FC-M9100 / FC-M9120 / FC-M9130;
• Shimano Deore XT FC-M8100 / FC-M8120 / FC-M8130;
• Shimano SLX FC-M7100 / FC-M7120 / FC-M7130;
• other 12-speed cranksets ( Shimano ) specified by the manufacturer.

Shimano ’s documentation also identifies Y13098720 as the TL-FC41 tool associated with the relevant XTR cranksets.

Hardened steel and precision profile

A tool designed to tighten a chainring must be able to withstand significant force without deforming. This is why Shimano useshardened steel here.

The tooth profile of the TL-FC41 is precisely matched to the locking ring. This design ensures effective engagement of the tool and reduces the risk of slippage during removal or tightening.

To protect both the ring and the tool, however, it is essential to keep the TL-FC41 fully engaged throughout the entire operation.

Workshop tip: before removal, ensure that the splines on the TL-FC41 are fully engaged with the ring. When refitting, observe the Shimano torque of 35 to 50 Nm and use the correct tool combination for your assembly.
