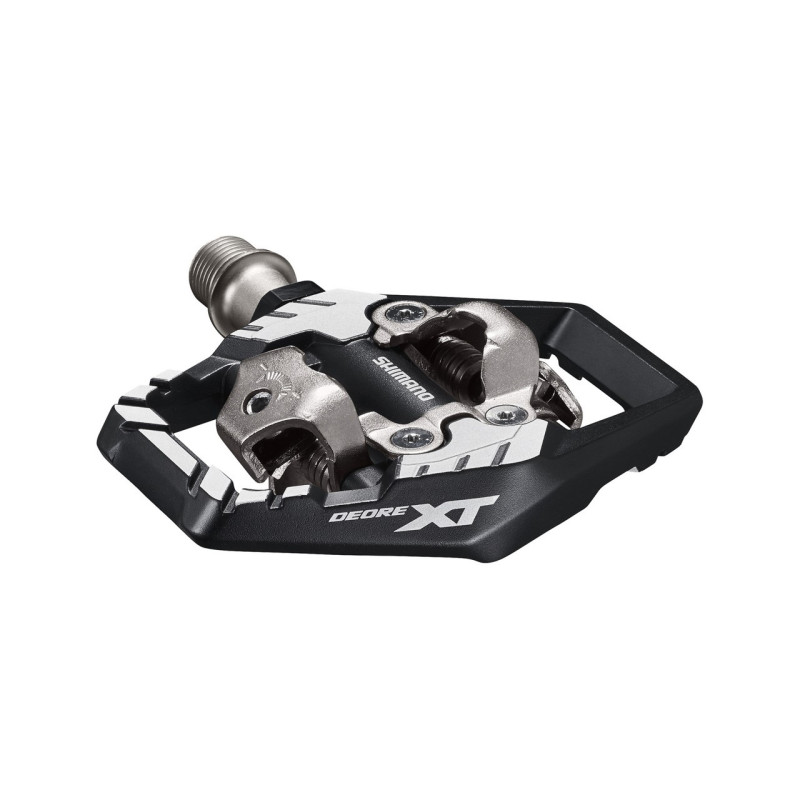

SHIMANO DEORE XT PD-M8120 Double-sided MTB pedals - EPDM8120

The SHIMANO DEORE XT PD-M8120 are top-of-the-range SPD automatic pedals specially developed for Trail, All-Mountain and Enduro riding. Designed to offer a perfect balance between performance, control and robustness, they combine the legendary reliability of the Shimano SPD system with a wider platform that improves foot stability in the most technical sections. Their double-sided design makes them easy to clip in quickly, while their integrated cage provides extra security when the rider is not clipped in.

Thanks to their wide support surface, the PD-M8120s optimise power transfer between shoe and pedal. The low platform height improves pedalling stability and gives a feeling of direct connection with the bike. This architecture is particularly appreciated on long mountain rides or steep descents where control of the bike is essential.

The integrated protective cage is one of the main changes compared to conventional SPD XC pedals. It effectively protects the mechanism from impacts with rocks, while offering better support when the foot is not fully engaged. This makes them particularly suitable for Trail and Enduro riders on rough terrain.

Equipped with a chromoly steel axle and high-quality sealed bearings, the PD-M8120 guarantees excellent wear resistance and long-lasting performance even in difficult conditions. The tension adjustment system allows you to precisely adapt the engagement and release force to the rider's preferences.

Technical specifications

• Model : SHIMANO DEORE XT PD-M8120
• Reference : EPDM8120
• Series: DEORE XT
• Type : SPD automatic pedals
• Mounting : Double face
• Use : Trail, All-Mountain, Enduro
• Integrated protection cage
• Chromoly steel axle
• Waterproof mechanism
• Adjustable release and engagement tension
• Shims supplied: SM-SH51
• Optional shims: SM-SH56
• Platform height: 16.2 mm
• Pedal centre: 55 mm
• Weight: approx. 438 g per pair
• Colour: black

---

FAQ

Who are the SHIMANO XT PD-M8120 pedals designed for?

They are designed for Trail, All-Mountain and Enduro bikers looking for more stability and protection than a traditional SPD XC pedal.

What's the difference between the PD-M8120 and PD-M8100?

The PD-M8120s have an integrated perimeter cage that improves impact protection and offers better support when the foot is not engaged. The PD-M8100 are lighter for cross-country use.

Are cleats supplied with the pedals?

Yes, the pedals are supplied with Shimano SM-SH51 unidirectional release cleats.

Can I adjust the release force?

Yes, the SPD mechanism allows you to fine-tune the tension to suit your level and style of riding.

Do these pedals stand up well to tough conditions?

Absolutely. Their chromoly axle, sealed bearings and robust design mean they can cope effectively with mud, damp and technical terrain.
