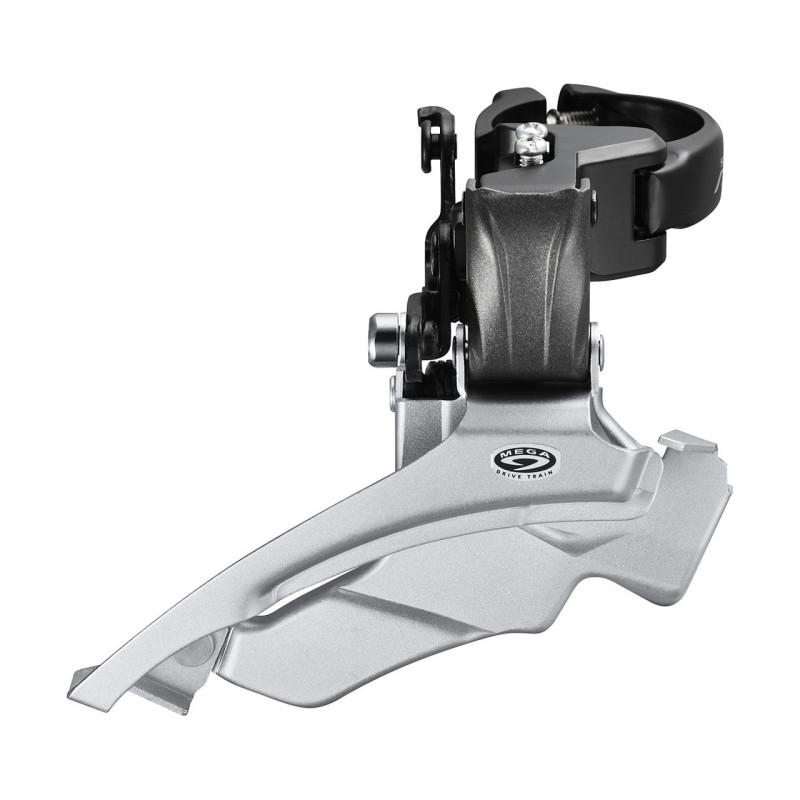

Shimano Altus FD-M3713 triple 9-speed MTB and hybrid front derailleur

The SHIMANO ALTUS FD-M3713-SET front derailleur is specially designed for triple chainring drivetrains, offering smooth, precise and reliable gear changes. Thanks to Down Swing technology, it ensures efficient and stable chain guidance, even on demanding terrain or when climbing.

Compatible with frames fitted with a 34.9 mm clamp, this derailleur comes with 31.8 mm and 28.6 mm adapters, ensuring broad compatibility and easy installation. Robust and durable, it benefits from Shimano quality, renowned for its high-performance and durable bicycle components.

Ideal for mountain biking, trekking or leisure cycling, the Shimano Altus FD-M3713-SET front derailleur is an excellent choice for replacing or upgrading your triple chainring drivetrain.

Shimano front derailleur, Shimano Altus FD-M3713, triple chainring derailleur, Down Swing derailleur, Shimano MTB derailleur, 34.9 mm front derailleur.

Technical specifications

Product type: Mechanical front derailleur for bikes (triple chainring)
Model: Shimano Altus Down Swing (FD-M3713 / FD-M313-SET)
Gear compatibility: 3-chainring front compatible with 7/8-speed rear
Shifting technology: Down Swing for smooth and precise shifting
Cable pull: Dual Pull (top and bottom cable routing)
Clamp diameter: 34.9 mm with adapters included: 31.8 mm and 28.6 mm
Frame compatibility: Top clamp mounting on various frame tubes with adapters
Total capacity: Approx. 20 teeth
Maximum recommended large chainring: Approx. 42–48 teeth
Chainline: Approx. 47.5–50 mm
Application: MTB, hybrid, touring and leisure bikes
Materials: Reinforced steel/chrome chain guards for durability
Weight: Approx. ~189–290 g depending on version and angle
Colour: Silver / metallic grey
Recommended tube angle: Generally around 66–69° depending on frame
