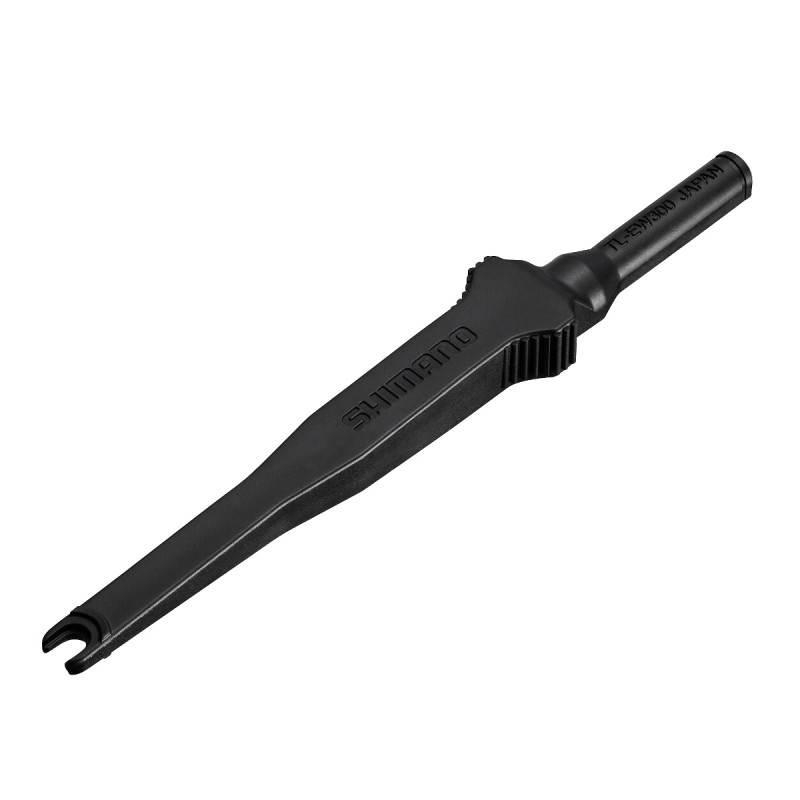

Shimano Di2 12V cable fitting tool TL-EW300 Y7HE40000

Shimano s TL-EW300 tool for Di2 EW-SD300 electrical cables

The TL-EW300 Y7HE40000 Shimano tool is a workshop accessory specially designed to connect and disconnect EW-SD300 Shimano cables used on new-generation Di2 systems. Shimano It is officially designated as a tool for connecting and disconnecting the EW-SD300.

Compact and easy to use, it allows you to handle the small E-Tube connectors correctly when fitting, servicing or replacing Di2 cabling. It is particularly useful on Shimano 12-speed drivetrains fitted with EW-SD300 cabling.

Key features of the Shimano TL-EW300

• Brand: Shimano
• Part number: Y7HE40000
• Model: TL-EW300
• Specialised tool for Di2 electrical cables
• Compatible with EW-SD300 cables
• Enables cables to be connected and disconnected
• Suitable for new-generation Di2 systems Shimano
• Compact and easy to use
• Designed to prevent direct handling of the connector
• Stated weight: approx. 10 g
• Colour: black.

An essential tool for EW-SD300 Shimano s

The connectors on EW-SD300 cables are particularly compact. They must be handled with care to avoid damaging the cable or its connector.

The TL-EW300 is specifically designed for this purpose. Shimano lists it amongst the tools required for assembling its components fitted with the EW-SD300 system.

Using this tool makes it easier to:

• the installation of a new Di2 cable;
• replacing an electrical cable;
• disconnecting a Di2 component;
• fitting a Di2 drivetrain;
• maintenance and diagnostic procedures.

Compatible with EW-SD300 wiring

It is essential not to confuse the two generations of Di2 cabling Shimano.

The TL-EW300 Y7HE40000 is designed for the EW-SD300. Shimano stocks the TL-EW02 Y6VE16000 separately, which is intended for the older EW-SD50 cable set.

This distinction is important when working on a Di2 ‘ Shimano ’ drivetrain.

A particularly useful tool for the 12-speed Di2 system

The EW-SD300 cable is used in particular on recent generations of Shimano Di2 drivetrains. The TL-EW300 is therefore commonly associated with 12-speed Di2 set-ups.

The tool allows you to work on the electrical connections without applying excessive force directly to the cable. For a workshop or a cyclist who carries out their own maintenance on their electronic groupset, it is a compact yet very practical accessory.

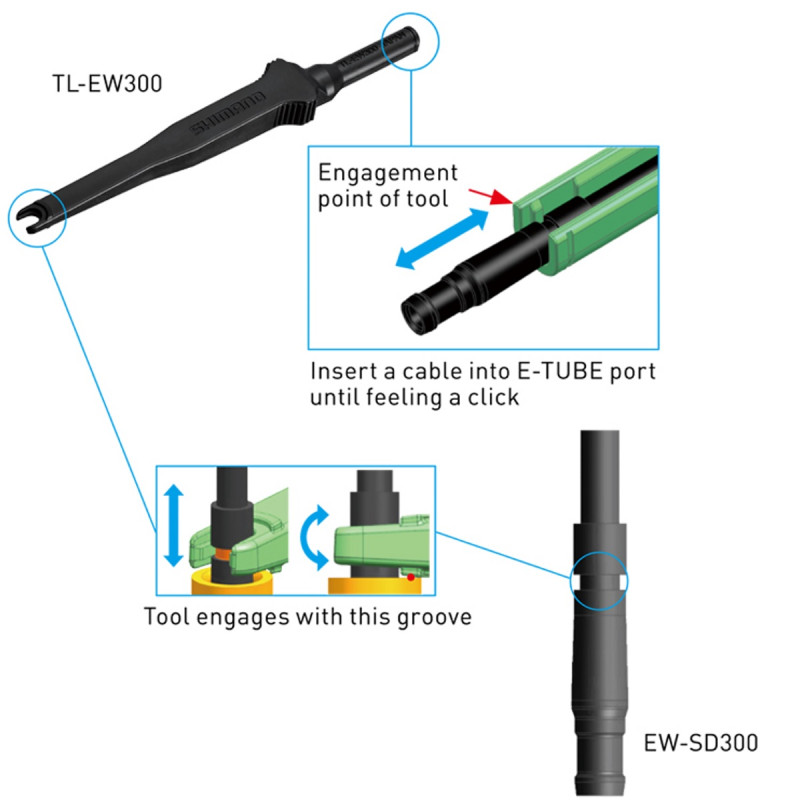

How do you use the TL-EW300?

It is simple to use:

1. Position the tool correctly on the EW-SD300 cable connector.
2. Hold the connector with the tool rather than pulling directly on the cable.
3. Insert or remove the connector in accordance with the procedure at Shimano.
4. Check that the connection is properly engaged before switching the Di2 system back on.

The main aim is to handle the connector rather than pulling on the cable itself.

For a Di2 installation, it is recommended that you follow the technical documentation Shimano specific to your groupset.

A small part that prevents costly mistakes

The TL-EW300 is a very affordable accessory, but it offers significant benefits: Di2 cables and their connectors are relatively specialised components.

Using a suitable tool helps minimise the risks associated with mishandling during assembly or disassembly. Specialist retailers emphasise in particular that the tool makes it easier to grip the cable and allows connection operations to be carried out without the risk of needlessly damaging the cable.
