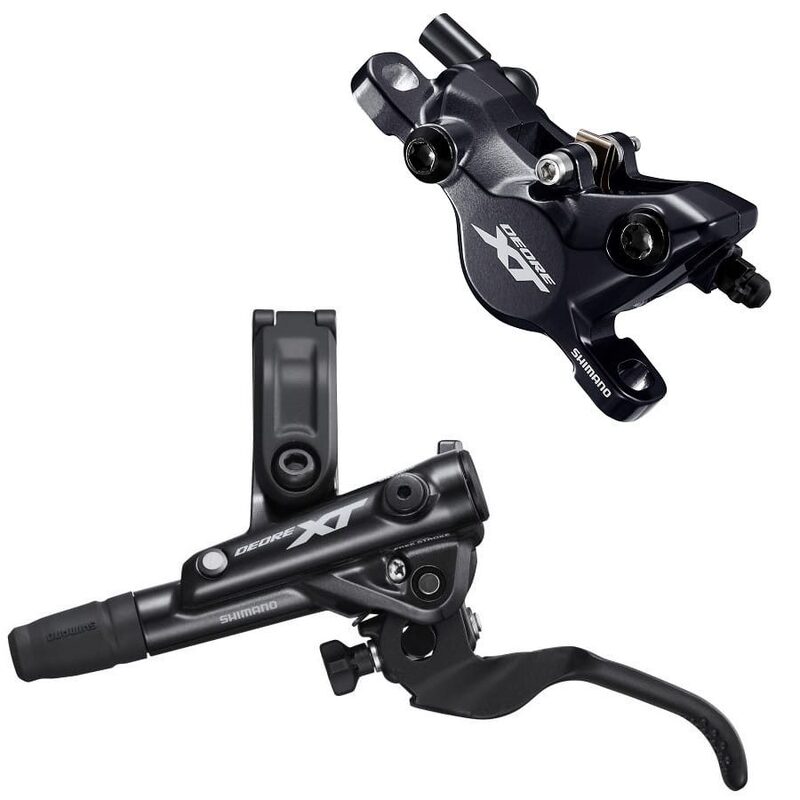

Shimano XT M8100 2-piston front MTB disc brake (without disc) - IM8100JLFPRA100

The Deore XT M8100Shimano (ref. IM8100JLFPRA100) is a 2-piston hydraulic front disc brake designed for cross-country, marathon and light trail mountain biking. Supplied without a disc, it allows you to choose the rotor best suited to your setup (160 mm, 180 mm or larger, depending on the frame and your riding style).

Part of the XT M8100 range, this brake incorporates high-end technologies Shimano, notably the Servo Wave system, which improves the initial responsiveness of the lever and progressively increases braking power for better control. The whole system is designed to offer an excellent balance between power, lightness and modulation on technical terrain.

Technical specifications

• Brand: Shimano
• Range: Deore XT M8100
• Part number: IM8100JLFPRA100
• Type: front hydraulic disc brake
• Number of pistons: 2
• Position: front
• Mounting: Post Mount
• Technology: Servo Wave Action
• Fluid: mineral oil Shimano
• Use: XC / marathon / trail
• Supplied: without disc
• Lever compatibility: Shimano, XT, SLX, Deore 12-speed

Key features

• Powerful and progressive braking suited to sport mountain biking
• Excellent modulation thanks to Servo Wave technology
• Ergonomic lever with reach adjustment
• Very good rigidity for precise control
• Shimano ’s proven reliability in extreme conditions
• Compatible with many modern MTB frames
• Simple maintenance with mineral oil Shimano

FAQ

Is this brake ready to fit?

It is usually supplied pre-assembled, but bleeding and adjustment may be required after fitting, depending on the bike’s configuration.

Is the disc included?

No, this model is sold without a rotor; you’ll need to choose one based on your riding style and your frame’s compatibility.

Is it suitable for enduro?

No, it is primarily optimised for XC and light trail riding. For serious enduro riding, Shimano recommends 4-piston brakes (M8120).

Can it be used with an SLX or Deore lever?

Yes, it’s compatible with Shimano hydraulic MTB levers from the same generation (XT / SLX / Deore).

How does it differ from a 4-piston brake?

The 2-piston version prioritises lightness and modulation, whilst the 4-piston version offers greater stopping power for long, technical descents.
