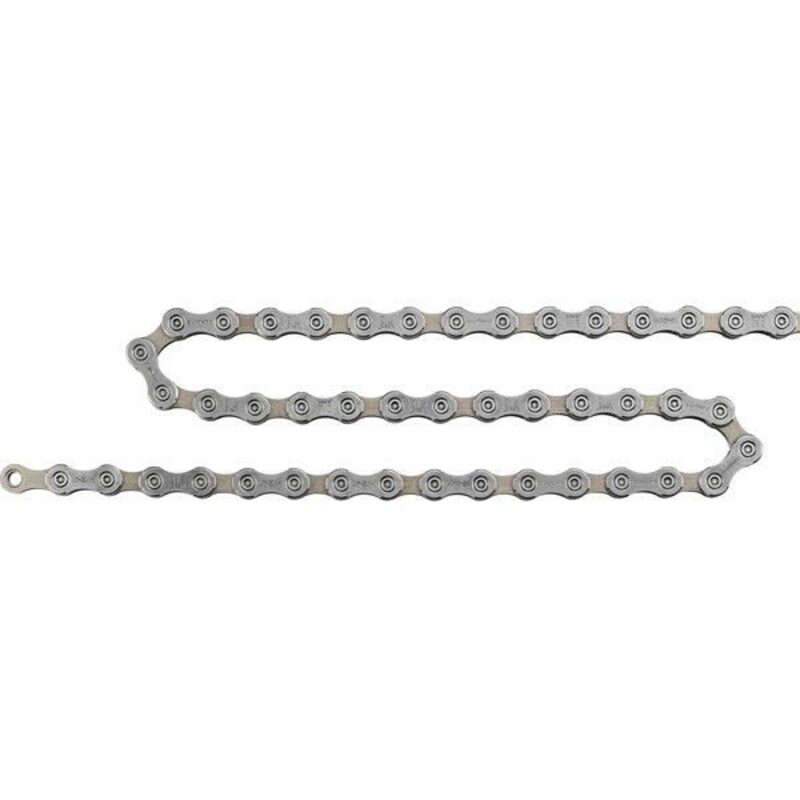

Shimano Deore SLX HG54 10-speed road and mountain bike chain – ICNHG54116I

The chain Shimano Deore CN-HG54 10-speed, reference ICNHG54116I, is a drive chain HG-X directional designed primarily for mountain bike drivetrains Shimano 10-speed. With its 116 links, with its Super Narrow design and specialised finish, it offers an excellent balance between smooth gear changes, reliability and durability for off-road use.

The CN-HG54 is particularly well suited to transmissions Shimano Deore and other compatible 10-speed MTB groupsets. Its directional design optimises the chain’s performance during both front and rear gear changes.

Chain Shimano Deore HG54 10-speed

The Shimano CN-HG54 features the technology HG-X, developed specifically for 10-speed MTB drivetrains. Shimano indicates that this directional design enables smoother gear changes, lighter operation and better overall performance from the transmission.

The chain has two sides, each optimised differently:

• the outer surface is designed to improve front-end gear changes ;
• The inner surface is optimised for rear gear changes.

This approach therefore requires a correct installation direction, an important point to bear in mind during installation.

116 links to suit different drivetrains

The reference ICNHG54116I corresponds to the version of the CN-HG54 offered with 116 links.

This length allows the chain to be adapted to a wide range of 10-speed drivetrain configurations. However, the chain must be shortened to the correct length during fitting if there are more than 116 links than are required.

The choice of the final chain length depends, in particular, on the number of teeth on the chainrings and the cassette, as well as the frame geometry.

A chain designed for 10-speed mountain bikes

Shimano officially presents the CN-HG54 as a 10-speed Deore MTB chain. It is intended for transmissions using the system Shimano It is 10V-compatible and features a design that helps to remove sludge.

Its design is particularly suitable for applications where the transmission is exposed to dust, mud and splashes:

• Cross-country mountain biking ;
• mountain bike ride ;
• challenging trekking ;
• a versatile bike fitted with a drivetrain Shimano Compatible with 10V.

Technology DYNA-SYS forms the 10-speed MTB drivetrain system Shimano in which this generation of components was developed. Shimano highlights, in particular, the stability of the transmission, the smoothness of gear changes and the efficiency of power delivery.

Compatibility with Deore, SLX and drivetrains Shimano 10V

The CN-HG54 is, first and foremost, a sound system Shimano Deore 10-speed mountain bike. It is suitable for transmissions Shimano 10V using a compatible HG-X chain.

In particular, it can be combined with components Shimano 10 speeds from different ranges, provided they meet the relevant specifications.

Please note: The abbreviation ‘SLX’ in certain catalogues or product data sheets may refer to compatibility with a transmission Shimano 10V, but the CN-HG54 is officially listed by Shimano such as a Deore MTB chain. It is therefore best to present the product as a Shimano Deore CN-HG54 10-speed, compatible with drivetrains Shimano 10V, rather than as an SLX chain in the strict sense.

A chain suitable for certain 10V road drivetrains

The CN-HG54 is primarily designed for mountain biking. It can, however, be used on certain drivetrains road Shimano Compatible with 10-speed systems, subject to compliance with the system specifications.

For a 10V road drivetrain, it is recommended that you check the part number of the original chain and ensure the groupset is compatible before replacement. Shimano In particular, it distinguishes between several families of 10-speed chains according to their intended use.

For commercial SEO, it is therefore best to keep ‘10V mountain bike’ as the main use, whilst indicating compatibility with certain 10-speed drivetrains where this has been confirmed.

Technical specifications

• Brand: Shimano
• Range: Deore
• Model: CN-HG54
• Manufacturer's reference: ICNHG54116I
• Number of gears: 10
• Number of links: 116
• Technology: HG-X
• Type: directional chain
• Main use: Mountain biking
• Compatibility: transmissions Shimano Compatible with 10-speed systems
• Colours: grey
• Approximate weight: 273 g for 114 maillons according to the documentation Shimano ;the 116-link version may therefore be slightly heavier.
• EAN code: 4524667722960
• Fastening: connecting pin Shimano
• Installation direction: Yes, a directional chain

Technology Shimano HG-X

Technology HG-X is designed to optimise the performance of a mountain bike drivetrain Shimano 10 speeds.

The chain has a specific design that optimises its performance during gear changes. Shimano indicates that this directional design promotes smoother gear changes and improved overall transmission efficiency.

The mud-resistant design is also an advantage for mountain biking, where the drivetrain can be heavily exposed to splashes and build-up of dirt.

Installation of the chain Shimano CN-HG54

Before installation, work out the length required based on your transmission.

As the CN-HG54 chain is directional, its direction must be respected. Shimano indicates that directional chains have a front side and a back side, and that they must be positioned correctly to ensure smooth gear changes.

Once the length has been determined, the chain can be shortened using a suitable chain shortener.

The CN-HG54 uses a connecting pin for assembly. Use the procedure and pin corresponding to the chain Shimano in question.

Once the chain has been fitted, check that it runs smoothly through the rear derailleur and shift through the gears several times to check that the drivetrain is working properly.

Maintenance and service life

The service life of a chain depends heavily on the conditions of use, the frequency of rides, the power output and, above all, maintenance.

To extend the service life of the CN-HG54:

• clean the chain regularly ;
• Remove any sludge and dust build-up ;
• lubricate it with a lubricant suitable for bicycles ;
• Avoid cycling for long periods with a very dry chain ;
• check the level of wear regularly ;
• Replace it before excessive wear causes damage to the cassette and chainrings.

Shimano offers, in particular, tools designed for the precise monitoring of chain wear, such as the TL-CN42.

In summary

The Shimano Deore CN-HG54 10-speed – ICNHG54116I is a channel 116-link directional HG-X chain, intended primarily for transmissions Mountain biking Shimano 10 speeds. Its specialised design optimises gear changes and helps to clear out sludge, whilst its precise alignment allows the transmission’s full performance potential to be realised.

Offering excellent value for money, the CN-HG54 is a suitable choice for replacing a worn chain on a gearbox Shimano Deore or another 10-speed compatible set-up.
